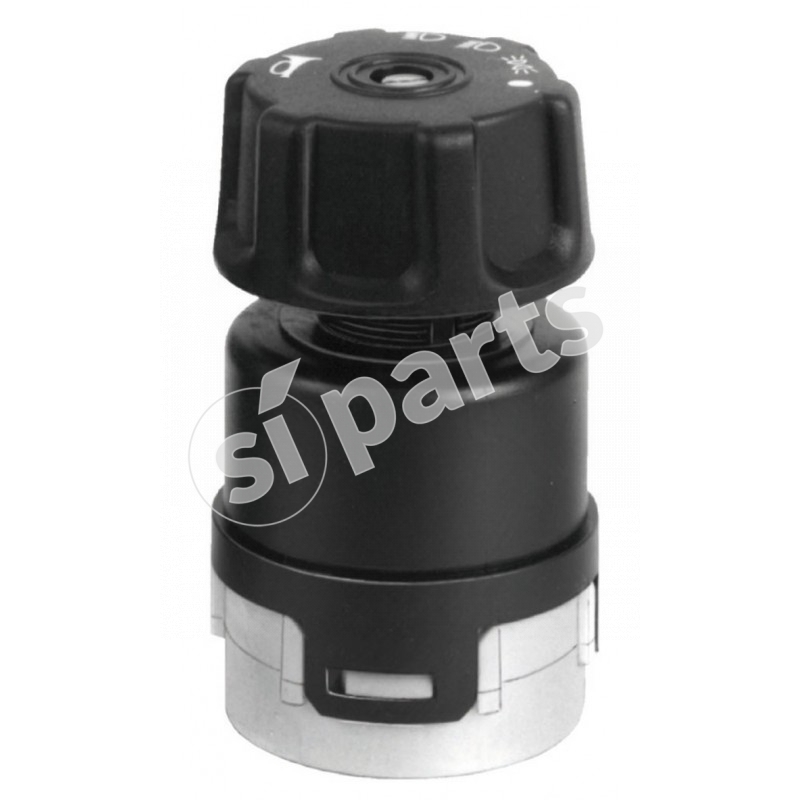

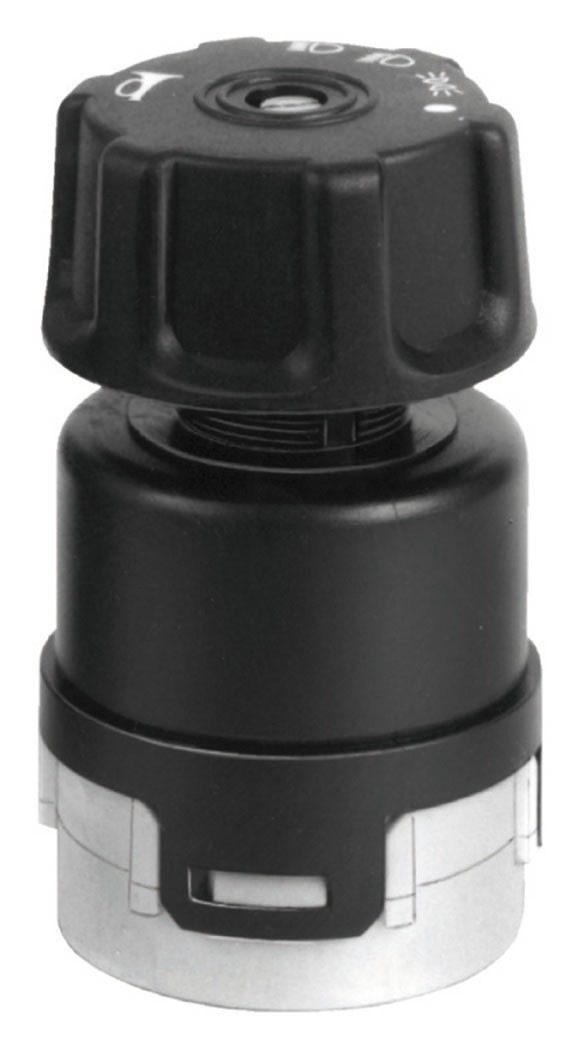

The image shown here is for illustrative purposes only.
SWITCH
Code: 23.113.000.11
Doc. Code: 23-113-000-11
€46.75
Tax excluded
(57.04 € Tasse incluse)
Quantity
- SSL 100% secure website
- Fast shipping with national and international couriers
description

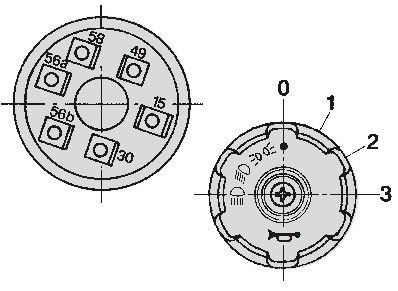

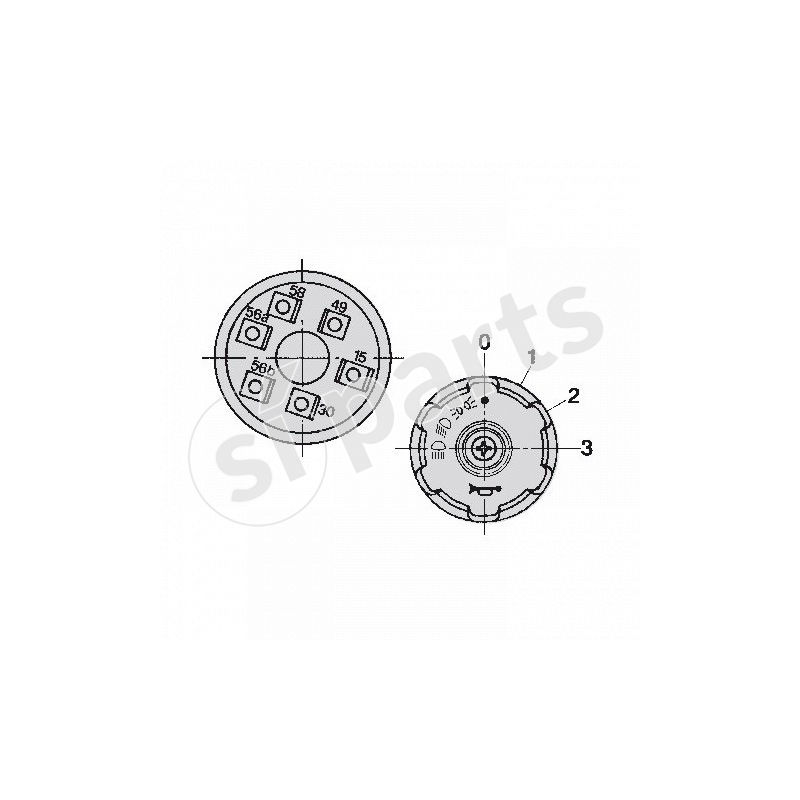

| key position | connection | max current 12v | max connec. time | function |
|---|---|---|---|---|
| 0 | ||||
| 1 | 15-58/57 | 20 a | inf. | parking lights |
| 2 | 15-58/57 | 15 a | inf. | parking lights/low beams |
| 2 | 15-56/b | 15 a | inf. | |
| 3 | 15-58/57 | 15 a | inf. | parking lights/high beams |
| 3 | 15-56/a | 15 a | inf. | |
| 30-49 | 7 a | 1 min. | horn |

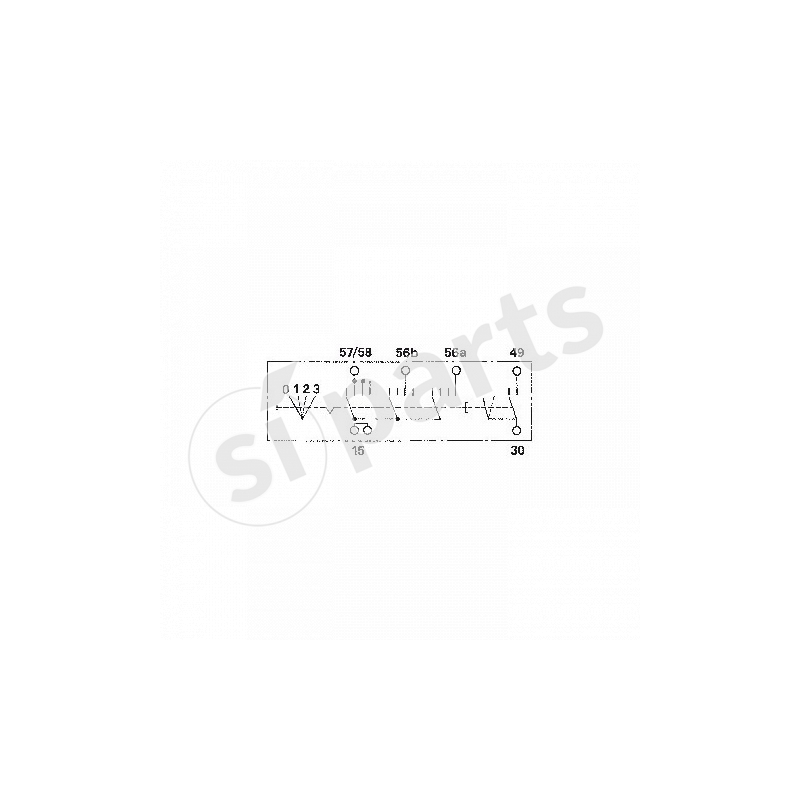

switch type
light switch with bipolar horn push button 30-49
