The image shown here is for illustrative purposes only.

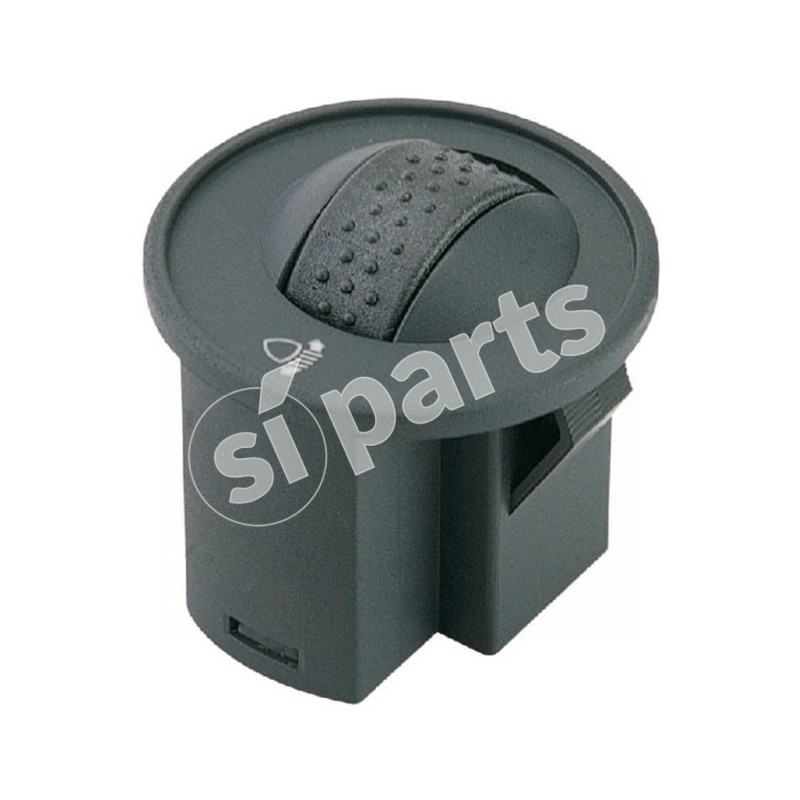

THUMBWHEEL POTENTIOMETER DEVICE
Code: 23.0164.0000.01
Doc. Code: 23-0164-0000-01
€77.60
Tax excluded
(94.67 € Tasse incluse)
Quantity
- SSL 100% secure website
- Fast shipping with national and international couriers
description
pc housing - mineral fi lled pa wheel - terminal board
with 4 ways mqs amp integrated connector suitable for
amp mqs 50402 3022dc male connector - white colour
laser engraved icons.

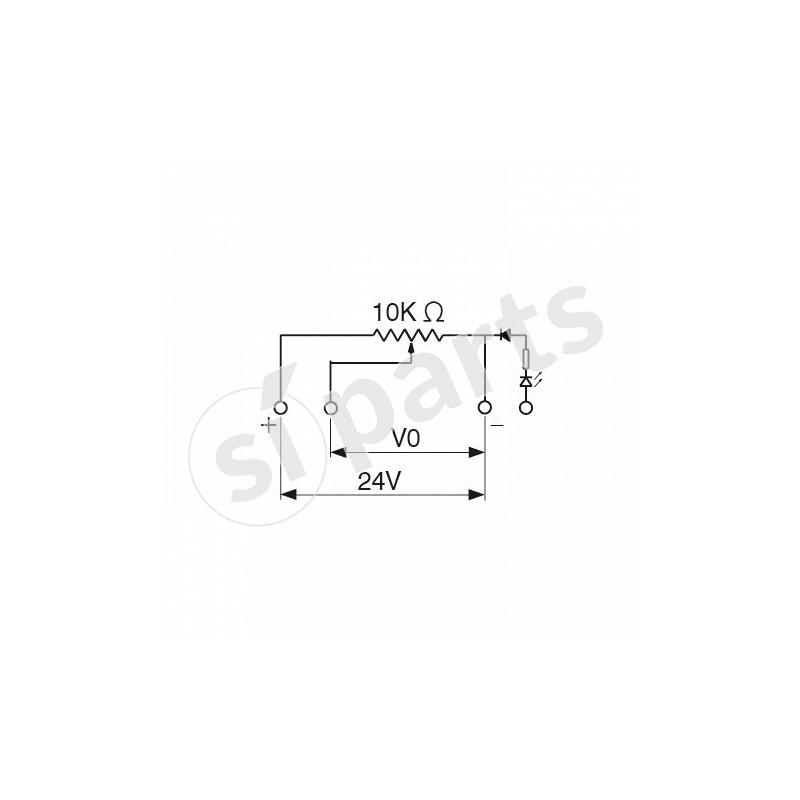

voltage values v at the ends of the circuit
0° v0< 1,9v
110° 22.1v potentiometer features:
ohmic tolerance: ±20%
mechanical tolerance: ±2.1°
(measured on the wheel)
electric tolerance: ±9°
(measured on the wheel)
end resistance <50ù
dynamic noise <3%
with 4 ways mqs amp integrated connector suitable for
amp mqs 50402 3022dc male connector - white colour
laser engraved icons.
voltage values v at the ends of the circuit
0° v0< 1,9v
110° 22.1v potentiometer features:
ohmic tolerance: ±20%
mechanical tolerance: ±2.1°
(measured on the wheel)
electric tolerance: ±9°
(measured on the wheel)
end resistance <50ù
dynamic noise <3%
version led
green
rated voltage
24v
