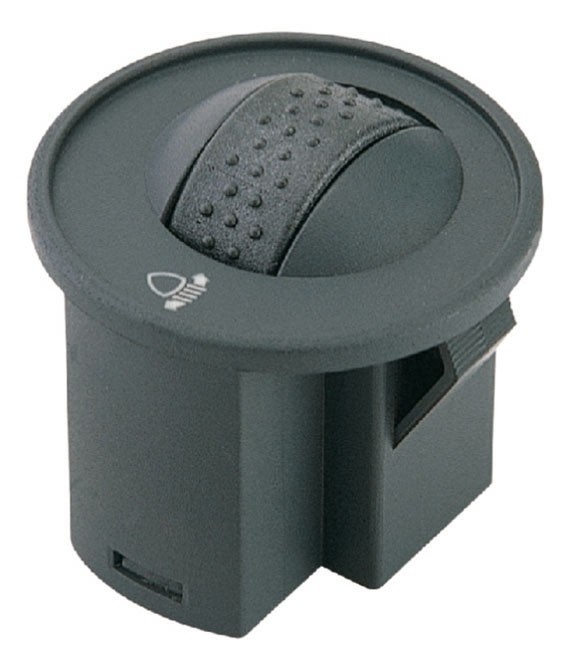

CIAM PRODUCTS- Original product
CONTROL
description
pc housing - mineral fi lled pa wheel - terminal board
with 4 ways mqs amp integrated connector suitable for
amp mqs 50402 3022dc male connector - white colour
laser engraved icons.

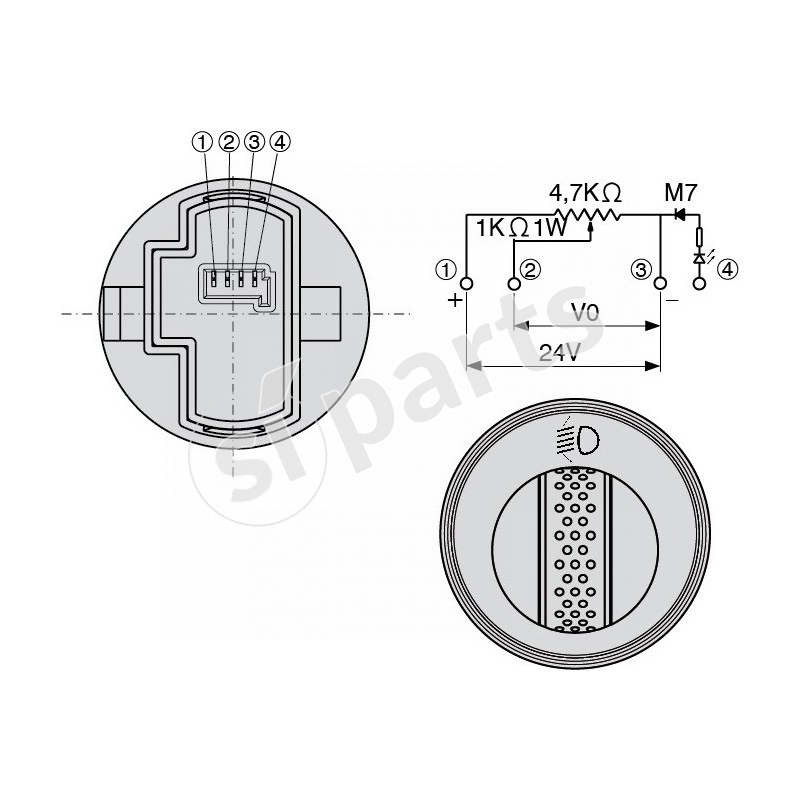

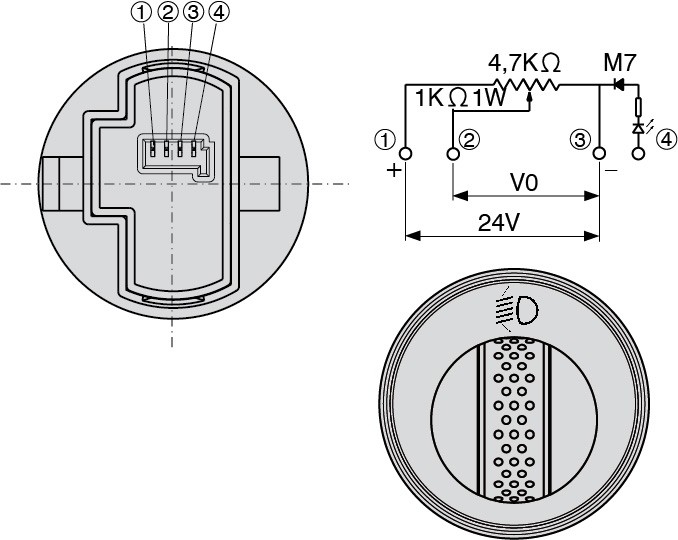

voltage values v at the ends of the circuit
0° v0< 1,9v
110° 22.1v potentiometer features:
ohmic tolerance: ±20%
mechanical tolerance: ±2.1°
(measured on the wheel)
electric tolerance: ±9°
(measured on the wheel)
end resistance <50ù
dynamic noise <3%
with 4 ways mqs amp integrated connector suitable for
amp mqs 50402 3022dc male connector - white colour
laser engraved icons.
voltage values v at the ends of the circuit
0° v0< 1,9v
110° 22.1v potentiometer features:
ohmic tolerance: ±20%
mechanical tolerance: ±2.1°
(measured on the wheel)
electric tolerance: ±9°
(measured on the wheel)
end resistance <50ù
dynamic noise <3%
version led
green
rated voltage
24v
APPLICATIONS
Components for access platforms telescopic - cranes
Telehandlers
Forklift trucks
Earth moving machines
Trucks tractors - trailers
Agricultural vehicles
Combines
Mixer wagons
Fire fighting - rescue vehicles
Camper & caravan
Motorcycles - quad components
Electric vehicles - golf cart
Can-bus boat global control system
Ambulances - emergency vehicles
Defense vehicles
1027614
Code: 23.0184.0000.02
Doc. Code: 23-0184-0000-02
Pack 30 pieces.
