CIAM PRODUCTS- Original product

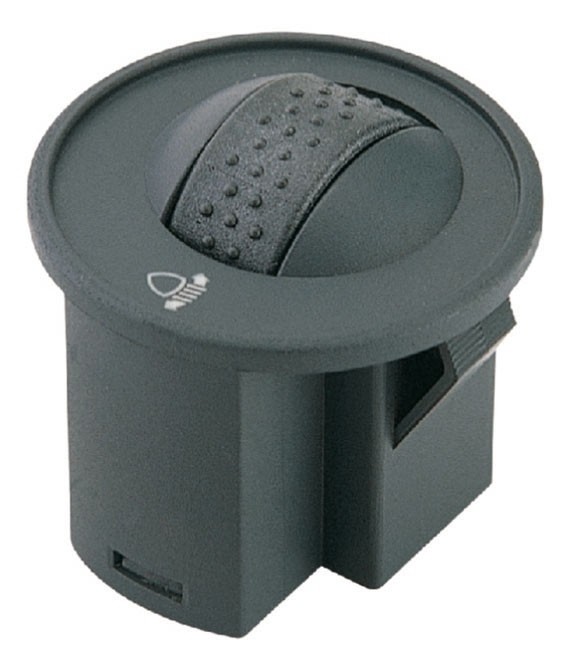

Description
Pc housing - mineral fi lled pa wheel - terminal board
with 4 ways mqs amp integrated connector suitable for
amp mqs 50402 3022dc male connector - white colour
laser engraved icons.

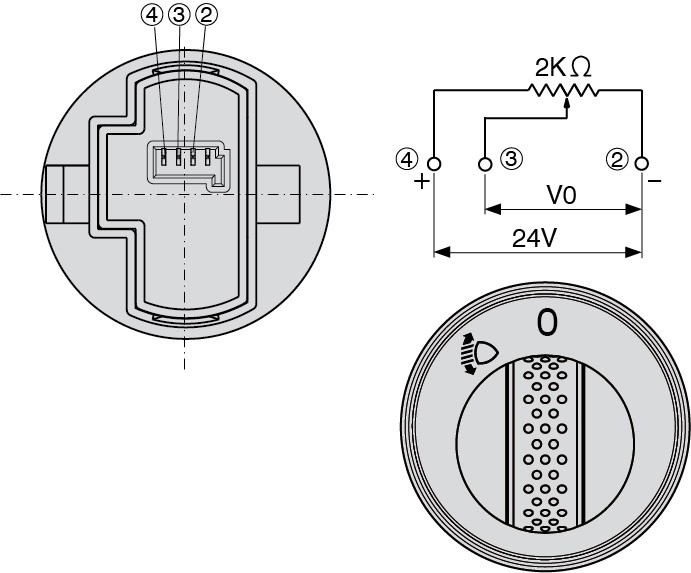

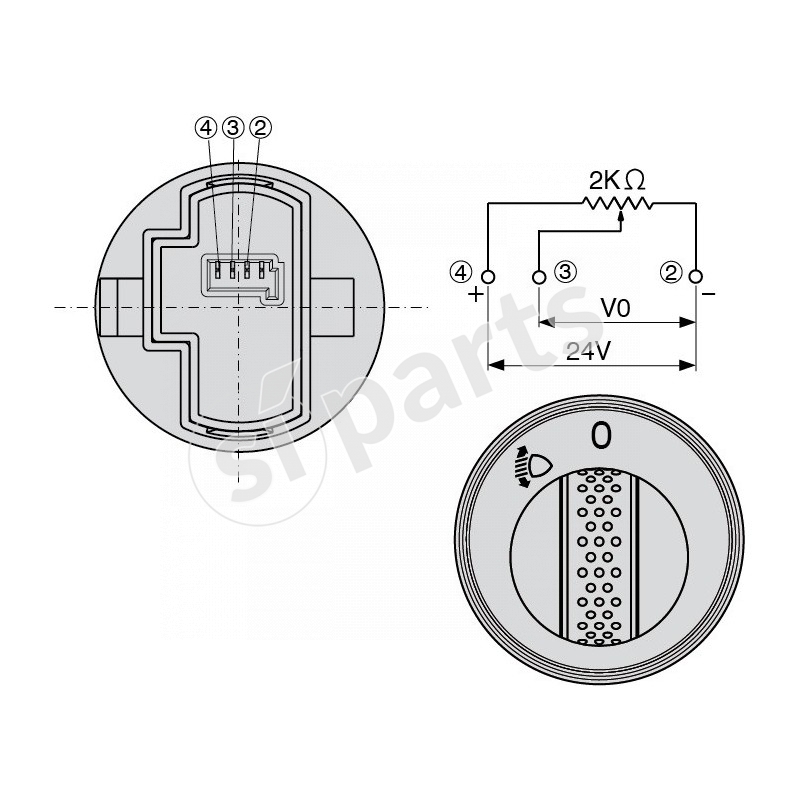

Voltage values V at the ends of the circuit
0° V0< 1,9V
110° 22.1V Potentiometer features:
Ohmic tolerance: ±20%
Mechanical tolerance: ±2.1°
(Measured on the wheel)
Electric tolerance: ±9°
(Measured on the wheel)
End resistance <50Ù
Dynamic noise <3%
with 4 ways mqs amp integrated connector suitable for
amp mqs 50402 3022dc male connector - white colour
laser engraved icons.
Voltage values V at the ends of the circuit
0° V0< 1,9V
110° 22.1V Potentiometer features:
Ohmic tolerance: ±20%
Mechanical tolerance: ±2.1°
(Measured on the wheel)
Electric tolerance: ±9°
(Measured on the wheel)
End resistance <50Ù
Dynamic noise <3%
VERSION LED
GREEN
RATED VOLTAGE
24V
APPLICATIONS
Components for access platforms telescopic - cranes
Telehandlers
Forklift trucks
Earth moving machines
Trucks tractors - trailers
Agricultural vehicles
Combines
Mixer wagons
Fire fighting - rescue vehicles
Camper & caravan
Motorcycles - quad components
Electric vehicles - golf cart
Can-bus boat global control system
Ambulances - emergency vehicles
Defense vehicles
1027660
Code: 23.0208.0000.01
Doc. Code: 23-0208-0000-01
