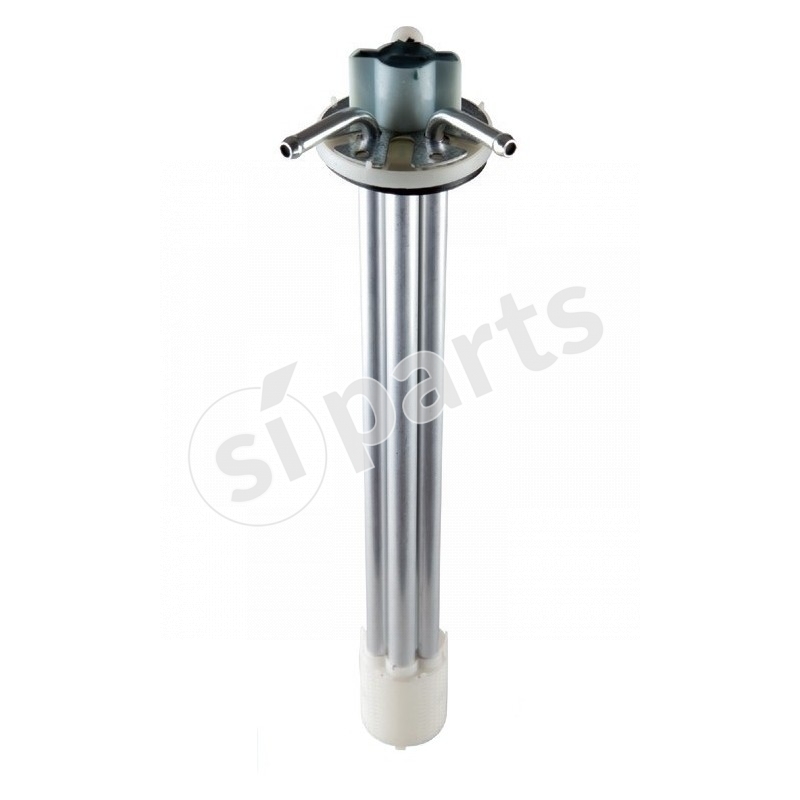

FLOATING FUEL LEVEL SENSOR

COBO (Original product)
1028971

Code: 29.1004.0000.01

Doc. Code: 29-1004-0000-01

€110.62
tax excluded

(134.96 € tax incl.)

Quantity

Add to Wishlist
  • SSL 100% secure website SSL 100% secure website
  • Fast shipping with national and international couriers Fast shipping with national and international couriers
Sito sicuro | Pagamento sicuro
Description Rotary or fi xed intake and return pipes
Intake fi lter with 0.8mm meshes
Integrated electrical connection S/SEAL 3 pins
Compatible with all existing òhmic scales
Possibility of customizing the òhmic values
FUEL LEVELRESISTANCE (ohm)
0315-345
1/4185-225
1/2108-128
4/4>=7
LENGTH MM
201-300
HEIGHT TANK RESERVE MM
0-100
LEVEL ZERO HIGH MM
0-100
HEIGHT TANK 1/4 MM
0-100
HEIGHT TANK 1/2 MM
101-200
HEIGHT TANK 3/4 MM
101-200
HEIGHT TANK 4/4 MM
201-300
LENGTH MM DETAIL
290
HEIGHT TANK RESERVE MM DETAIL
70
SENDER TYPE
WITHOUT SPRING
POSITION AND TYPE OF PIPES
CENTER - B
LH - A
NUMBER PIPES
2
TECHNOLOGY
FLOATING<
LEVEL ZERO HIGH MM DETAIL
55
HEIGHT TANK 1/4 MM DETAIL
100
HEIGHT TANK 1/2 MM DETAIL
140
HEIGHT TANK 3/4 MM DETAIL
200
HEIGHT TANK 4/4 MM DETAIL
245
FLANGE MATERIAL
TECHNOPOLYMER
PIPE MATERIAL
ALUMINIUM
POWER SUPPLY VOLTAGE V
9-28
MAX LOAD
70Ma
APPLICATIONS
Components for access platforms telescopic - cranes
Telehandlers
Forklift trucks
Earth moving machines
Trucks tractors - trailers
Agricultural vehicles
Combines
Mixer wagons
Fire fighting - rescue vehicles
Camper & caravan
Motorcycles - quad components
Electric vehicles - golf cart
Can-bus boat global control system
Ambulances - emergency vehicles
Defense vehicles
1028971
