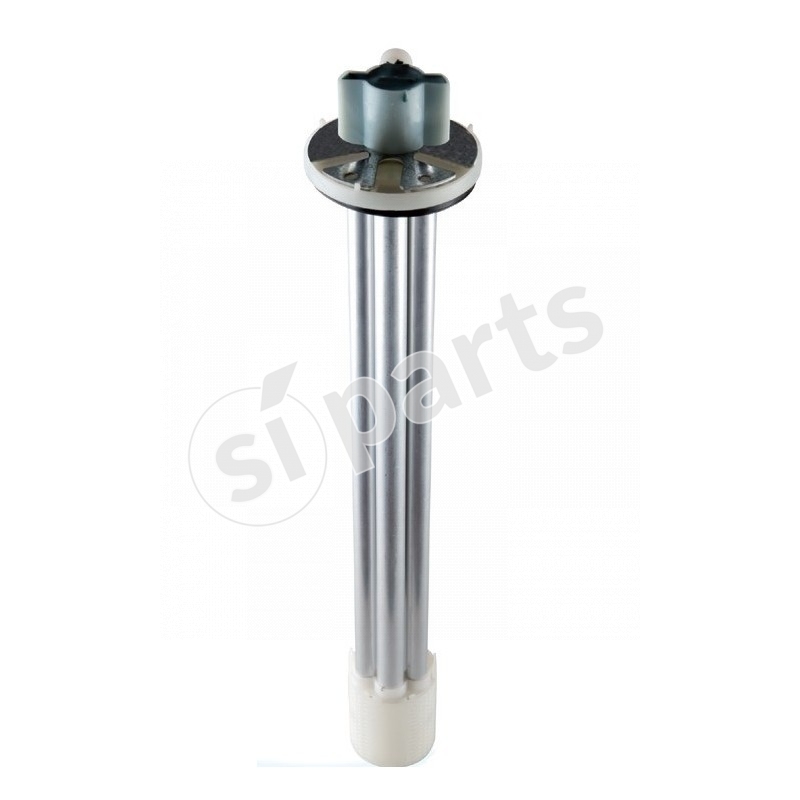

The image shown here is for illustrative purposes only.
FUEL LEVEL SENDER
Code: 29.1034.0000.01
Doc. Code: 29-1034-0000-01
€96.00
Tax excluded
(117.12 € Tasse incluse)
Quantity
- SSL 100% secure website
- Fast shipping with national and international couriers
description
rotary or fi xed intake and return pipes
intake fi lter with 0.8mm meshes
integrated electrical connection s/seal 3 pins
compatible with all existing òhmic scales
possibility of customizing the òhmic values
intake fi lter with 0.8mm meshes
integrated electrical connection s/seal 3 pins
compatible with all existing òhmic scales
possibility of customizing the òhmic values
| fuel level | resistance (ohm) |
|---|---|
| 0 | 315-345 |
| 1/4 | 185-225 |
| 1/2 | 108-128 |
| 4/4 | >=7 |
length mm
101-200
height tank reserve mm
0-100
level zero high mm
0-100
height tank 1/4 mm
0-100
height tank 1/2 mm
0-100
height tank 3/4 mm
0-100
height tank 4/4 mm
101-200
length mm detail
164
height tank reserve mm detail
45
sender type
without spring
technology
floating<
level zero high mm detail
35
height tank 1/4 mm detail
55
height tank 1/2 mm detail
75
height tank 3/4 mm detail
95
height tank 4/4 mm detail
120
flange material
technopolymer
pipe material
aluminium
power supply voltage v
9-28
max load
70ma
