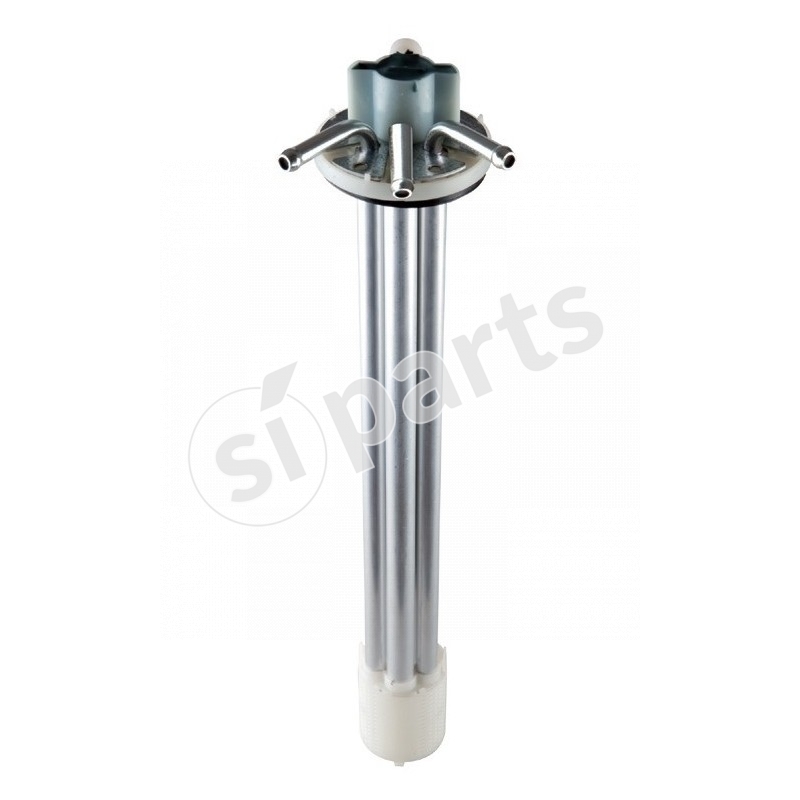

The image shown here is for illustrative purposes only.
LEVEL SENDER
Code: 29.1108.0000.01
Doc. Code: 29-1108-0000-01
€165.94
Tax excluded
(202.45 € Tasse incluse)
Quantity
- SSL 100% secure website
- Fast shipping with national and international couriers
description
rotary or fi xed intake and return pipes
intake fi lter with 0.8mm meshes
integrated electrical connection s/seal 3 ways
compatible with all existing òhmic scales
possibility of customizing the òhmic values
intake fi lter with 0.8mm meshes
integrated electrical connection s/seal 3 ways
compatible with all existing òhmic scales
possibility of customizing the òhmic values
| fuel level | resistance (ohm) |
|---|---|
| 0 | 315-345 |
| 1/4 | 185-225 |
| 1/2 | 108-128 |
| 4/4 | >=7 |
length mm
501-600
height tank reserve mm
0-100
level zero high mm
0-100
height tank 1/4 mm
101-200
height tank 1/2 mm
201-300
height tank 3/4 mm
401-500
height tank 4/4 mm
501-600
length mm detail
553
height tank reserve mm detail
85
sender type
with spring
number pipes
3
position and type of pipes
lh - a
center - b
rh - a
technology
floating<
level zero high mm detail
70
height tank 1/4 mm detail
175
height tank 1/2 mm detail
280
height tank 3/4 mm detail
420
height tank 4/4 mm detail
510
flange material
technopolymer
pipe material
aluminium
power supply voltage v
9-28
max load
70ma
