  • Original product

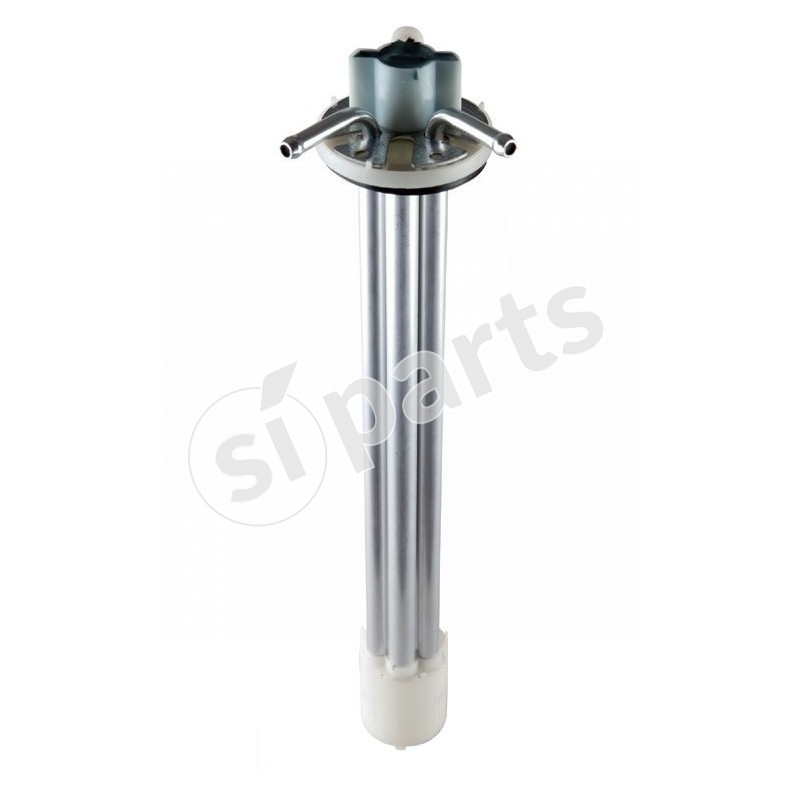

FUEL LEVEL SENDER

COBO (Original product)
1029115

Code: 29.1379.0000.01

Doc. Code: 29-1379-0000-01

€165.59
tax excluded

(202.02 € tax incl.)

Quantity

Add to Wishlist
  • SSL 100% secure website SSL 100% secure website
  • Fast shipping with national and international couriers Fast shipping with national and international couriers
Sito sicuro | Pagamento sicuro
Description Rotary or fi xed intake and return pipes
Intake fi lter with 0.8mm meshes
Integrated electrical connection S/SEAL 3 pins
Compatible with all existing òhmic scales
Possibility of customizing the òhmic values
FUEL LEVELRESISTANCE (ohm)
00-7
1/433-41
1/266-83
4/4175-215
LENGTH MM
501-600
HEIGHT TANK RESERVE MM
0-100
LEVEL ZERO HIGH MM
0-100
HEIGHT TANK 1/4 MM
101-200
HEIGHT TANK 1/2 MM
201-300
HEIGHT TANK 3/4 MM
401-500
HEIGHT TANK 4/4 MM
501-600
LENGTH MM DETAIL
553
HEIGHT TANK RESERVE MM DETAIL
85
SENDER TYPE
WITH SPRING
NUMBER PIPES
2
POSITION AND TYPE OF PIPES
LH - A
CENTER - B
TECHNOLOGY
FLOATING<
LEVEL ZERO HIGH MM DETAIL
70
HEIGHT TANK 1/4 MM DETAIL
175
HEIGHT TANK 1/2 MM DETAIL
280
HEIGHT TANK 3/4 MM DETAIL
420
HEIGHT TANK 4/4 MM DETAIL
510
FLANGE MATERIAL
TECHNOPOLYMER
PIPE MATERIAL
ALUMINIUM
POWER SUPPLY VOLTAGE V
9-28
MAX LOAD
70mA
APPLICATIONS
Components for access platforms telescopic - cranes
Telehandlers
Forklift trucks
Earth moving machines
Trucks tractors - trailers
Agricultural vehicles
Combines
Mixer wagons
Fire fighting - rescue vehicles
Camper & caravan
Motorcycles - quad components
Electric vehicles - golf cart
Can-bus boat global control system
Ambulances - emergency vehicles
Defense vehicles
1029115
