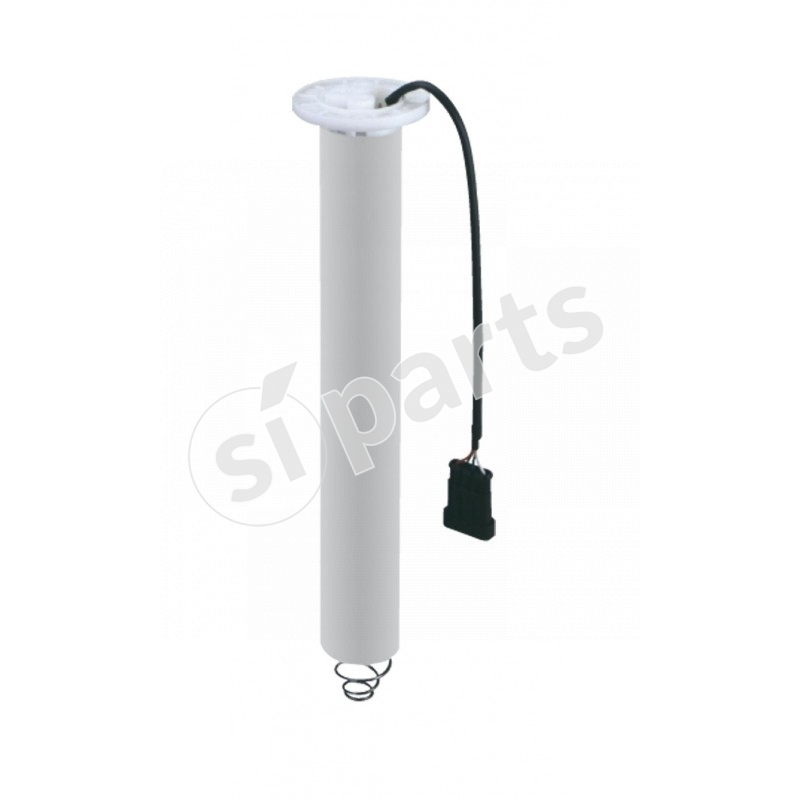

The image shown here is for illustrative purposes only.
FUEL LEVEL SENDER
Code: 29.0425.0000.01
Doc. Code: 29-0425-0000-01
€105.79
Tax excluded
(129.06 € Tasse incluse)
Quantity
- SSL 100% secure website
- Fast shipping with national and international couriers
description
| fuel level | resistance (ohm) |
|---|---|
| 0 | 335-285 |
| 1/4 | |
| 1/2 | 135-100 |
| 4/4 | 25-0 |
height mm
701-800
height tank reserve mm
101-200
height tank 1/4 mm
301-400
height tank 1/2 mm
501-600
height tank 3/4 mm
601-700
height tank 4/4 mm
701-800
level zero high mm
0-100
height mm detail
800
height tank reserve mm detail
195
height tank 1/4 mm detail
318
height tank 1/2 mm detail
503
height tank 3/4 mm detail
639
height tank 4/4 mm detail
760
sender type
with spring
power supply voltage v
12
technology
capacitive
flange material
technopolymer
pipe material
aluminium
fuel
diesel
absorbed current
20 ma
max load on the positive signal w
12v - 1,2w
24v - 3w
level zero high mm detail
20
