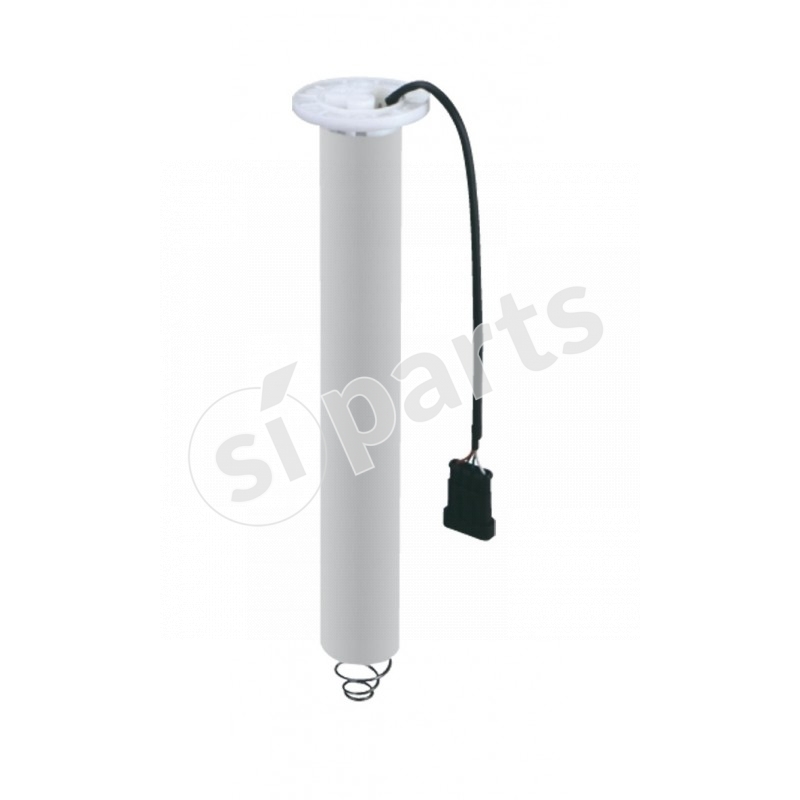

The image shown here is for illustrative purposes only.
FUEL LEVEL SENDER
Code: 29.0552.0000.01
Doc. Code: 29-0552-0000-01
€126.31
Tax excluded
(154.1 € Tasse incluse)
Quantity
- SSL 100% secure website
- Fast shipping with national and international couriers
description
| fuel level | resistance (ohm) |
|---|---|
| 0 | 335-285 |
| 1/4 | |
| 1/2 | 135-100 |
| 4/4 | 25-0 |
height mm
1101-1200
height tank reserve mm
101-200
height tank 1/4 mm
201-300
height tank 1/2 mm
501-600
height tank 3/4 mm
801-900
height tank 4/4 mm
1101-1200
level zero high mm
0-100
height mm detail
1150
height tank reserve mm detail
157
height tank 1/4 mm detail
293
height tank 1/2 mm detail
565
height tank 3/4 mm detail
838
height tank 4/4 mm detail
1110
power supply voltage v
24v
sender type
with spring
technology
capacitive
flange material
technopolymer
pipe material
aluminium
fuel
diesel
absorbed current
20 ma
max load on the positive signal w
12v - 1,2w
24v - 3w
level zero high mm detail
20
