The image shown here is for illustrative purposes only.

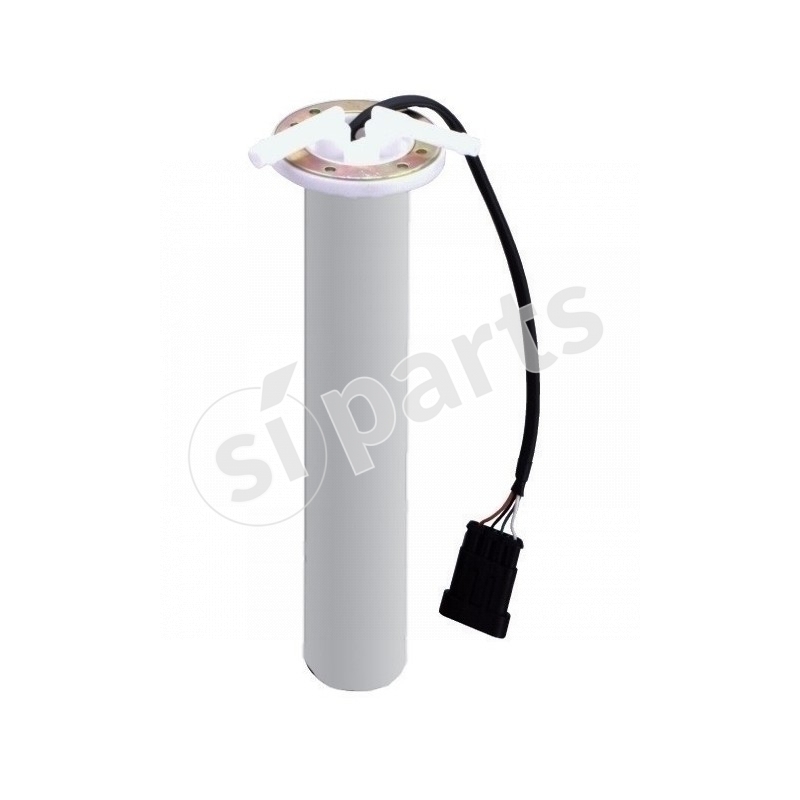

CAPACITIVE FUEL LEVEL
Code: 29.0576.0000.01
Doc. Code: 29-0576-0000-01
€112.51
Tax excluded
(137.26 € Tasse incluse)
Quantity
- SSL 100% secure website
- Fast shipping with national and international couriers
description
| fuel level | resistance (ohm) |
|---|---|
| 0 | 335 ÷ 285 |
| 1/4 | |
| 1/2 | 135 ÷ 100 |
| 4/4 | 25 ÷ 0 |
height mm
501-600
height tank reserve mm
0-100
height tank 1/4 mm
101-200
height tank 1/2 mm
201-300
height tank 3/4 mm
301-400
height tank 4/4 mm
501-600
level zero high mm
0-100
height mm detail
553
height tank reserve mm detail
63
height tank 1/4 mm detail
133
height tank 1/2 mm detail
263
height tank 3/4 mm detail
393
height tank 4/4 mm detail
513
power supply voltage v
24
sender type
with spring
number pipes
2
technology
capacitive
level zero high mm detail
20
flange material
technopolymer
pipe material
aluminium
fuel
diesel
absorbed current
20 ma
max load on the positive signal w
12v - 1,2w
24v - 3w
