The image shown here is for illustrative purposes only.

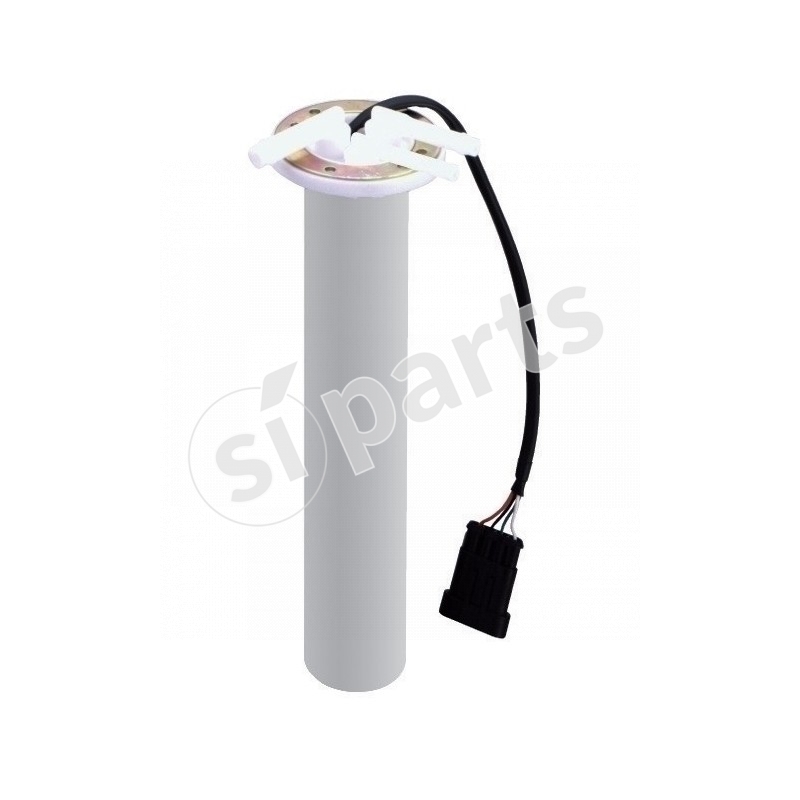

LEVEL SENDER
Code: 29.0636.0000.01
(0 € Tasse incluse)
Quantity
- SSL 100% secure website
- Fast shipping with national and international couriers
description
| fuel level | resistance (ohm) |
|---|---|
| 0 | 335 ÷ 285 |
| 1/4 | |
| 1/2 | 135 ÷ 100 |
| 4/4 | 25 ÷ 0 |
height mm
101-200
height tank reserve mm
0-100
height tank 1/4 mm
0-100
height tank 1/2 mm
0-100
height tank 3/4 mm
101-200
height tank 4/4 mm
101-200
level zero high mm
0-100
height mm detail
200
height tank reserve mm detail
38
height tank 1/4 mm detail
55
height tank 1/2 mm detail
90
height tank 3/4 mm detail
125
height tank 4/4 mm detail
160
power supply voltage v
12
sender type
without spring
number pipes
3
technology
capacitive
level zero high mm detail
20
flange material
technopolymer
pipe material
aluminium
fuel
diesel
absorbed current
20 ma
max load on the positive signal w
12v - 1,2w
24v - 3w
