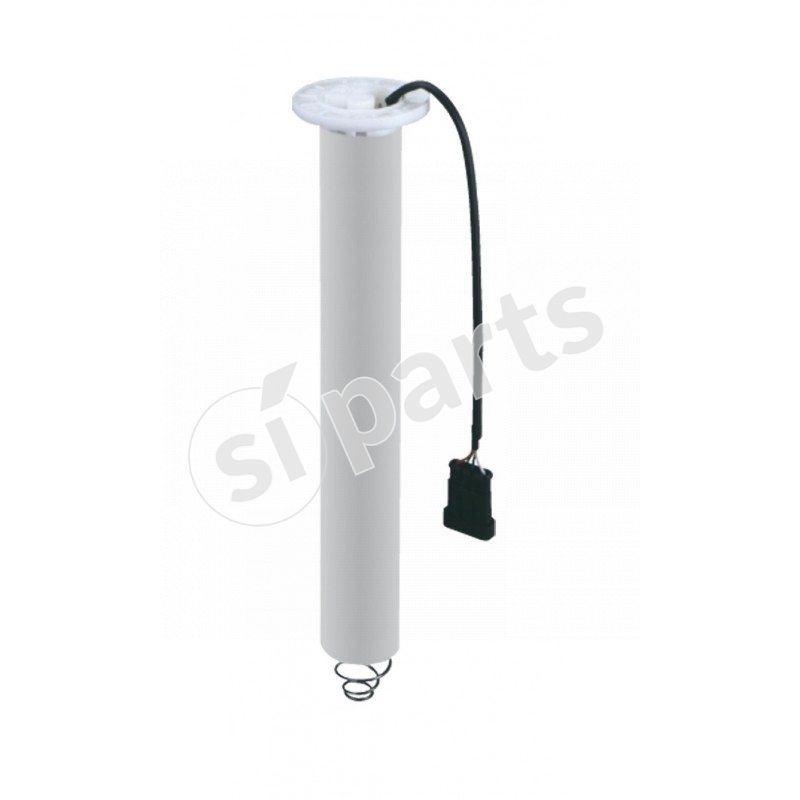

The image shown here is for illustrative purposes only.
LEVEL INDICATOR
Code: 29.330.000.01
Doc. Code: 29-330-000-01
€166.29
Tax excluded
(202.87 € Tasse incluse)
Quantity
- SSL 100% secure website
- Fast shipping with national and international couriers
description
| fuel level | resistance (ohm) |
|---|---|
| 0 | 335-285 |
| 1/4 | |
| 1/2 | 135-100 |
| 4/4 | 25-0 |
height mm
701-800
height tank reserve mm
0-100
height tank 1/4 mm
101-200
height tank 1/2 mm
301-400
height tank 3/4 mm
501-600
height tank 4/4 mm
701-800
level zero high mm
0-100
height mm detail
800
height tank reserve mm detail
75
height tank 1/4 mm detail
150
height tank 1/2 mm detail
315
height tank 3/4 mm detail
515
height tank 4/4 mm detail
760
power supply voltage v
12
sender type
without spring
technology
capacitive
flange material
technopolymer
pipe material
aluminium
fuel
diesel
absorbed current
20 ma
max load on the positive signal w
12v - 1,2w
24v - 3w
level zero high mm detail
20
