The image shown here is for illustrative purposes only.

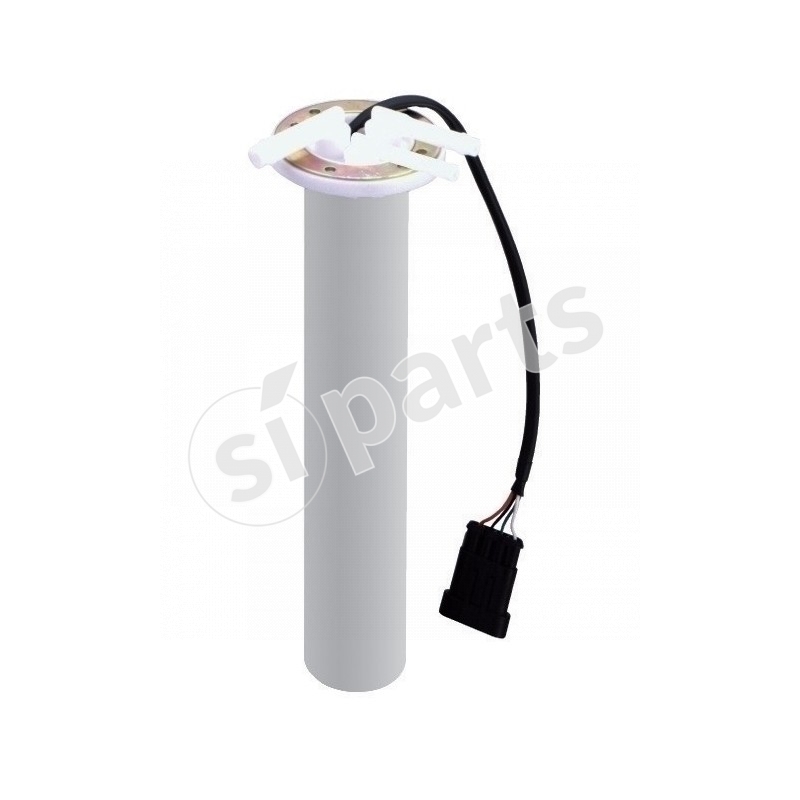

FUEL LEVEL SENDER
Code: 29.334.000.01
Doc. Code: 29-334-000-01
€131.26
Tax excluded
(160.14 € Tasse incluse)
Quantity
- SSL 100% secure website
- Fast shipping with national and international couriers
description
| fuel level | resistance (ohm) |
|---|---|
| 0 | 335 ÷ 285 |
| 1/4 | |
| 1/2 | 135 ÷ 100 |
| 4/4 | 25 ÷ 0 |
height mm
601-700
height tank reserve mm
0-100
height tank 1/4 mm
101-200
height tank 1/2 mm
301-400
height tank 3/4 mm
501-600
height tank 4/4 mm
601-700
level zero high mm
0-100
height mm detail
700
height tank reserve mm detail
60
height tank 1/4 mm detail
170
height tank 1/2 mm detail
340
height tank 3/4 mm detail
510
height tank 4/4 mm detail
660
power supply voltage v
24
sender type
with spring
number pipes
3
technology
capacitive
level zero high mm detail
20
flange material
technopolymer
pipe material
aluminium
fuel
diesel
absorbed current
20 ma
max load on the positive signal w
12v - 1,2w
24v - 3w
