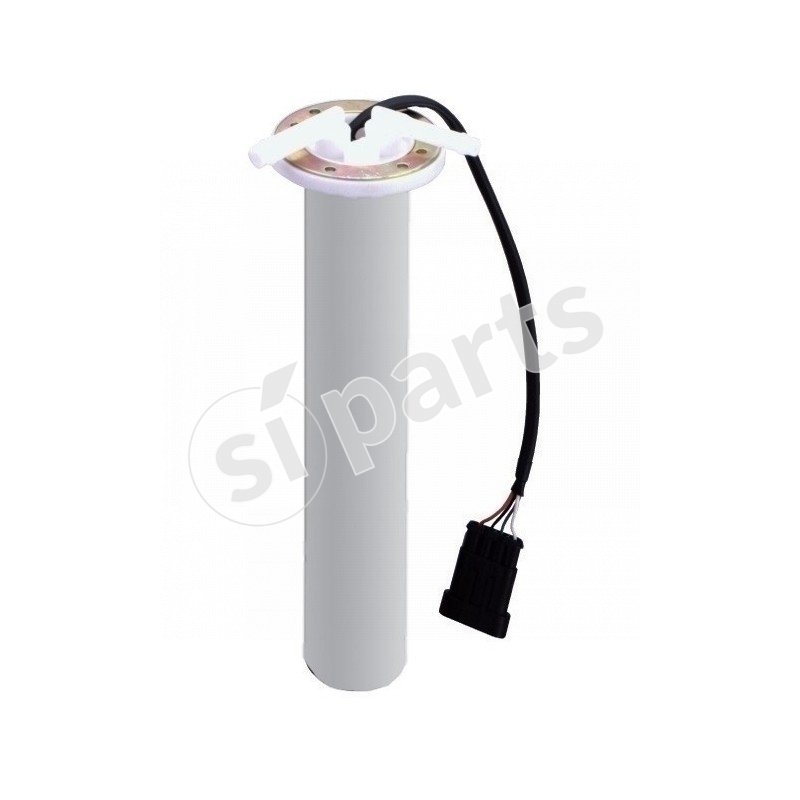

The image shown here is for illustrative purposes only.
FUEL LEVEL SENDERS
Code: 29.397.000.02
Doc. Code: 29-397-000-02
Pack 18 pieces.
€1,566.00
(€87.00 Cad.)
Tax excluded
(1910.52 € Tasse incluse)
Quantity
- SSL 100% secure website
- Fast shipping with national and international couriers
description
| fuel level | resistance (ohm) |
|---|---|
| 0 | 335 ÷ 285 |
| 1/4 | |
| 1/2 | 135 ÷ 100 |
| 4/4 | 25 ÷ 0 |
height mm
301-400
height tank reserve mm
0-100
height tank 1/4 mm
0-100
height tank 1/2 mm
101-200
height tank 3/4 mm
201-300
height tank 4/4 mm
201-300
level zero high mm
0-100
height mm detail
332
height tank reserve mm detail
40
height tank 1/4 mm detail
75
height tank 1/2 mm detail
150
height tank 3/4 mm detail
225
height tank 4/4 mm detail
292
power supply voltage v
12
sender type
without spring
number pipes
2
technology
capacitive
level zero high mm detail
20
flange material
technopolymer
pipe material
aluminium
fuel
diesel
absorbed current
20 ma
max load on the positive signal w
12v - 1,2w
24v - 3w
