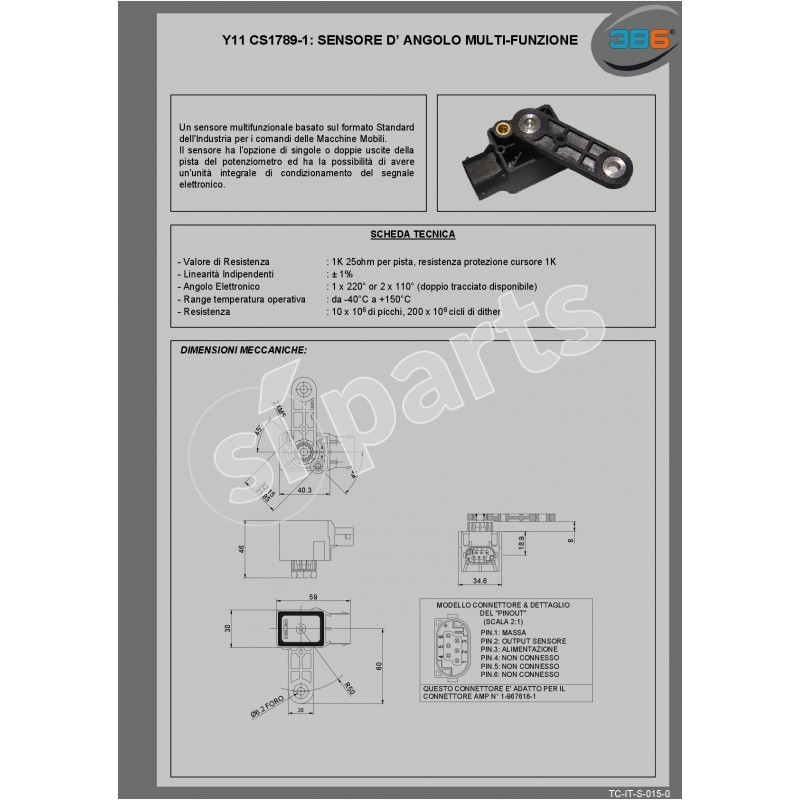

MULTI-FUNCTION CORNER SENSOR

3B6 (Original product)
Y11 CS1789-1

Code: Y11 CS1789-1

CONTACT US FOR MORE INFORMATION

Request quotation
Add to Wishlist
  • SSL 100% secure website SSL 100% secure website
  • Fast shipping with national and international couriers Fast shipping with national and international couriers
Sito sicuro | Pagamento sicuro
DescriptionA multifunctional sensor based on Industry Standard format for Mobile Machine controls.
The sensor has the option of single or double outputs of the potentiometer track and has the possibility of having an integral electronic rye conditioning unit.






RESISTANCE VALUE
1K 25ohm per track, 1K slider protection resistance
INDEPENDENT LINEARITIES
± 1%
ELECTRONIC CORNER
1 x 220° or 2 x 110° (double track available)
OPERATING TEMPERATURE RANGE





from -40°C to + 150°C
RESISTANCE


10 x 10^6 of peaks, 200 x 10^6 cycles of dither
APPLICATIONS
Components for access platforms telescopic - cranes
Telehandlers
Forklift trucks
Earth moving machines
Trucks tractors - trailers
Agricultural vehicles
Combines
Mixer wagons
Fire fighting - rescue vehicles
Camper & caravan
Motorcycles - quad components
Electric vehicles - golf cart
Can-bus boat global control system
Ambulances - emergency vehicles
Defense vehicles
