The image shown here is for illustrative purposes only.

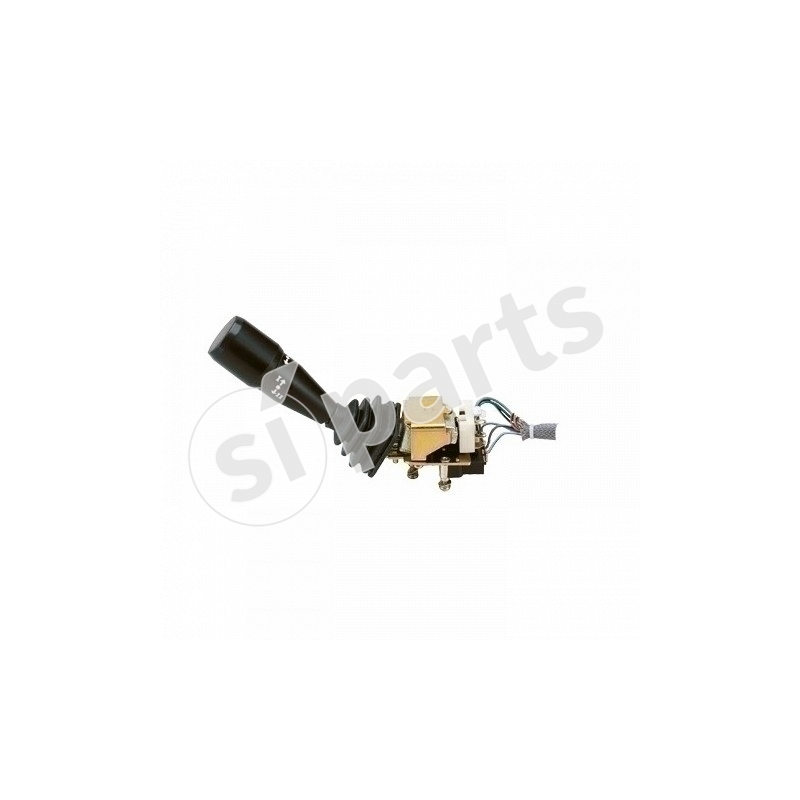

REVERSE SWITCH
Code: 01.0618.0000.01
Doc. Code: 01-0618-0000-01
€205.20
Tax excluded
(250.34 € Tasse incluse)
Quantity
- SSL 100% secure website
- Fast shipping with national and international couriers
description
| function | peak load 12v | peak load 24v |
|---|---|---|
| forward gear | 5a | 2,5a |
| neutral | 5a | 2,5a |
| reverse gear | 5a | 2,5a |
| horn | 5a | 2,5a |
connection length mm
101-200
length lever mm
101-200
steering height mm
0-100
fixing
dashboard
type
single
fitting position
lh
technology
microswitch

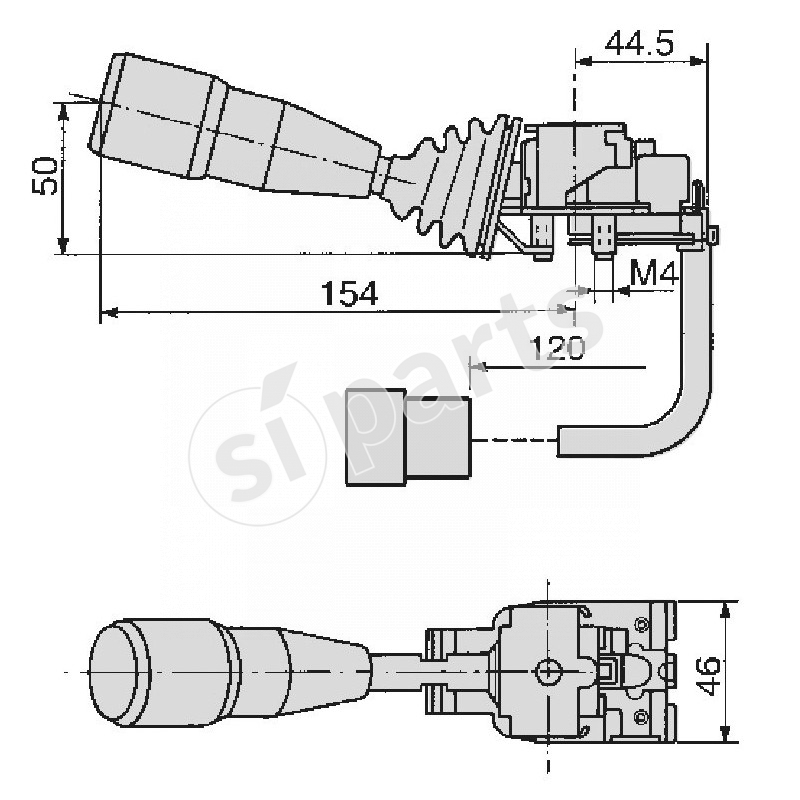

connection length mm detail
120
length lever mm detail
154
steering height mm detail
50
model type
serie 316
function - horn
attivo
function - forward gear
attivo
function - neutral
attivo
function - reverse gear
attivo
function - block
attivo
