The image shown here is for illustrative purposes only.
STEERING COLUMN SWITCH
Code: 01.0652.0500.01
Doc. Code: 01-0652-0500-01
€298.86
Tax excluded
(364.61 € Tasse incluse)
Quantity
- SSL 100% secure website
- Fast shipping with national and international couriers

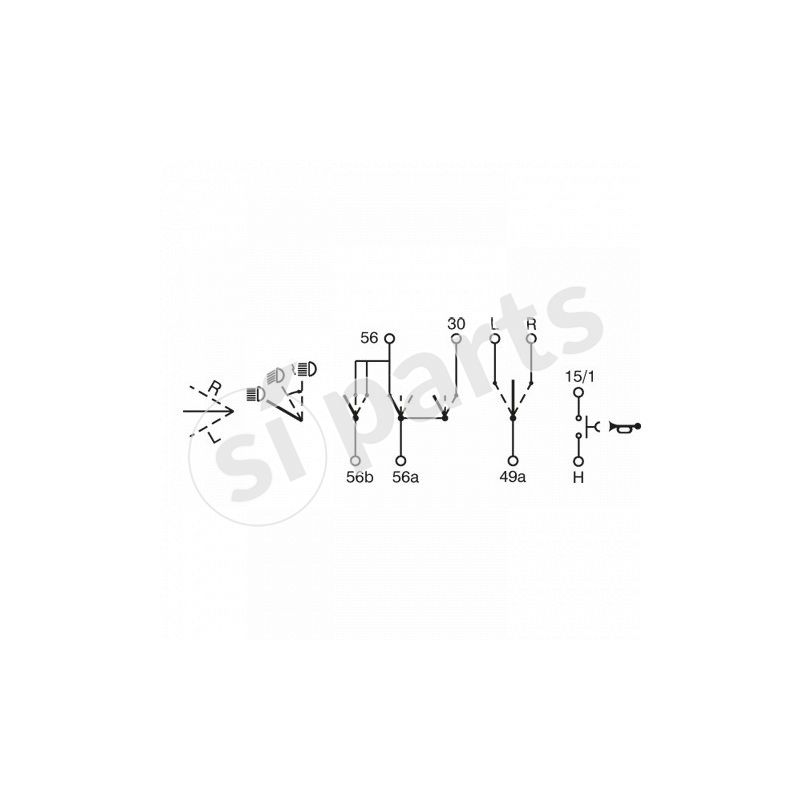

description
| function | peak load 12v | peak load 24v |
|---|---|---|
| horn | 3a | 1,5a |
| low beam | 15a | 7a |
| high beam | 6a | 3a |
| flashing | 6a | 3a |
| direction | 6a | 3a |

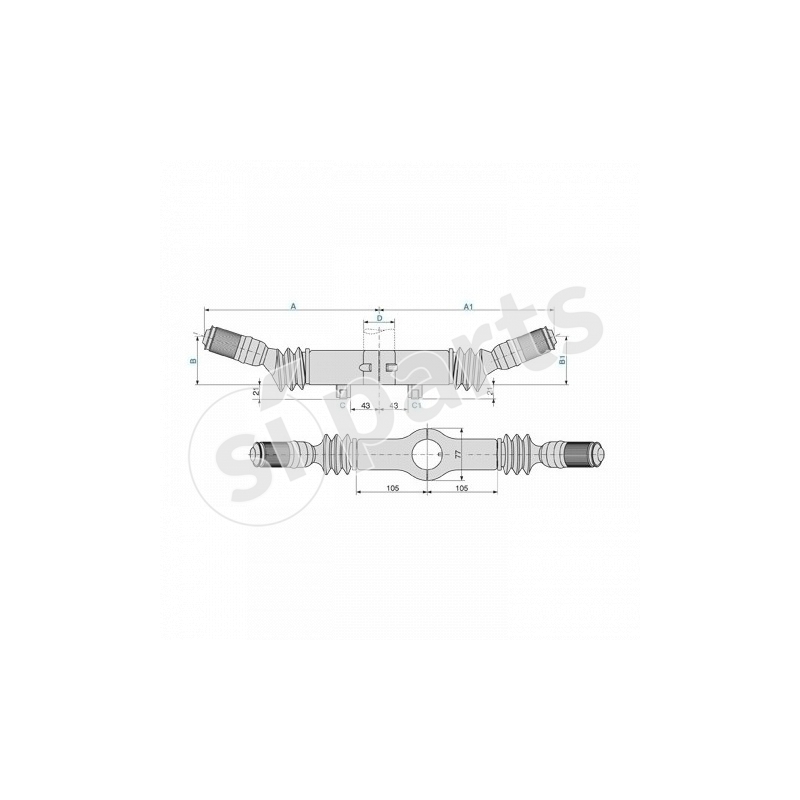

length lever mm
201-300
steering height mm
0-100
type
single
fitting position
lh
technology
frontali in aria
type connection
deutsch 12 vie
length lever mm detail
260
steering height mm detail
72
model type
serie 2000
function - horn
attivo
function - low beam
attivo
function - high beam
attivo
function - flashing
attivo
function - direction
attivo
function - rientro automatico
attivo
