The image shown here is for illustrative purposes only.

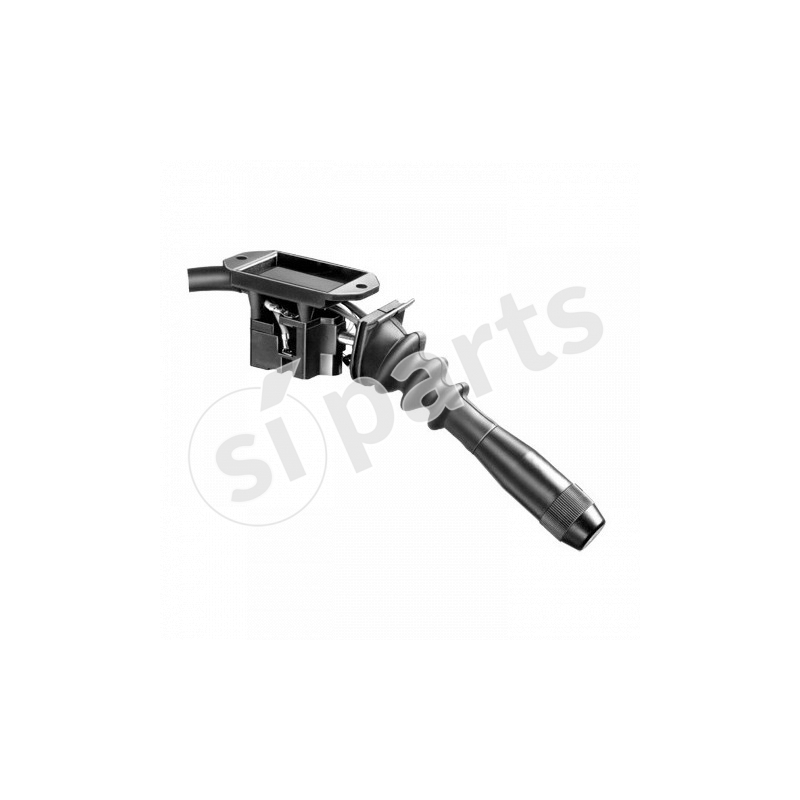

REVERSE SWITCH
Code: 01.0657.0600.01
Doc. Code: 01-0657-0600-01
€106.15
Tax excluded
(129.5 € Tasse incluse)
Quantity
- SSL 100% secure website
- Fast shipping with national and international couriers
description

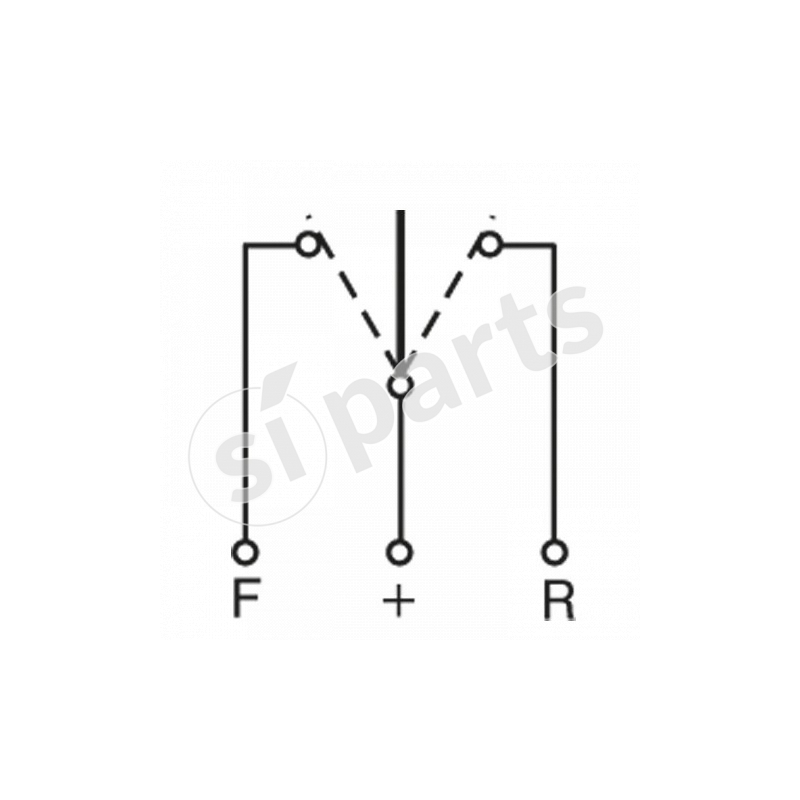

| function | peak load 12v | peak load 24v |
|---|---|---|
| forward gear | 8a | 5a |
| neutral | 8a | 5a |
| reverse gear | 8a | 5a |
| low gear | 8a | 5a |
| fast gear | 8a | 5a |
| speed 1 | 3a | 2a |

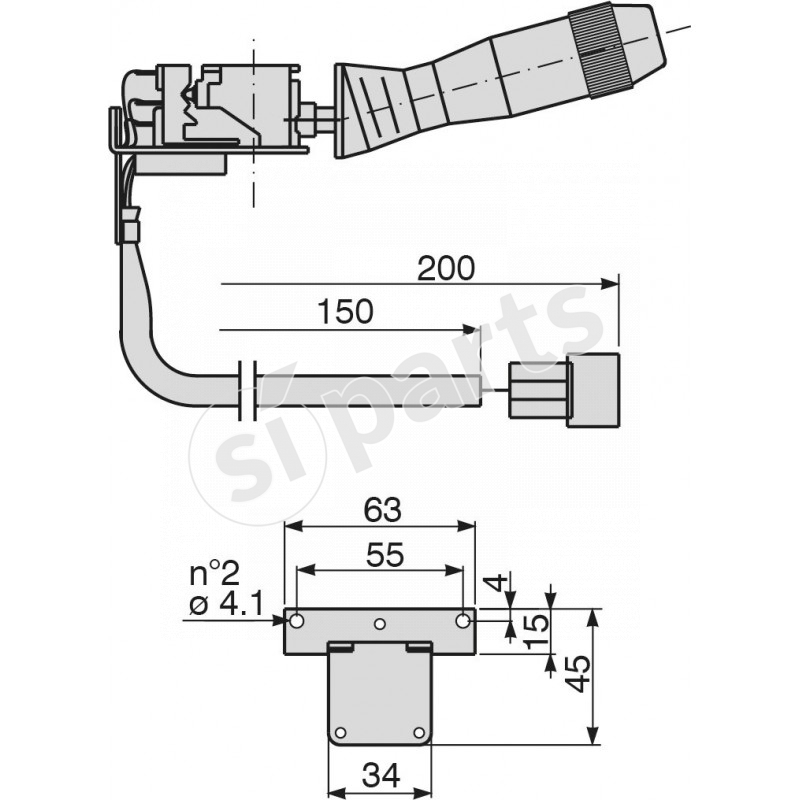

length lever mm
101-200
steering height mm
0-100
connection length mm
101-200
fixing
dashboard
type
single
fitting position
rh
technology
frontali in aria
length lever mm detail
181
steering height mm detail
46
connection length mm detail
200
type of interior lever
metallic
lever covering
polyamide + functions symbols
type of cap
neoprene rubber
color of cap
black
protection housing
polyamide
model type
serie 203
function - forward gear
attivo
function - reverse gear
attivo
