The image shown here is for illustrative purposes only.

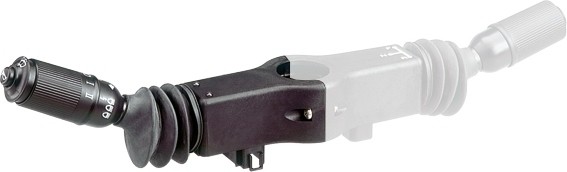

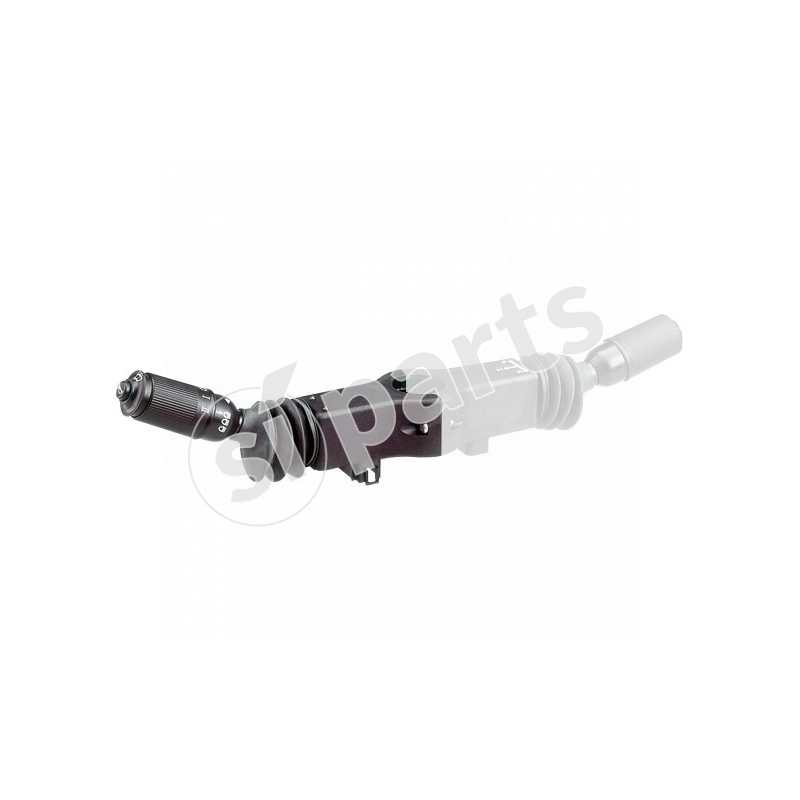

REVERSE SWITCH
Code: 01.0738.0600.01
€260.05
Tax excluded
(317.26 € Tasse incluse)
Quantity
- SSL 100% secure website
- Fast shipping with national and international couriers
description
| function | peak load 12v | peak load 24v |
|---|---|---|
| forward gear | 200ma | 100ma |
| neutral | 200ma | 100ma |
| reverse gear | 200ma | 100ma |
| speed 1 | 200ma | 100ma |
| speed 2 | 200ma | 100ma |
| switch | 3a | 1,5a |
length lever mm
201-300
steering height mm
0-100
type
single
fitting position
lh
technology
frontali in aria
type connection
deutsch 12 vie
length lever mm detail
262
steering height mm detail
58
model type
serie 2000
function - forward gear
attivo
function - neutral
attivo
function - reverse gear
attivo
function - block
attivo
function - speed 1
attivo
function - speed 2
attivo
function - switch
attivo
