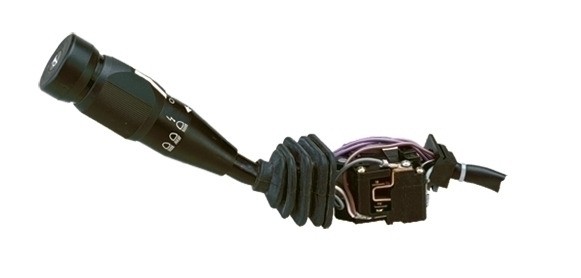

The image shown here is for illustrative purposes only.
SHIFTER PLASTIC BEZEL SPARE PP
Code: 01.0757.0000.01
Doc. Code: 01-0757-0000-01
€237.60
Tax excluded
(289.87 € Tasse incluse)
Quantity
- SSL 100% secure website
- Fast shipping with national and international couriers
description

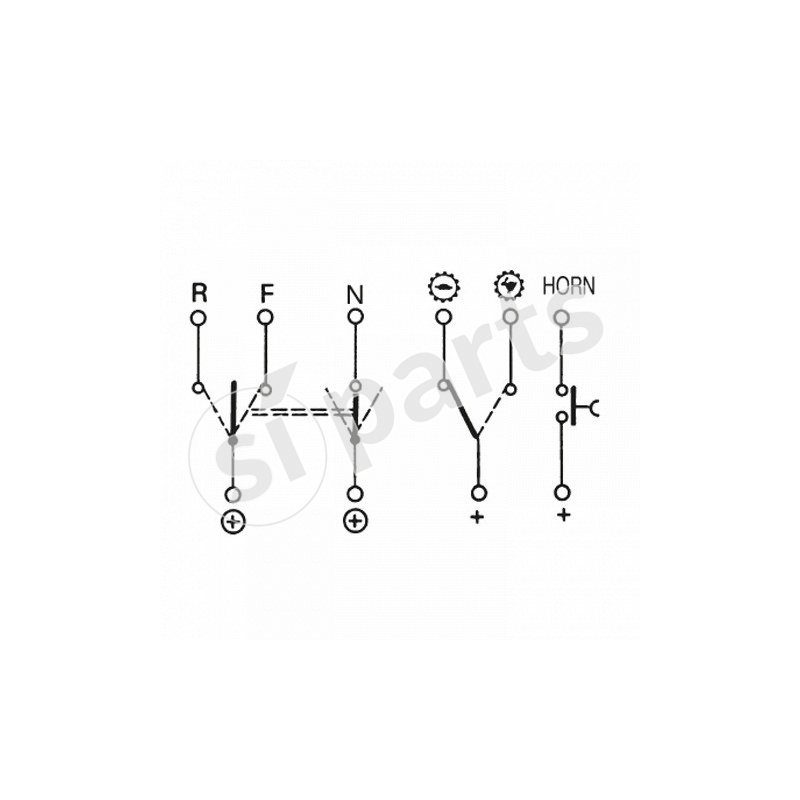

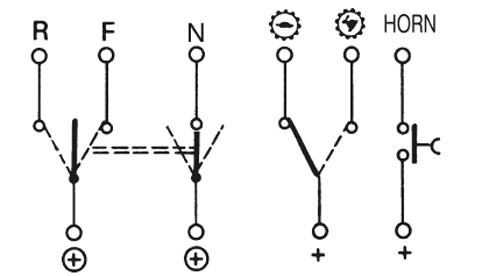

| function | peak load 12v | peak load 24v |
|---|---|---|
| horn | 5a | 3a |
| forward gear | 8a | 5a |
| reverse gear | 8a | 5a |
| low gear | 8a | 5a |
| fast gear | 8a | 5a |
| gear speed | 3a | 2a |
| neutral | 8a | 5a |

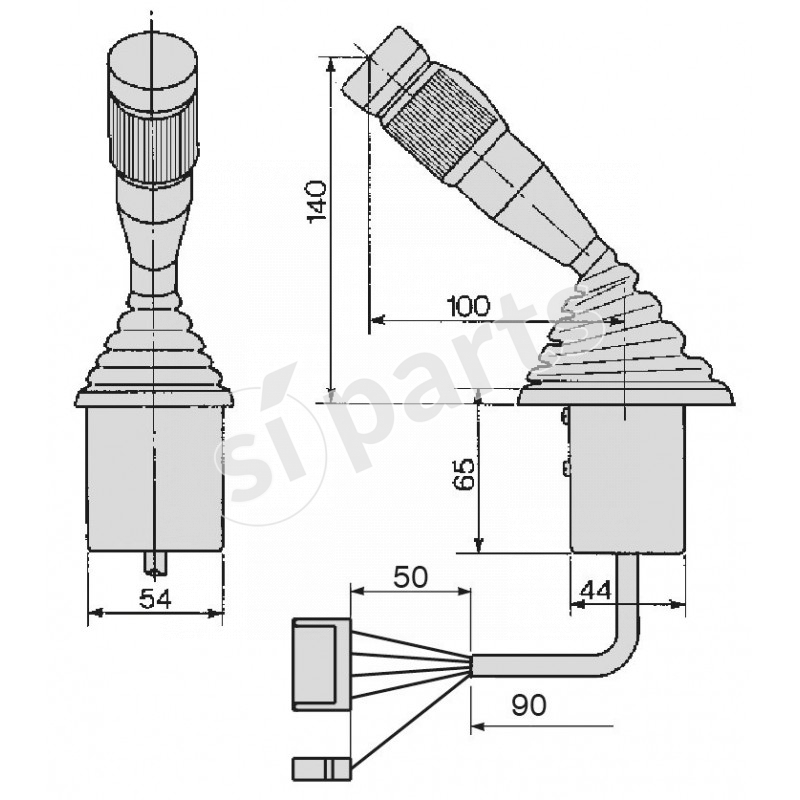

length lever mm
0-100
steering height mm
101-200
connection length mm
101-200
fixing
dashboard
type
single
fitting position
lh
technology
frontali in aria
length lever mm detail
100
steering height mm detail
140
connection length mm detail
140
model type
serie 240
function - horn
attivo
function - fast gear
attivo
function - low gear
attivo
function - gear speed
attivo
function - forward gear
attivo
function - neutral
attivo
function - reverse gear
attivo
function - block
attivo
