The image shown here is for illustrative purposes only.
SHIFTERS
Code: 01.0806.0000.01
Doc. Code: 01-0806-0000-01
€172.80
Tax excluded
(210.82 € Tasse incluse)
Quantity
- SSL 100% secure website
- Fast shipping with national and international couriers
description

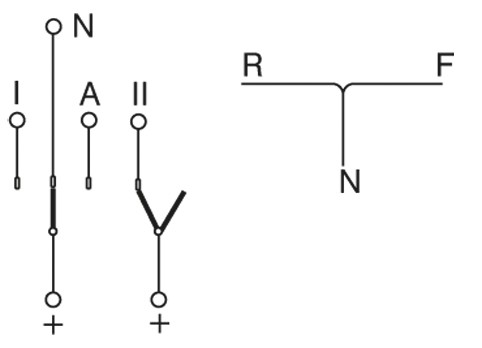

| function | peak load 12v | peak load 24v |
|---|---|---|
| forward gear | 8a | 5a |
| neutral | 8a | 5a |
| reverse gear | 8a | 5a |
| low gear | 8a | 5a |
| fast gear | 8a | 5a |
| speed 1 | 3a | 2a |

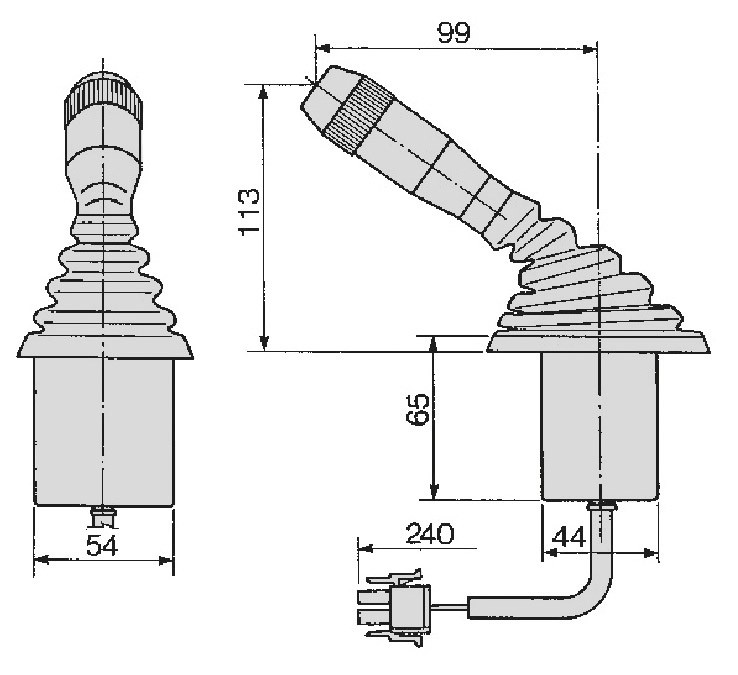

length lever mm
0-100
steering height mm
101-200
connection length mm
201-300
fixing
dashboard
type
single
fitting position
lh
technology
frontali in aria
length lever mm detail
99
steering height mm detail
113
connection length mm detail
240
model type
serie 203
function - forward gear
attivo
function - neutral
attivo
function - reverse gear
attivo
function - block
attivo
