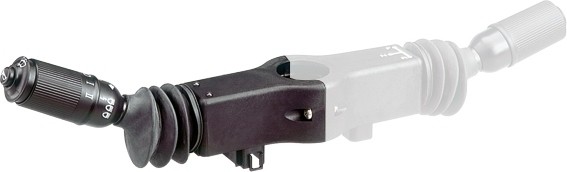

STEERING COLUMN SWITCH

COBO (Original product)
1006618

Code: 01.0859.0600.01

Request quotation
Add to Wishlist
  • SSL 100% secure website SSL 100% secure website
  • Fast shipping with national and international couriers Fast shipping with national and international couriers
Sito sicuro | Pagamento sicuro
Description
FUNCTIONPEAK LOAD 12VPEAK LOAD 24V
FORWARD GEAR200mA100mA
NEUTRAL200mA100mA
REVERSE GEAR200mA100mA
SWITCH3A1,5A

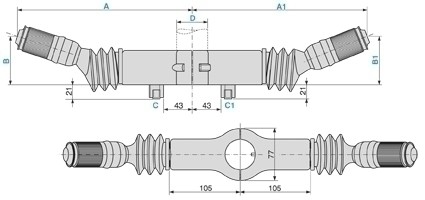

LENGTH LEVER MM
201-300
STEERING HEIGHT MM
0-100
TYPE
SINGLE
FITTING POSITION
LH
TECHNOLOGY
FRONTALI IN ARIA
TYPE CONNECTION
DEUTSCH 12 VIE
LENGTH LEVER MM DETAIL
234
STEERING HEIGHT MM DETAIL
84
MODEL TYPE
SERIE 2000
FUNCTION - REVERSE GEAR
Attivo
FUNCTION - NEUTRAL
Attivo
FUNCTION - FORWARD GEAR
Attivo
FUNCTION - SWITCH
Attivo
APPLICATIONS
Components for access platforms telescopic - cranes
Telehandlers
Forklift trucks
Earth moving machines
Trucks tractors - trailers
Agricultural vehicles
Combines
Mixer wagons
Fire fighting - rescue vehicles
Camper & caravan
Motorcycles - quad components
Electric vehicles - golf cart
Can-bus boat global control system
Ambulances - emergency vehicles
Defense vehicles
