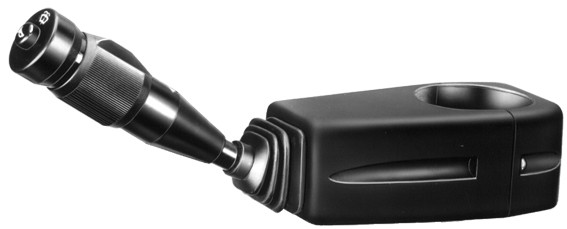

STEERING COLUMN SWITCH

COBO (Original product)
1006657

Code: 01.0888.0000.01

Doc. Code: 01-0888-0000-01

€302.40
tax excluded

(368.93 € tax incl.)

Quantity

Add to Wishlist
  • SSL 100% secure website SSL 100% secure website
  • Fast shipping with national and international couriers Fast shipping with national and international couriers
Sito sicuro | Pagamento sicuro
Description It DIFFERS FROM 01.0810.0000 IN THE GEAR KNOB WITH SLIDING CONTACTS
FUNCTIONPEAK LOAD 12VPEAK LOAD 24V
FORWARD GEAR 5A 2,5A
NEUTRAL 5A 2,5A
REVERSE GEAR 5A 2,5A
SPEED 1 5A 2,5A
SPEED 2 5A 2,5A
SPEED 3 5A 2,5A
SPEED 4 5A 2,5A
LENGTH LEVER MM
201-300
STEERING HEIGHT MM
0-100
CONNECTION LENGTH MM
501-600
FIXING
COLUMN 45 MM
TYPE
SINGLE
FITTING POSITION
LH
TECHNOLOGY
MICROSWITCH
LENGTH LEVER MM DETAIL
247
STEERING HEIGHT MM DETAIL
96

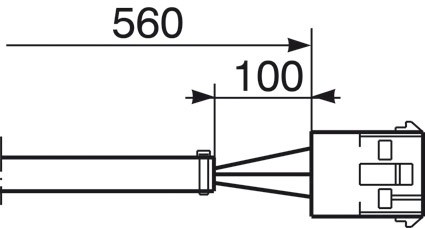

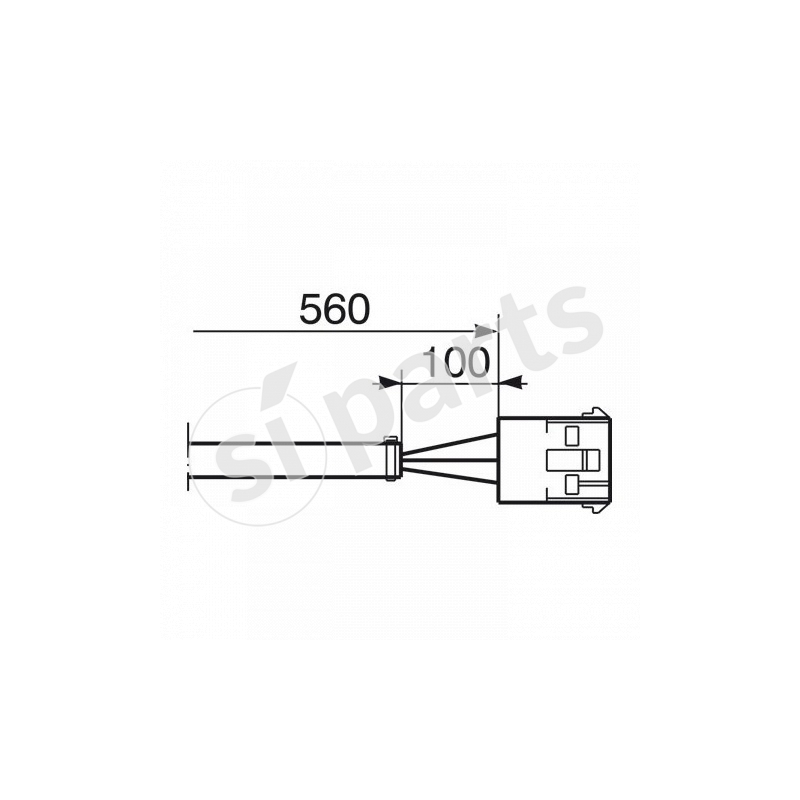

CONNECTION LENGTH MM DETAIL
560
MODEL TYPE
SERIE 240
FUNCTION - FORWARD GEAR
Attivo
FUNCTION - NEUTRAL
Attivo
FUNCTION - REVERSE GEAR
Attivo
FUNCTION - BLOCK
Attivo
FUNCTION - SPEED 1
Attivo
FUNCTION - SPEED 2
Attivo
FUNCTION - SPEED 3
Attivo
FUNCTION - SPEED 4
Attivo
APPLICATIONS
Components for access platforms telescopic - cranes
Telehandlers
Forklift trucks
Earth moving machines
Trucks tractors - trailers
Agricultural vehicles
Combines
Mixer wagons
Fire fighting - rescue vehicles
Camper & caravan
Motorcycles - quad components
Electric vehicles - golf cart
Can-bus boat global control system
Ambulances - emergency vehicles
Defense vehicles
