The image shown here is for illustrative purposes only.

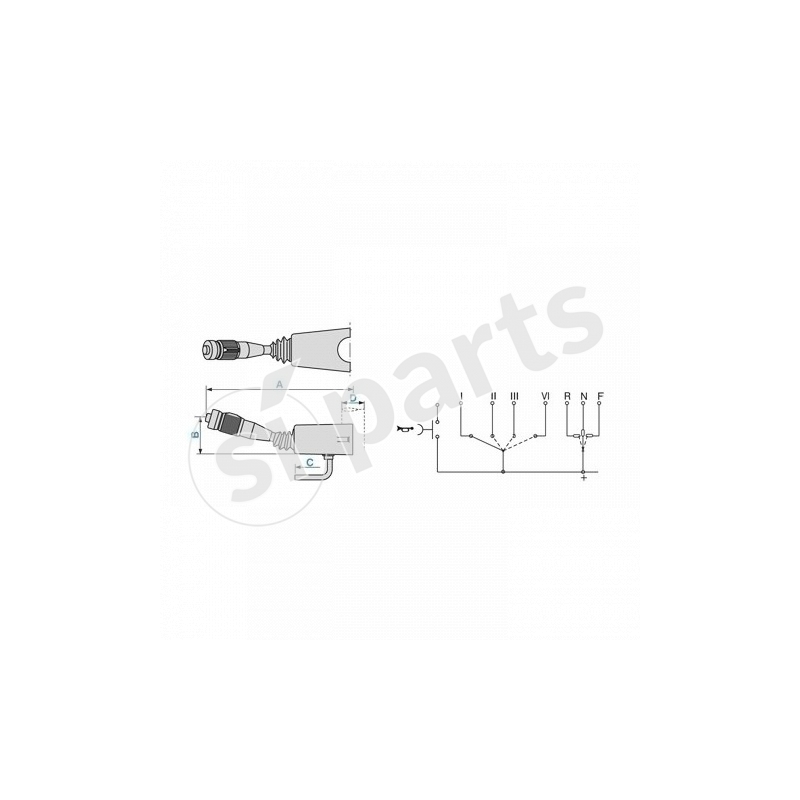

SHIFTER
Code: 01.0911.0000.01
Doc. Code: 01-0911-0000-01
€302.40
Tax excluded
(368.93 € Tasse incluse)
Quantity
- SSL 100% secure website
- Fast shipping with national and international couriers
description
| function | peak load 12v | peak load 24v |
|---|---|---|
| forward gear | 5a | 2,5a |
| neutral | 5a | 2,5a |
| reverse gear | 5a | 2,5a |
| speed 1 | 5a | 2,5a |
| speed 2 | 5a | 2,5a |
| speed 3 | 5a | 2,5a |
| speed 4 | 5a | 2,5a |
| horn | 5a | 2,5a |
length lever mm
201-300
steering height mm
0-100

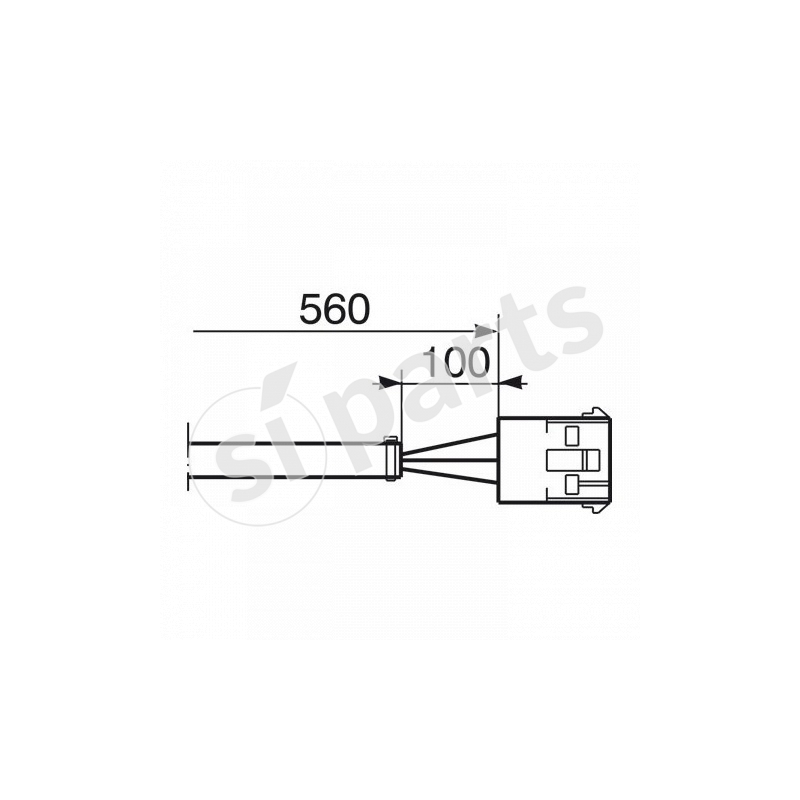

connection length mm
501-600
fixing
column 45 mm
type
single
fitting position
lh
technology
microswitch
length lever mm detail
267
steering height mm detail
68
connection length mm detail
560
model type
serie 240
function - horn
attivo
function - forward gear
attivo
function - neutral
attivo
function - reverse gear
attivo
function - block
attivo
function - speed 1
attivo
function - speed 2
attivo
function - speed 3
attivo
function - speed 4
attivo
