The image shown here is for illustrative purposes only.

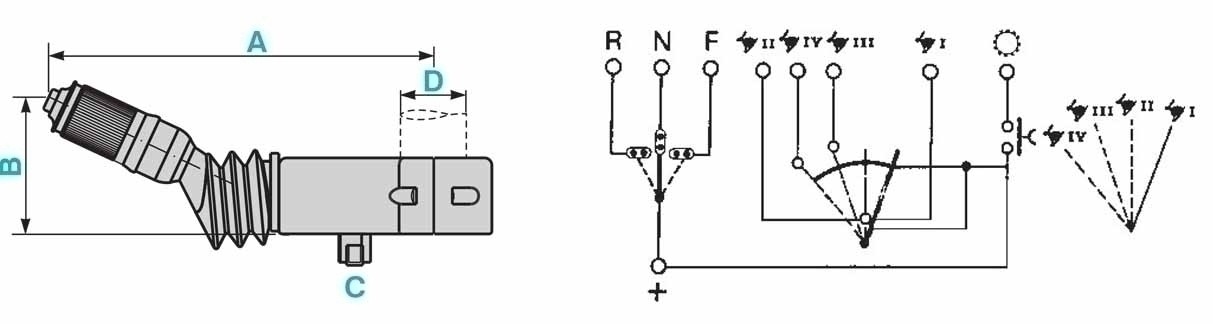

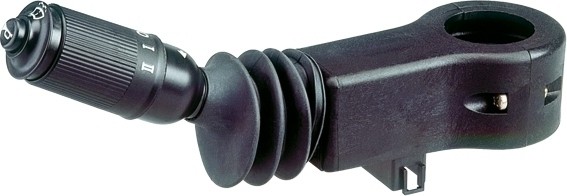

FORWARD-NEUTRAL-REVERSE + SPEED CONTROL SERIES 2000
Code: 01.0981.0000.01
Doc. Code: 01-0981-0000-01
Pack 15 pieces.
€3,000.30
(€200.02 Cad.)
Tax excluded
(3660.37 € Tasse incluse)
Quantity
- SSL 100% secure website
- Fast shipping with national and international couriers
description
| function | peak load 12v | peak load 24v |
|---|---|---|
| forward gear | 200ma | 100ma |
| neutral | 200ma | 100ma |
| reverse gear | 200ma | 100ma |
| speed 1 | 200ma | 100ma |
| speed 2 | 200ma | 100ma |
| speed 3 | 200ma | 100ma |
| speed 4 | 200ma | 100ma |
| gear speed | 3a | 1,5a |
| kd | 3a | 1,5a |
length lever mm
201-300
steering height mm
0-100
fixing
column 45 mm
type
single
fitting position
lh
technology
frontali in aria
type connection
deutsch 12 vie
length lever mm detail
262
steering height mm detail
58
model type
serie 2000
function - speed 4
attivo
function - speed 3
attivo
function - speed 2
attivo
function - speed 1
attivo
function - block
attivo
function - reverse gear
attivo
function - neutral
attivo
function - forward gear
attivo
function - gear speed
attivo
function - kd
attivo
