The image shown here is for illustrative purposes only.

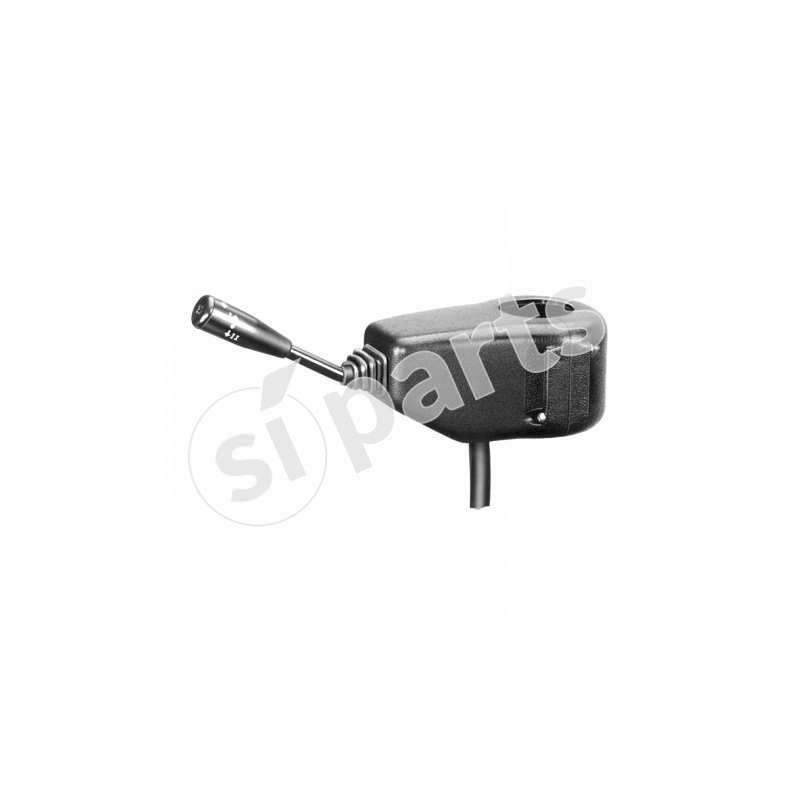

STEERING COLUMN SWITCH
Code: 01.1044.0000.01
Doc. Code: 01-1044-0000-01
€145.07
Tax excluded
(176.99 € Tasse incluse)
Quantity
- SSL 100% secure website
- Fast shipping with national and international couriers
description

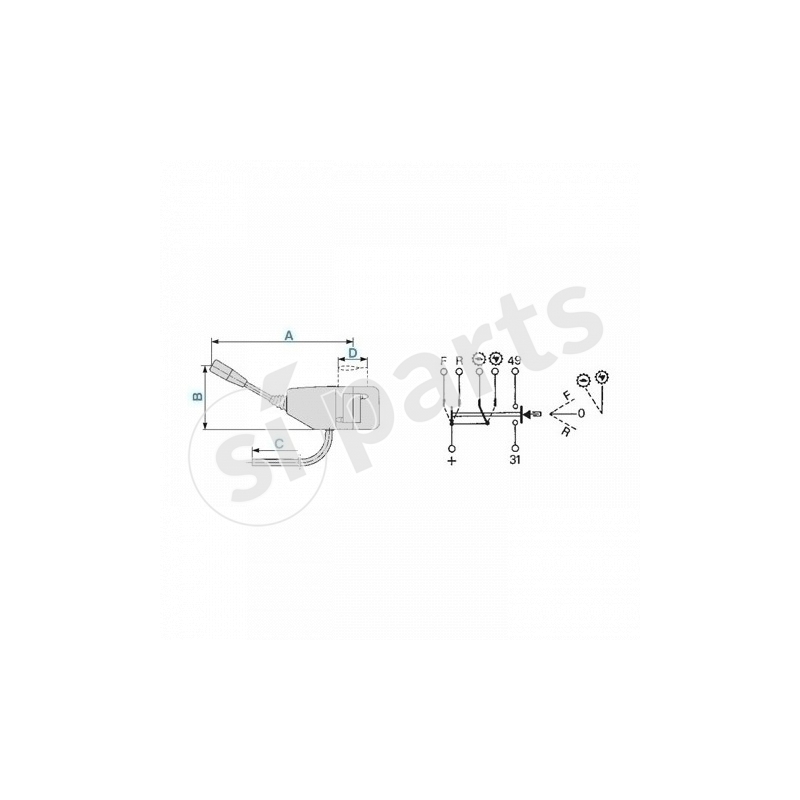

| function | peak load 12v | peak load 24v |
|---|---|---|
| horn | 5a | 3a |
| forward gear | 8a | 5a |
| reverse gear | 8a | 5a |
| low gear | 8a | 5a |
| fast gear | 8a | 5a |

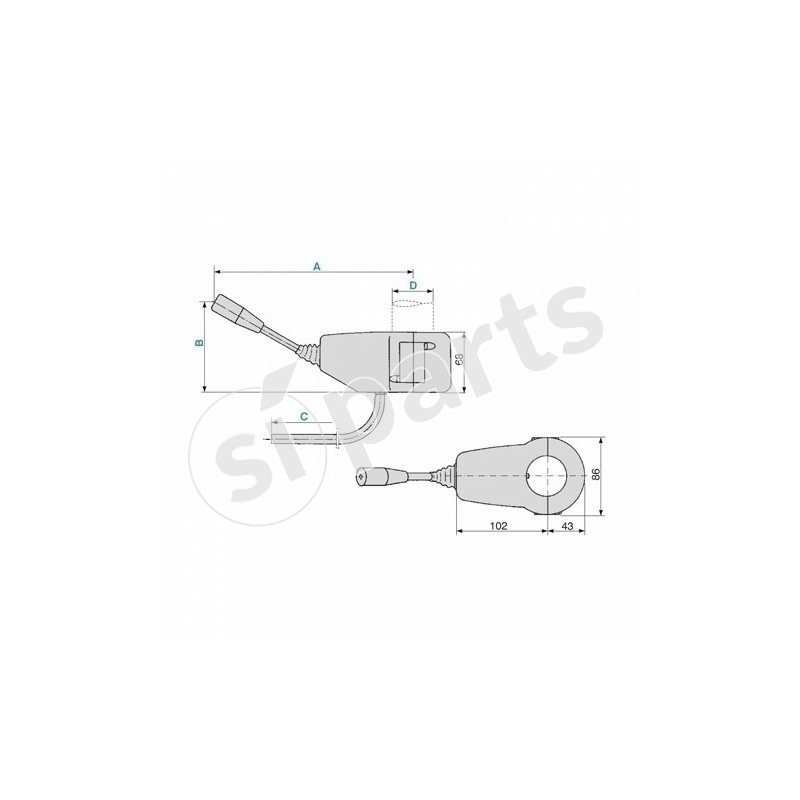

length lever mm
201-300
steering height mm
0-100

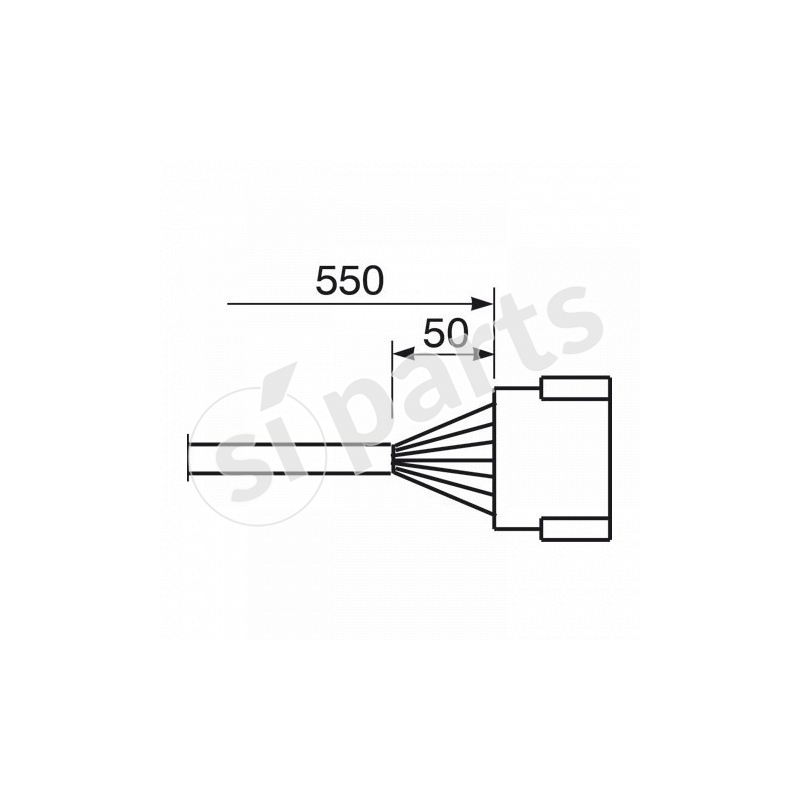

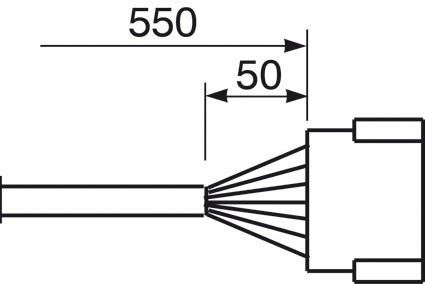

connection length mm
501-600
fixing
column 45 mm
type
single
fitting position
lh
technology
frontali in aria
length lever mm detail
210
steering height mm detail
90
connection length mm detail
550
model type
serie 203
type of lever
metallic with black varnishing
knob lever
polyamide
type of cap
neoprene rubber
color of cap
black
protection housing
black polyamide
function - horn
attivo
function - fast gear
attivo
function - low gear
attivo
function - forward gear
attivo
function - reverse gear
attivo
