The image shown here is for illustrative purposes only.

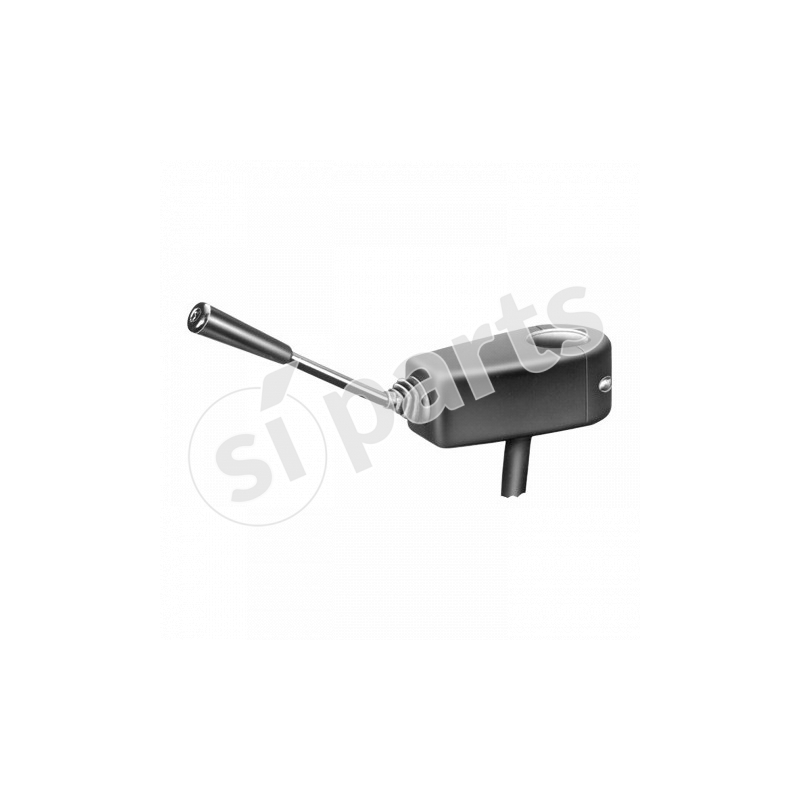

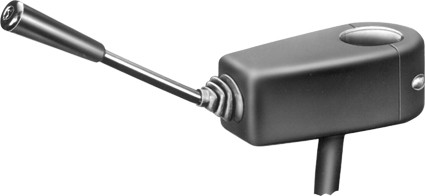

STEERING COLUMN SWITCH
Code: 01.1048.0000.01
Doc. Code: 01-1048-0000-01
€129.60
Tax excluded
(158.11 € Tasse incluse)
Quantity
- SSL 100% secure website
- Fast shipping with national and international couriers
description
it differs from 01.191.000 in the connectors position

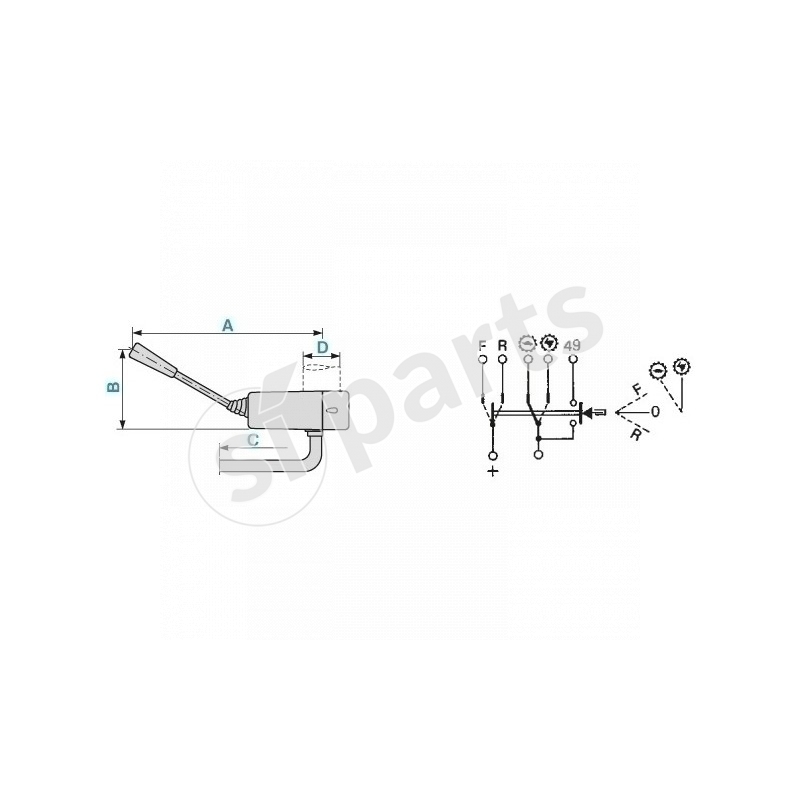

| function | peak load 12v | peak load 24v |
|---|---|---|
| horn | 5a | 3a |
| forward gear | 8a | 5a |
| reverse gear | 8a | 5a |
| low gear | 8a | 5a |
| fast gear | 8a | 5a |

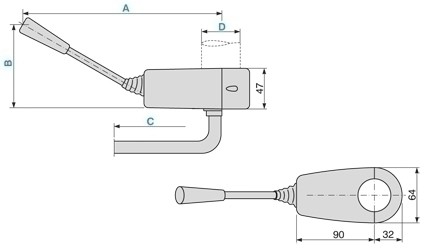

length lever mm
201-300
steering height mm
0-100
connection length mm
901-1000
fixing
column 38 mm
type
single
fitting position
lh
technology
frontali in aria
length lever mm detail
243
steering height mm detail
88
connection length mm detail
1000
model type
serie 180
type of lever
metallic with black varnishing
knob lever
polyamide
type of cap
neoprene rubber
color of cap
black
protection housing
black aluminium alloy
function - horn
attivo
function - fast gear
attivo
function - low gear
attivo
function - forward gear
attivo
function - reverse gear
attivo
