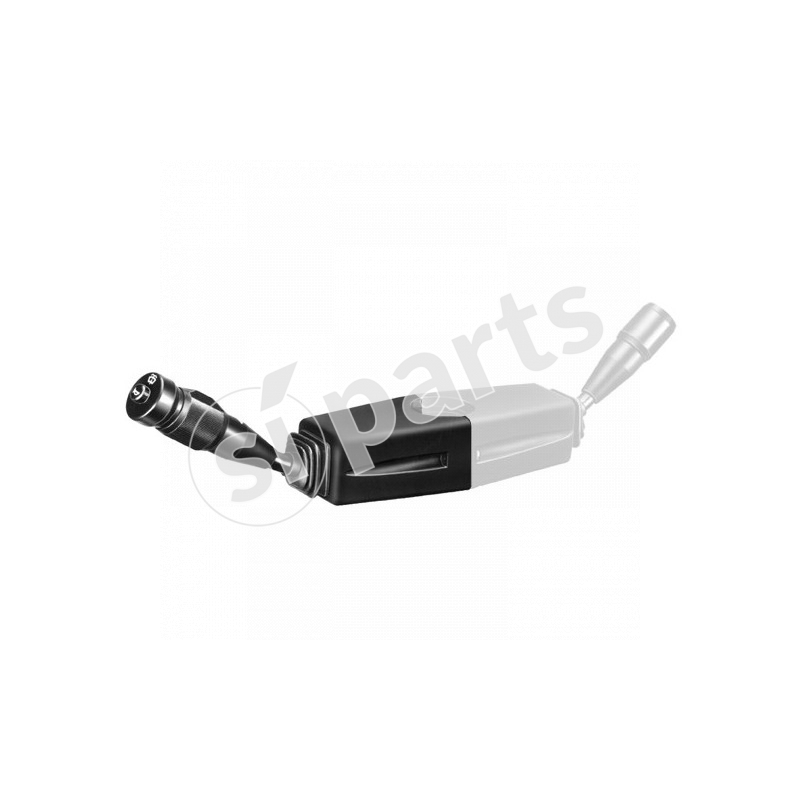

The image shown here is for illustrative purposes only.
REVERSE SWITCH
Code: 01.1054.0600.01
Doc. Code: 01-1054-0600-01
€186.34
Tax excluded
(227.33 € Tasse incluse)
Quantity
- SSL 100% secure website
- Fast shipping with national and international couriers
description
| function | peak load 12v | peak load 24v |
|---|---|---|
| fast gear | 8a | 4a |
| forward gear | 8a | 4a |
| reverse gear | 8a | 4a |

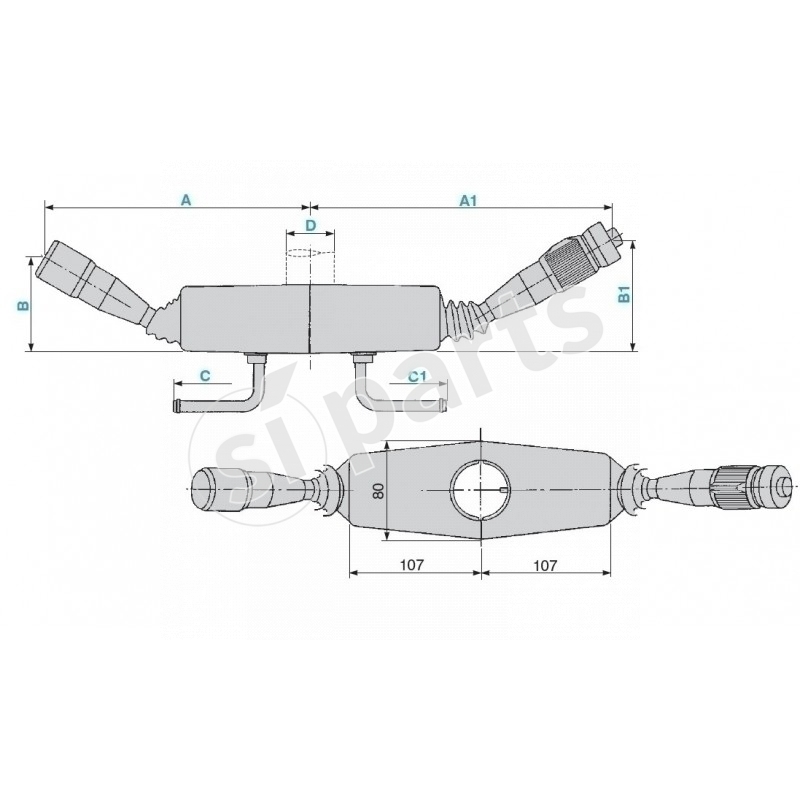

length lever mm
201-300
steering height mm
0-100

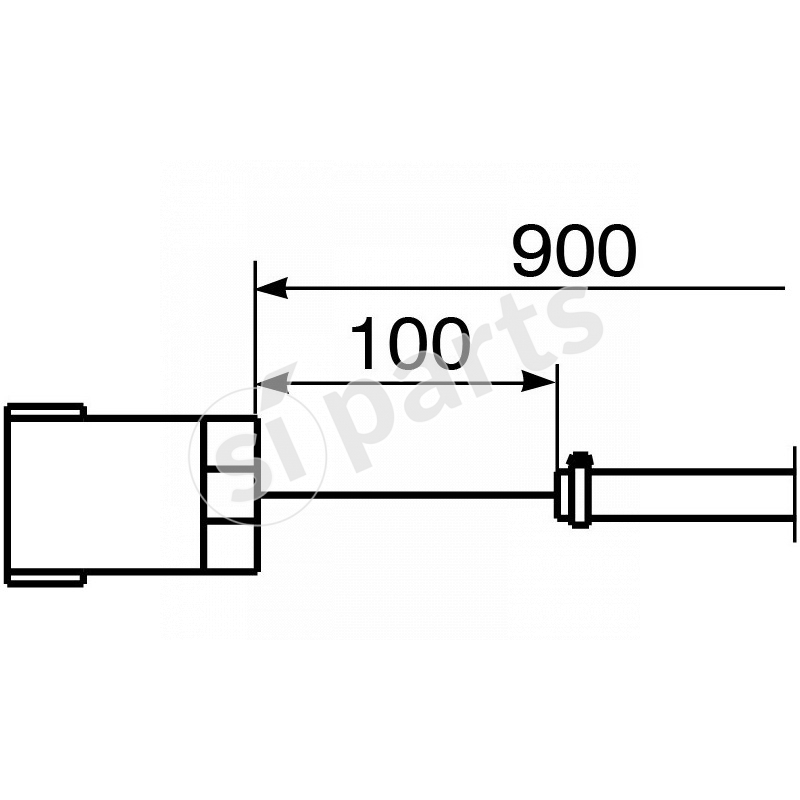

connection length mm
801-900
type
single
fitting position
lh
technology
frontali in aria
length lever mm detail
220
steering height mm detail
78
connection length mm detail
900
model type
serie 240
function - reverse gear
attivo
function - forward gear
attivo
function - fast gear
attivo
