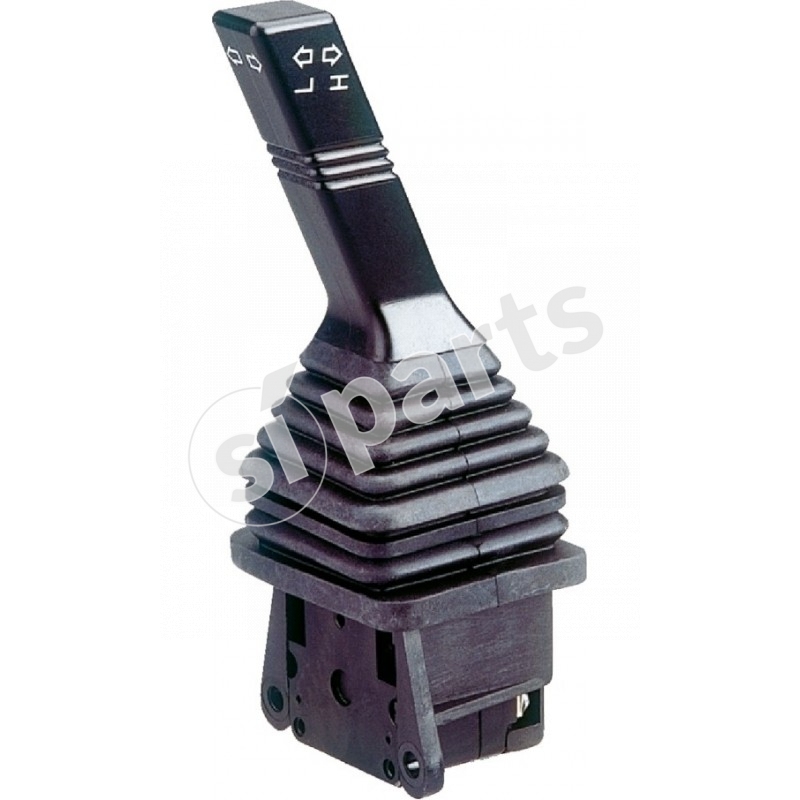

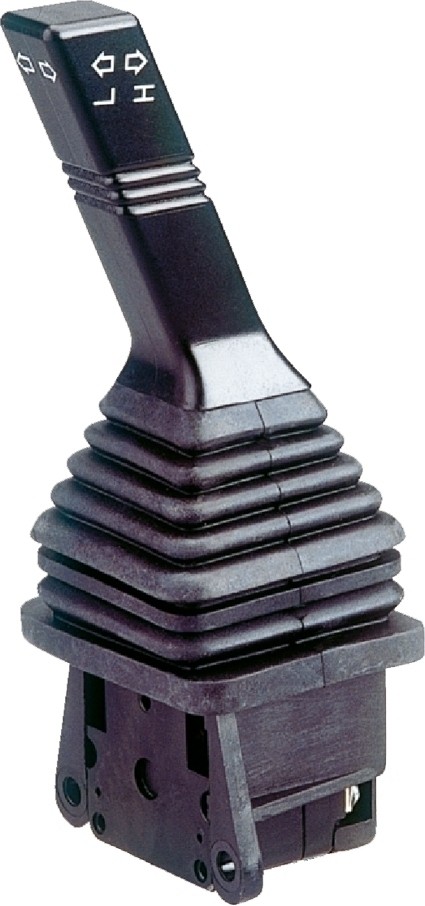

STEERING COLUMN SWITCH
Code: 01.261.000.01
Doc. Code: 01-261-000-01
€119.40
Tax excluded
(145.67 € Tasse incluse)
Quantity
- SSL 100% secure website
- Fast shipping with national and international couriers
description
| function | peak load 12v | peak load 24v |
|---|---|---|
| forward gear | 8a | 5a |
| reverse gear | 8a | 5a |
| fast gear | 8a | 5a |
| low gear | 8a | 5a |

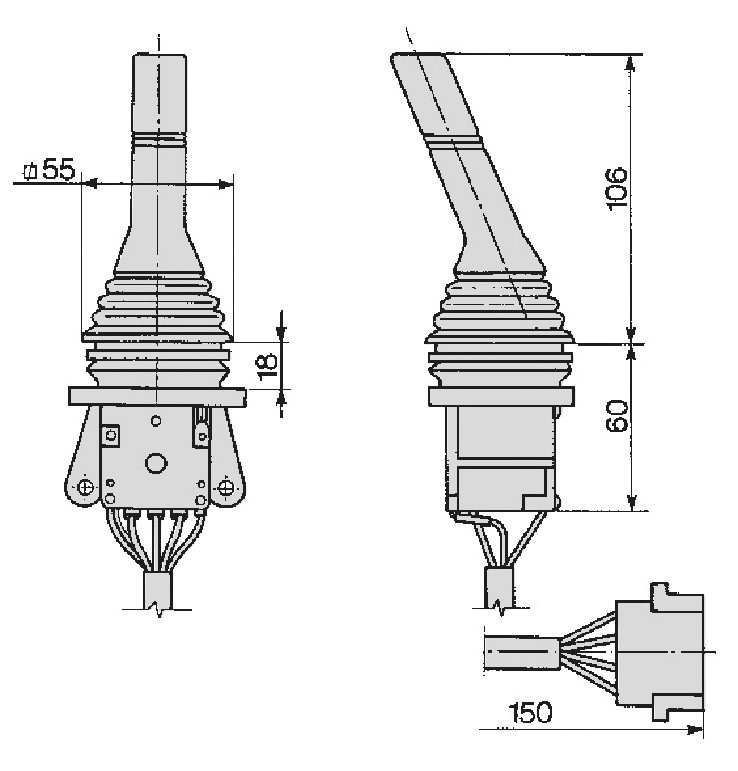

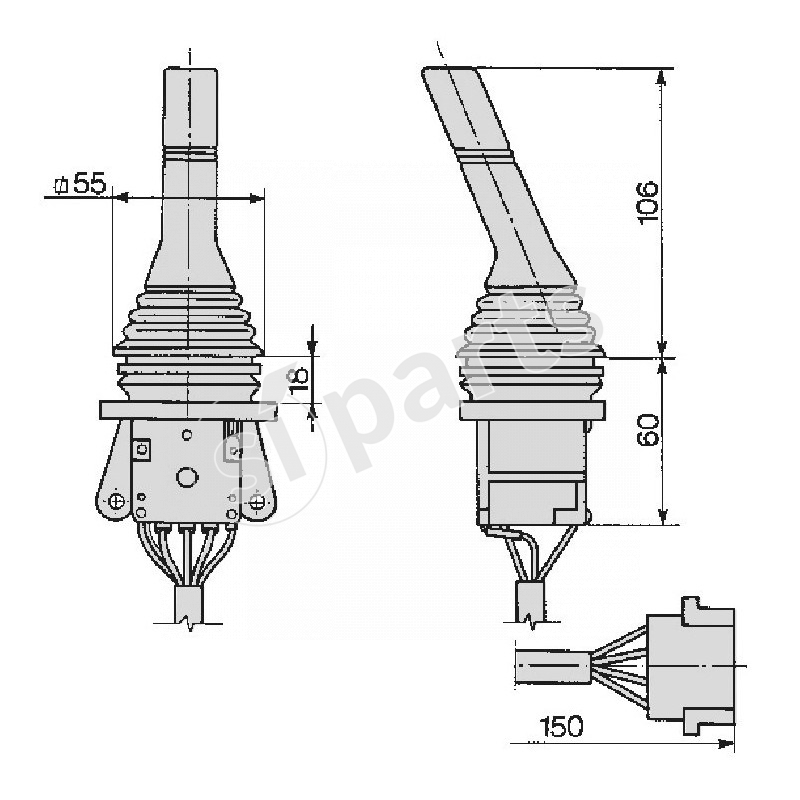

length lever mm
101-200
connection length mm
101-200
fixing
dashboard
type
single
fitting position
lh
technology
frontali in aria
length lever mm detail
106
connection length mm detail
150
type of interior lever
metallic
lever covering
polyamide + functions symbols
type of cap
neoprene rubber
color of cap
black
protection housing
polyamide
model type
serie 170
function - fast gear
attivo
function - low gear
attivo
function - forward gear
attivo
function - reverse gear
attivo
