The image shown here is for illustrative purposes only.

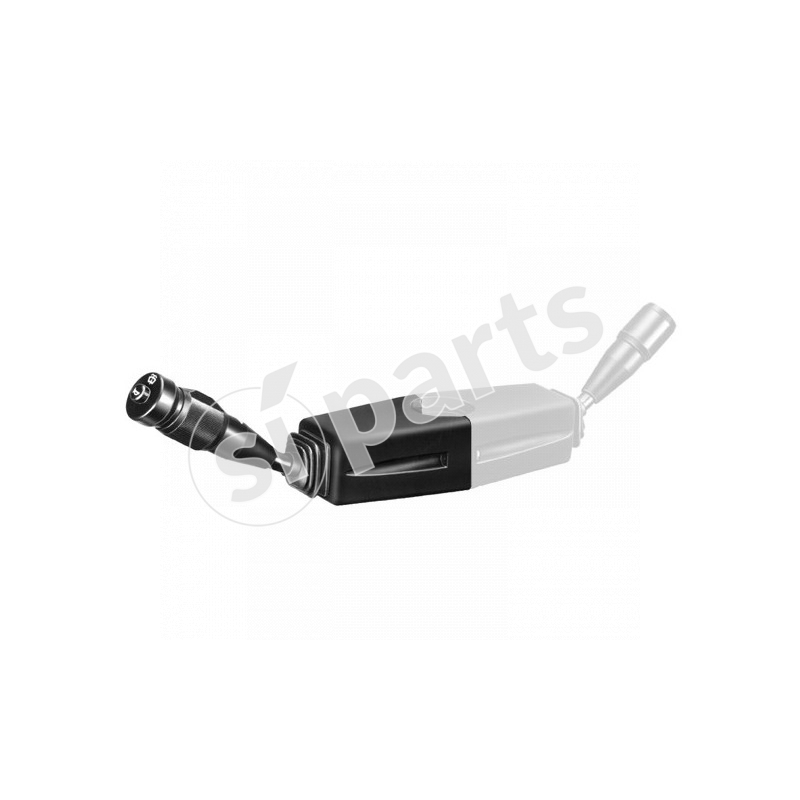

STEERING COLUMN SWITCH
Code: 01.290.600.01
Doc. Code: 01-290-600_$2
€244.00
Tax excluded
(297.68 € Tasse incluse)
Quantity
- SSL 100% secure website
- Fast shipping with national and international couriers
description

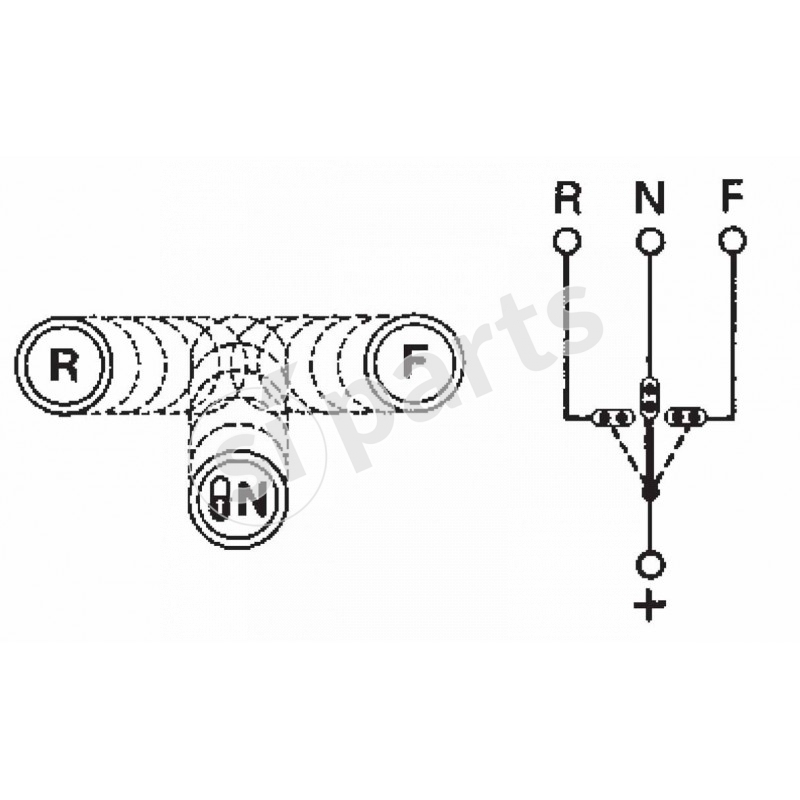

| function | peak load 12v | peak load 24v |
|---|---|---|
| forward gear | 8a | 4a |
| neutral | 8a | 4a |
| reverse gear | 8a | 4a |

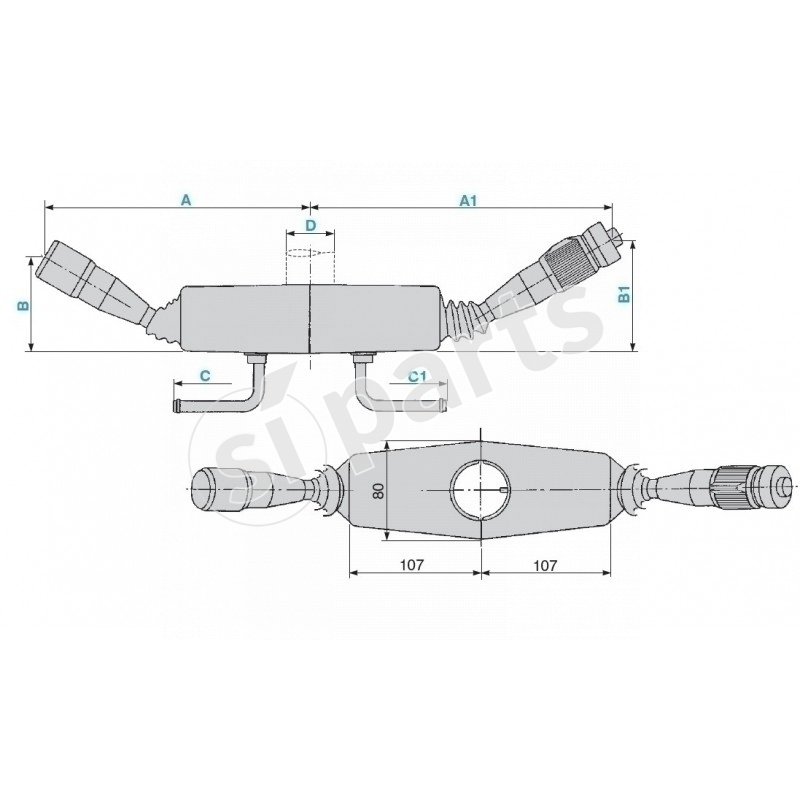

length lever mm
201-300
steering height mm
0-100

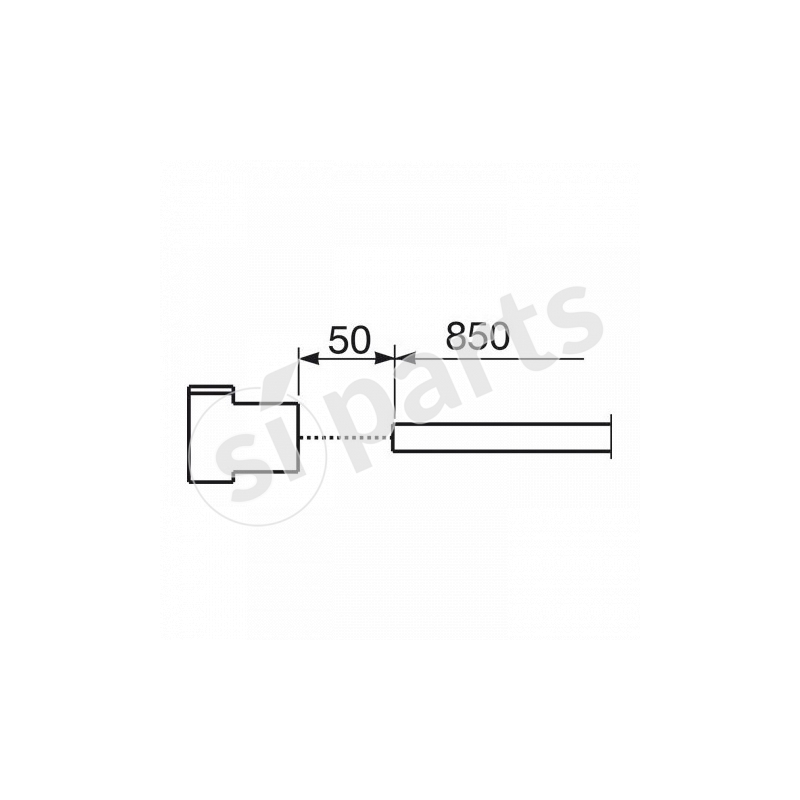

connection length mm
801-900
type
single
fitting position
lh
technology
frontali in aria
length lever mm detail
222
steering height mm detail
78
connection length mm detail
900
model type
serie 240
function - forward gear
attivo
function - neutral
attivo
function - reverse gear
attivo
function - block
attivo
