The image shown here is for illustrative purposes only.

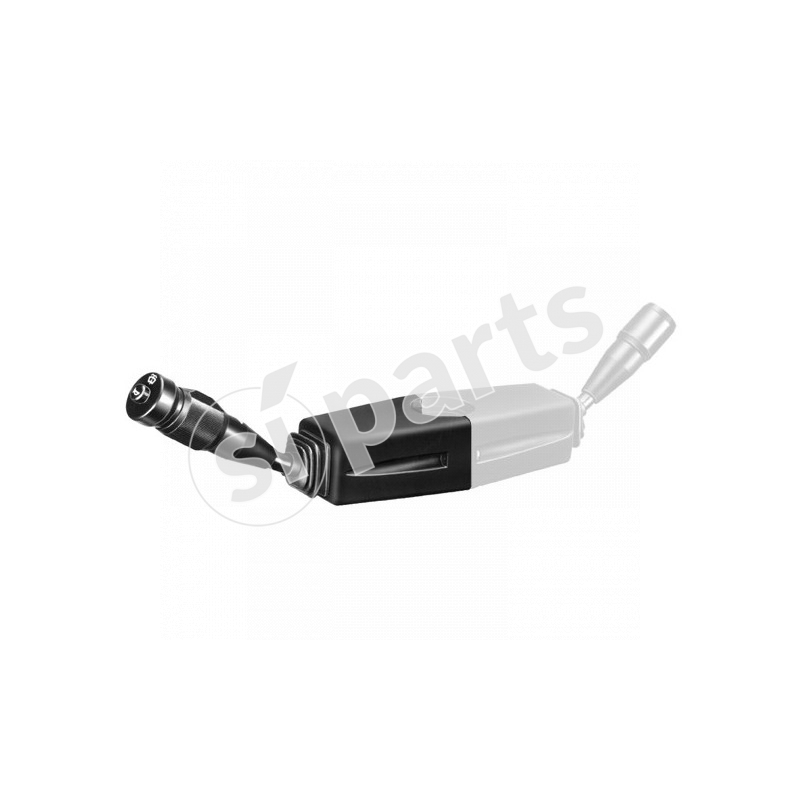

STEERING COLUMN SWITCH
Code: 01.294.500.02
Pack 10 pieces.
€3,554.00
(€355.40 Cad.)
Tax excluded
(4335.88 € Tasse incluse)
Quantity
- SSL 100% secure website
- Fast shipping with national and international couriers
description

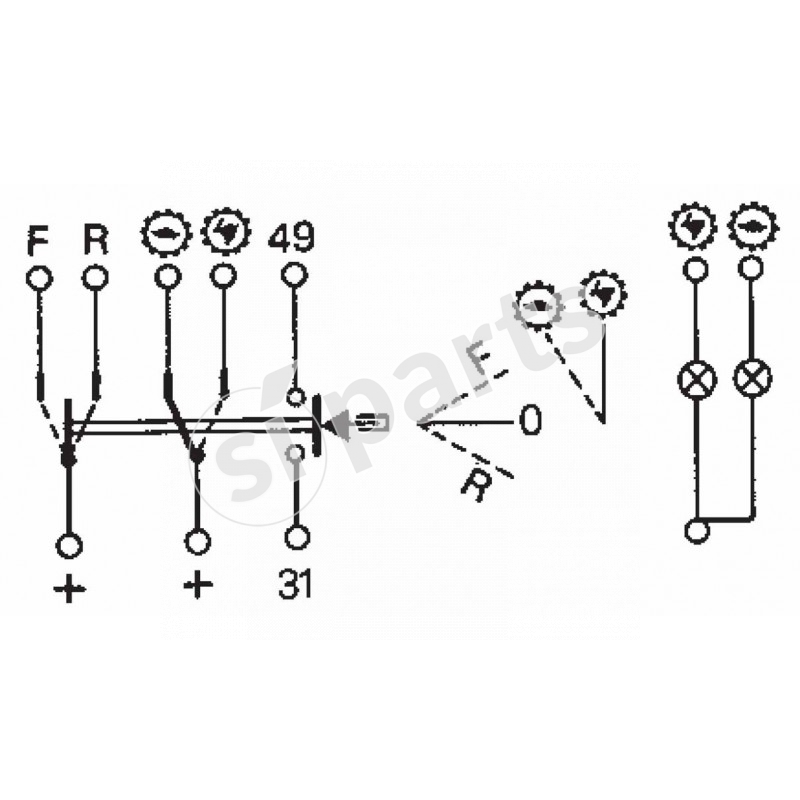

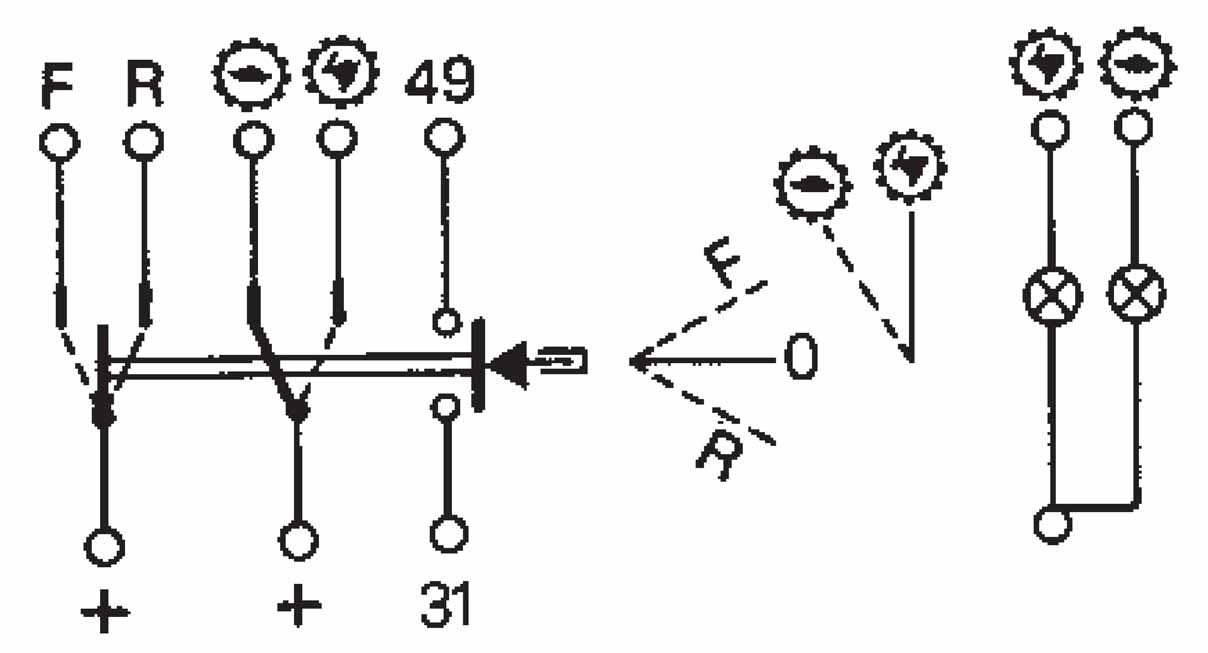

| function | peak load 12v | peak load 24v |
|---|---|---|
| forward gear | 8a | 4a |
| reverse gear | 8a | 4a |
| low gear | 8a | 4a |
| fast gear | 8a | 4a |
| gear speed | 3a | 1,5a |

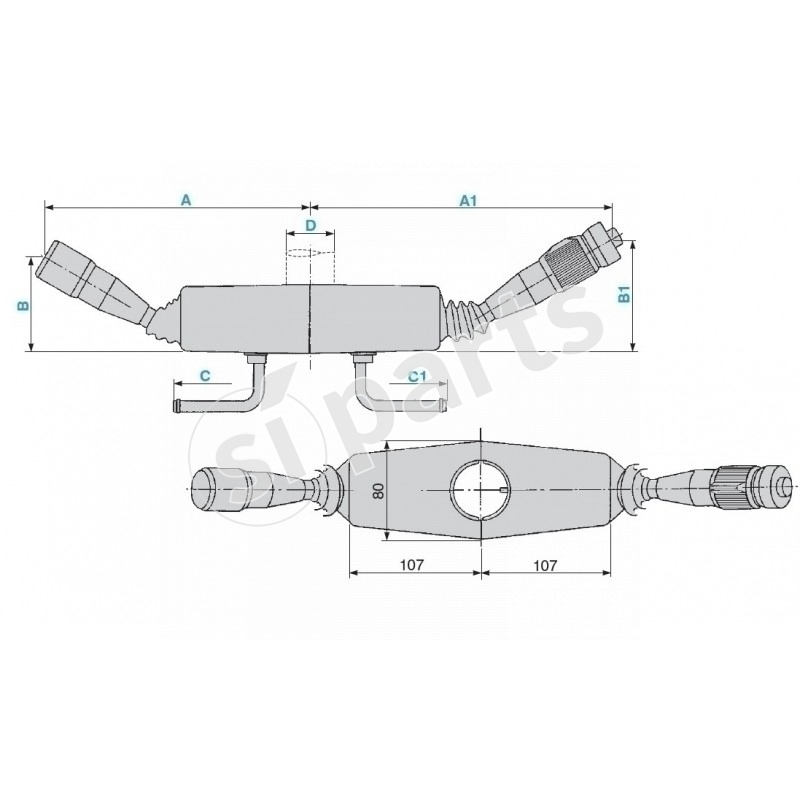

length lever mm
201-300
steering height mm
0-100

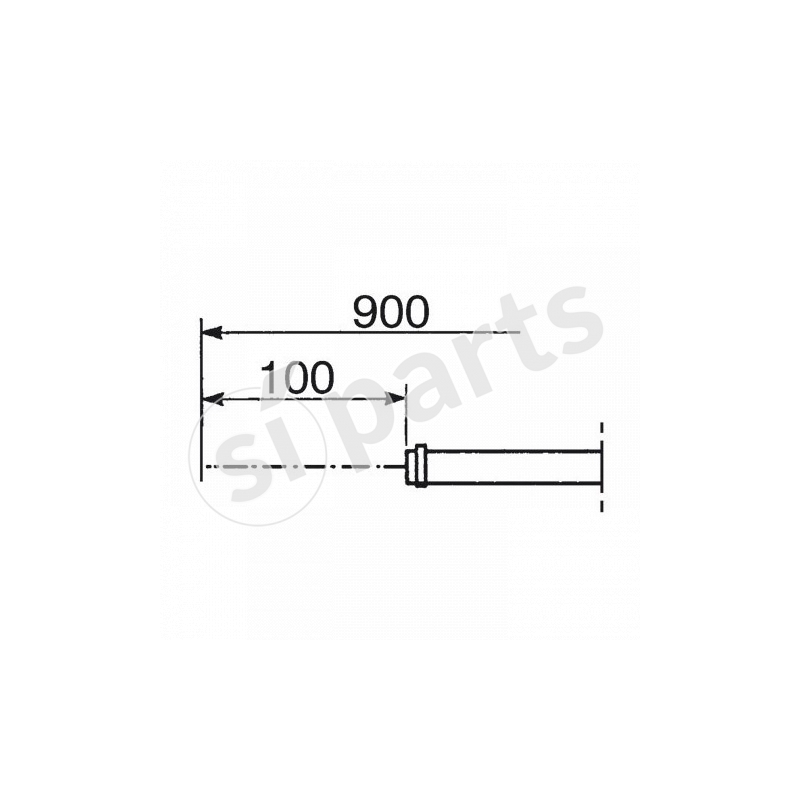

connection length mm
801-900
type
single
fitting position
lh
technology
frontali in aria
length lever mm detail
234
steering height mm detail
85
connection length mm detail
900
model type
serie 240
function - fast gear
attivo
function - low gear
attivo
function - gear speed
attivo
function - forward gear
attivo
function - reverse gear
attivo
