The image shown here is for illustrative purposes only.

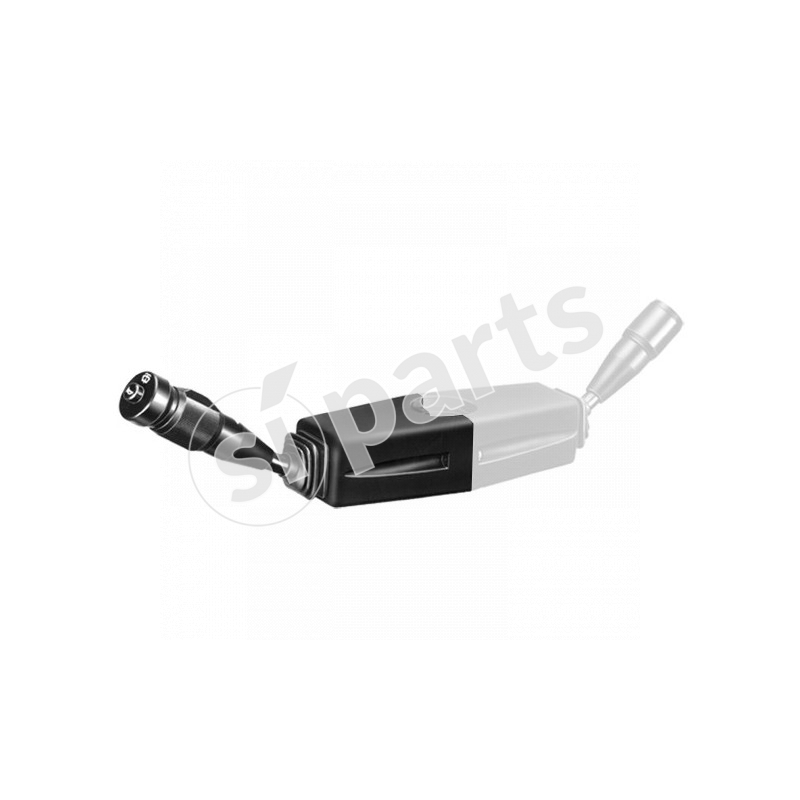

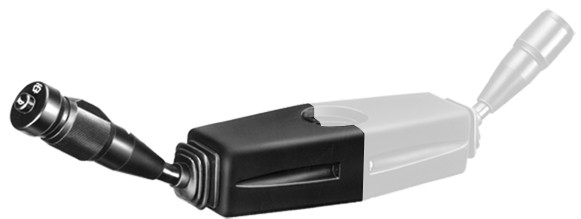

SHIFTER
Code: 01.314.600.01
Doc. Code: 01-314-600_$2
€240.15
Tax excluded
(292.98 € Tasse incluse)
Quantity
- SSL 100% secure website
- Fast shipping with national and international couriers
description

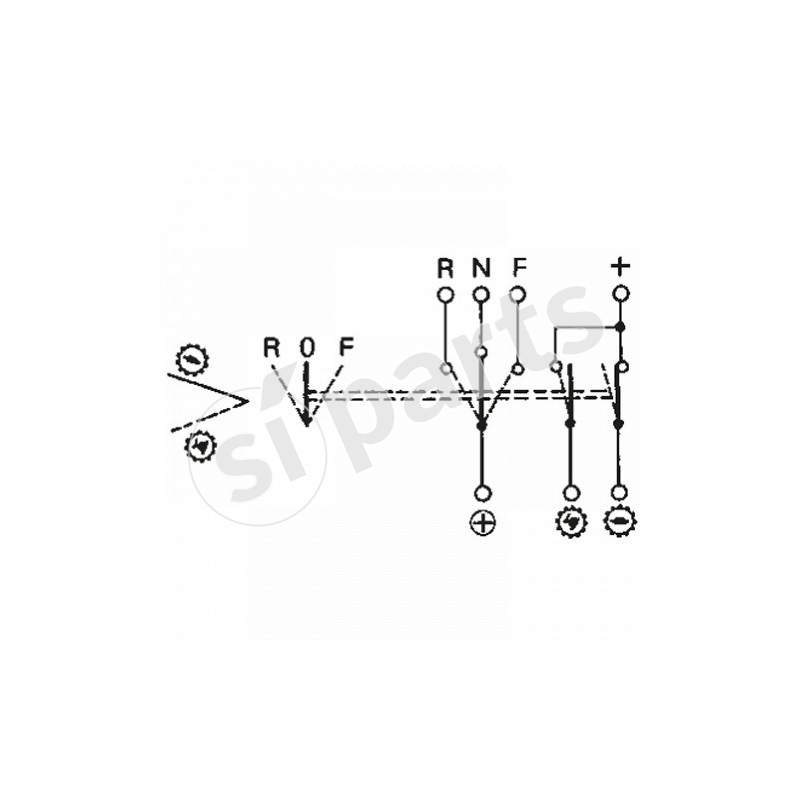

| function | peak load 12v | peak load 24v |
|---|---|---|
| forward gear | 2a | 1a |
| neutral | 5a | 3a |
| reverse gear | 5a | 3a |
| low gear | 2a | 1a |
| fast gear | 2a | 1a |

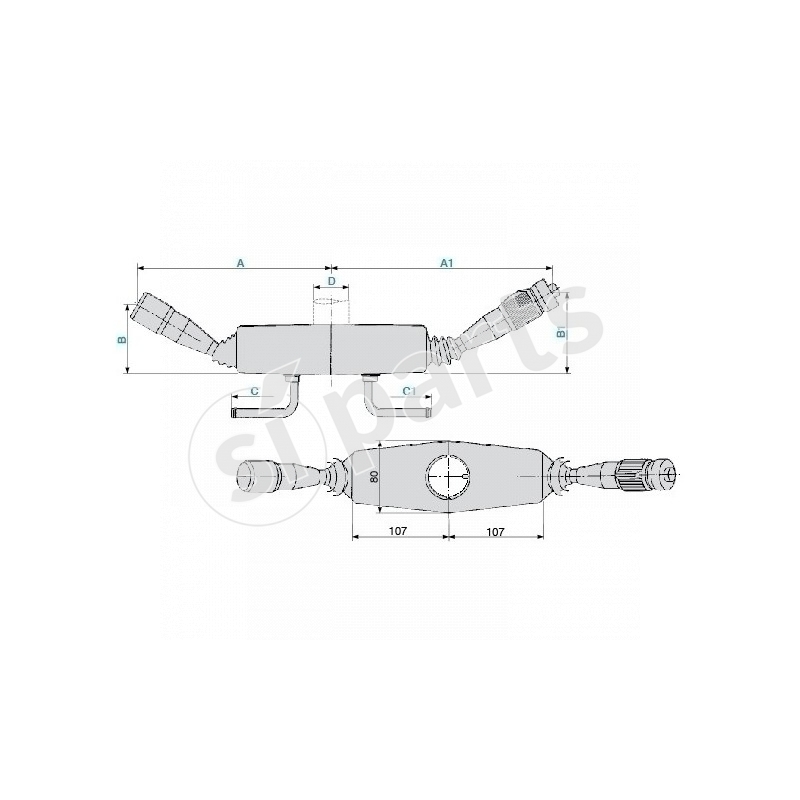

length lever mm
201-300
steering height mm
0-100

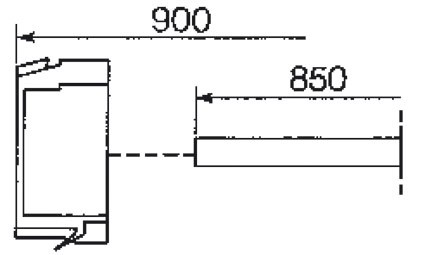

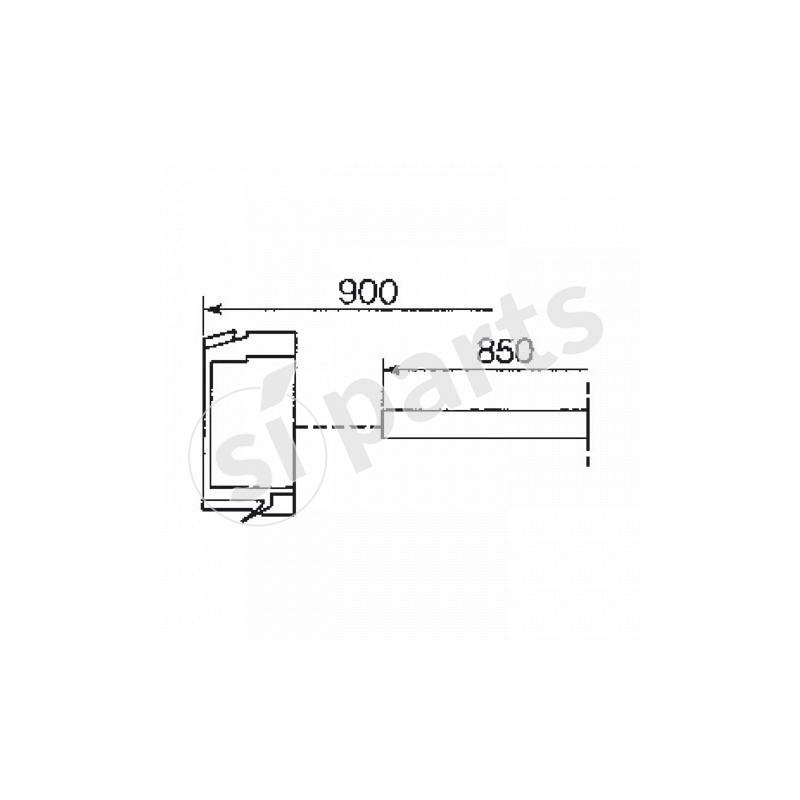

connection length mm
801-900
type
single
fitting position
lh
technology
microswitch
length lever mm detail
222
steering height mm detail
78
connection length mm detail
900
model type
serie 240
function - fast gear
attivo
function - low gear
attivo
function - forward gear
attivo
function - neutral
attivo
function - reverse gear
attivo
