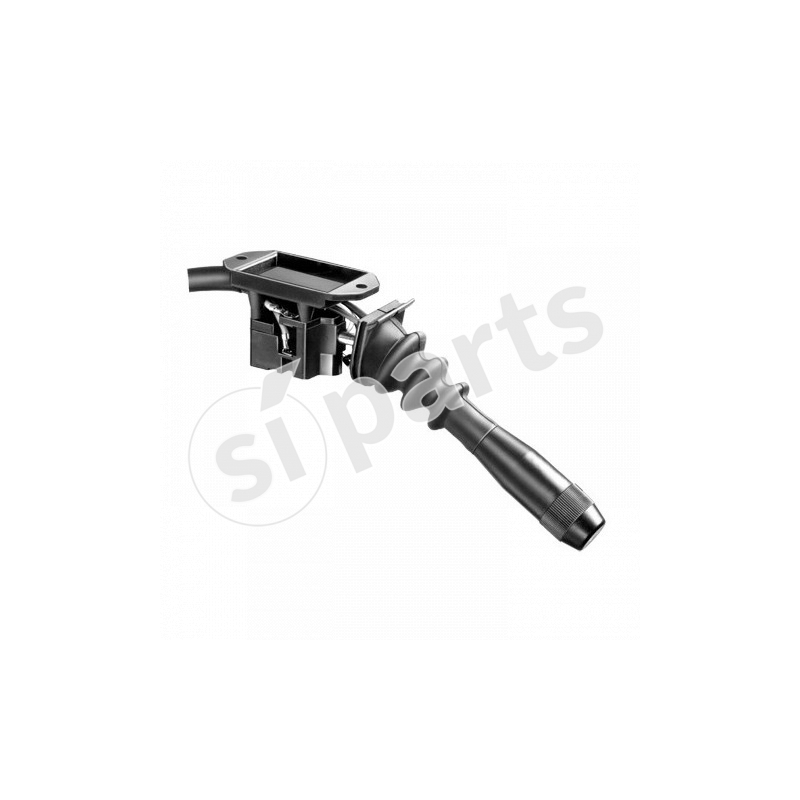

The image shown here is for illustrative purposes only.

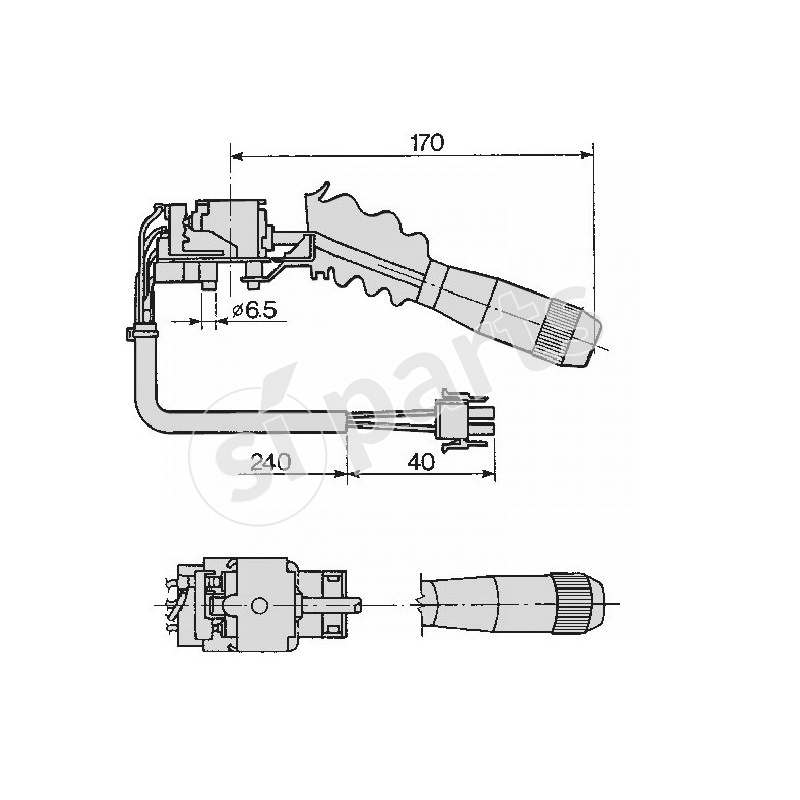

REVERSE SWITCH
Code: 01.342.000.02
Doc. Code: 01-342-000-02
Pack 25 pieces.
€3,846.25
(€153.85 Cad.)
Tax excluded
(4692.43 € Tasse incluse)
Quantity
- SSL 100% secure website
- Fast shipping with national and international couriers
description

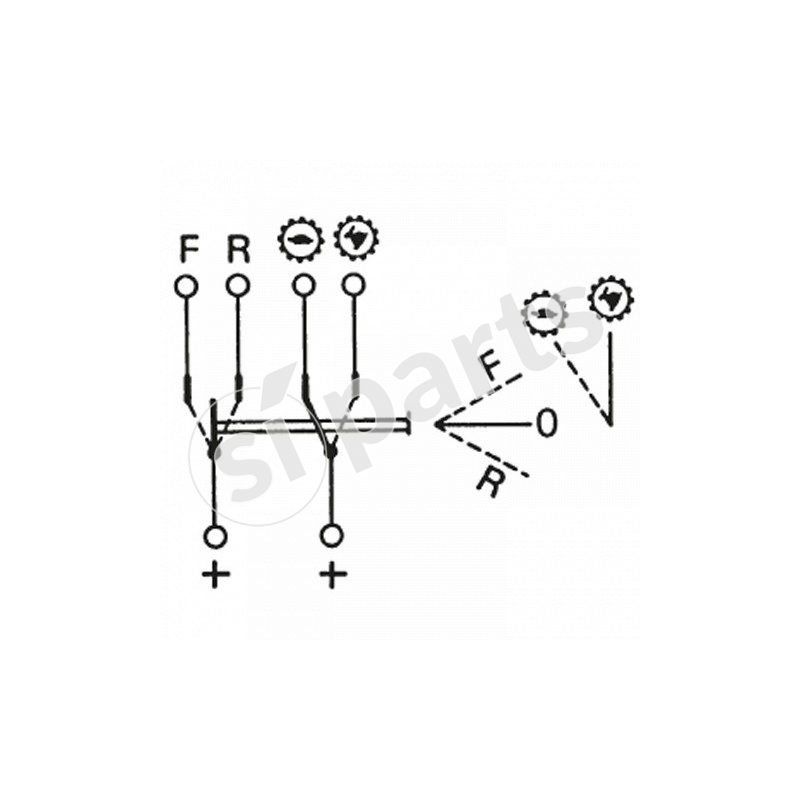

| function | peak load 12v | peak load 24v |
|---|---|---|
| forward gear | 8a | 5a |
| neutral | 8a | 5a |
| reverse gear | 8a | 5a |
| low gear | 8a | 5a |
| fast gear | 8a | 5a |
| speed 1 | 3a | 2a |
length lever mm
101-200
connection length mm
201-300
fixing
dashboard
type
single
fitting position
rh
technology
frontali in aria
length lever mm detail
170
connection length mm detail
280
model type
serie 203
function - fast gear
attivo
function - low gear
attivo
function - forward gear
attivo
function - reverse gear
attivo
