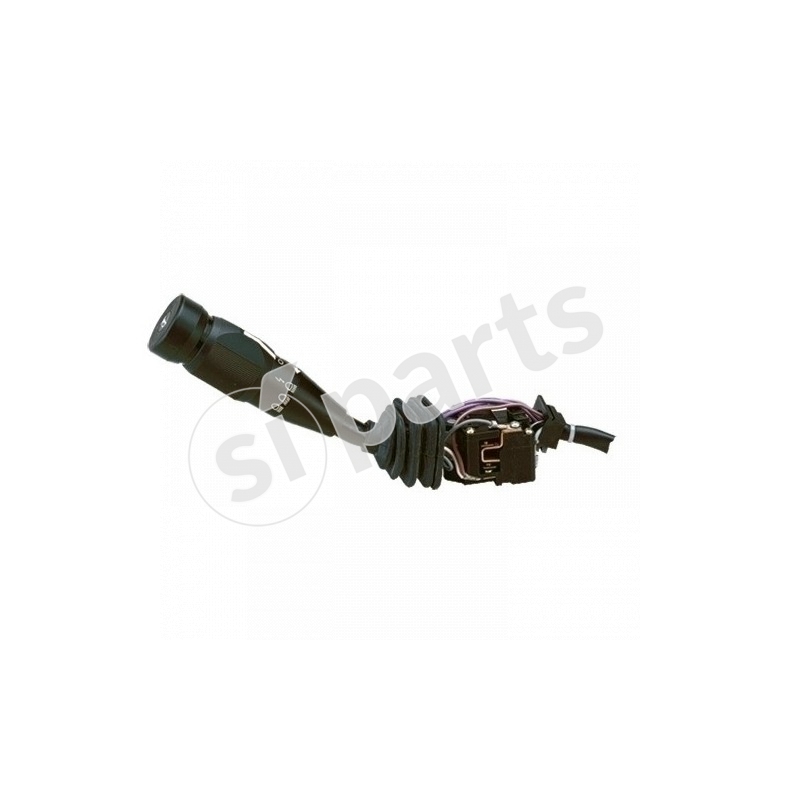

The image shown here is for illustrative purposes only.
REVERSE SWITCH
Code: 01.516.000.01
Doc. Code: 01-516-000-01
€345.08
Tax excluded
(421 € Tasse incluse)
Quantity
- SSL 100% secure website
- Fast shipping with national and international couriers
description

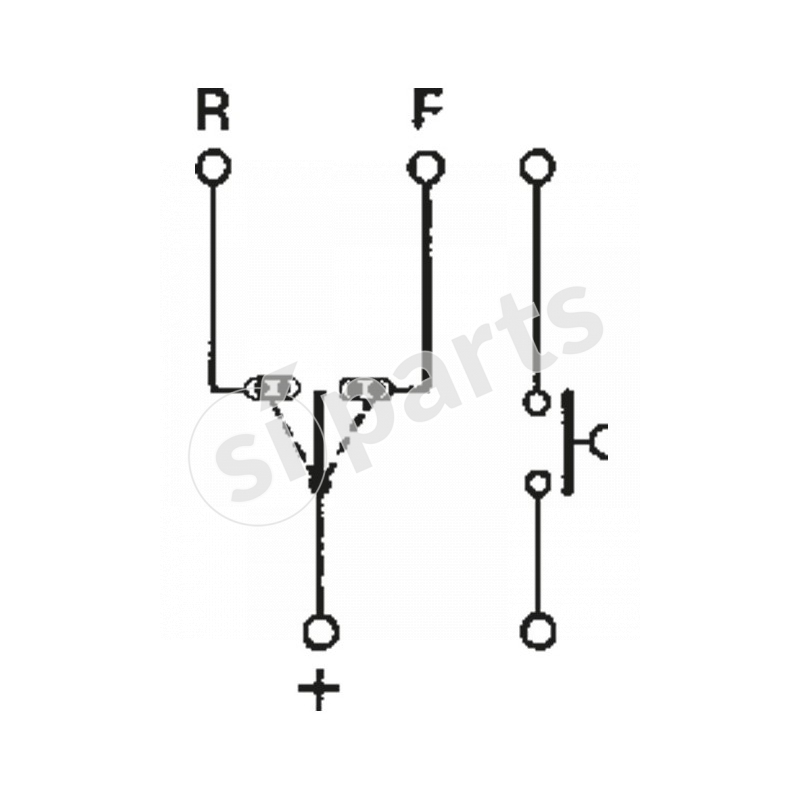

| function | peak load 12v | peak load 24v |
|---|---|---|
| forward gear | 8a | 5a |
| reverse gear | 8a | 5a |
| horn | 5a | 3a |

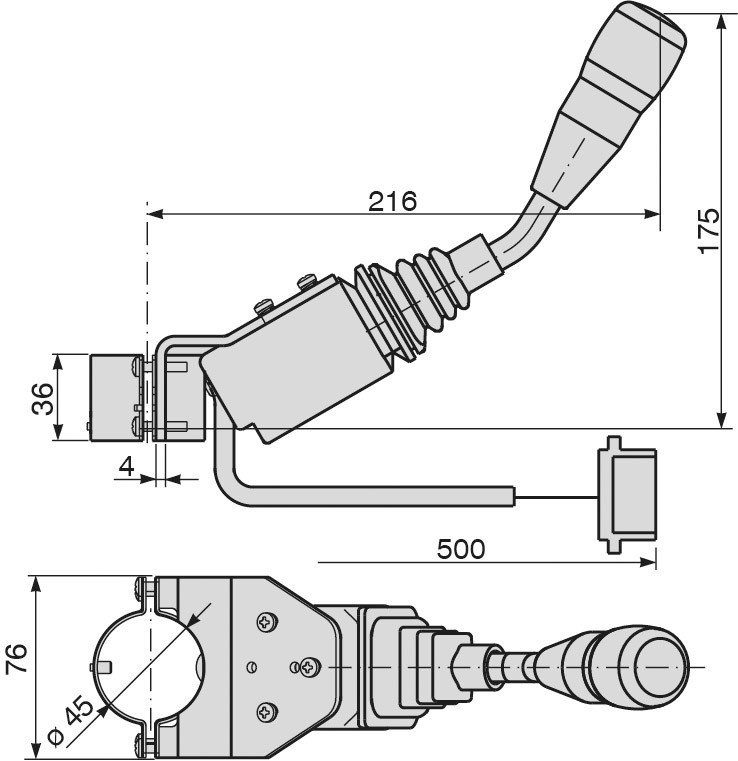

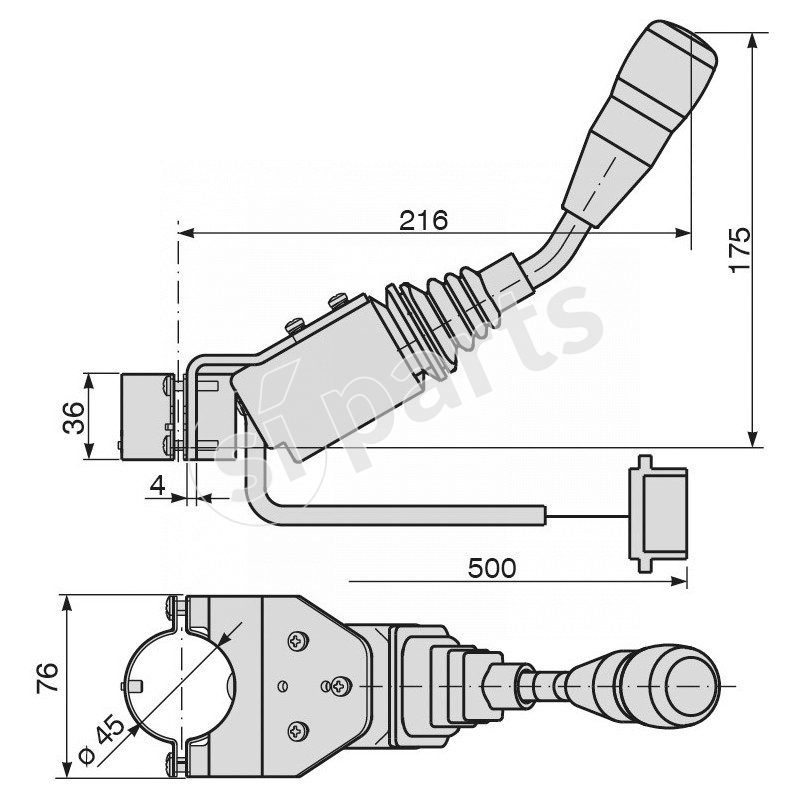

length lever mm
201-300
steering height mm
101-200
connection length mm
401-500
fixing
dashboard
type
single
fitting position
rh
technology
frontali in aria
length lever mm detail
216
steering height mm detail
175
connection length mm detail
500
model type
serie 240
function - horn
attivo
function - forward gear
attivo
function - reverse gear
attivo
