The image shown here is for illustrative purposes only.

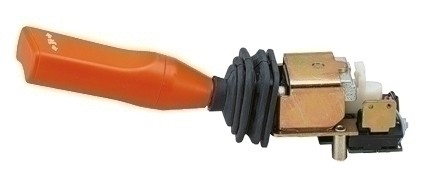

STEERING COLUMN SWITCH
Code: 01.532.000.01
Doc. Code: 01-532-000-01
€174.96
Tax excluded
(213.45 € Tasse incluse)
Quantity
- SSL 100% secure website
- Fast shipping with national and international couriers
description
| function | peak load 12v | peak load 24v |
|---|---|---|
| forward gear | 5a | 2,5a |
| neutral | 5a | 2,5a |
| reverse gear | 5a | 2,5a |
length lever mm
101-200
steering height mm
0-100
connection length mm
401-500
fixing
dashboard
type
single
fitting position
lh
technology
microswitch

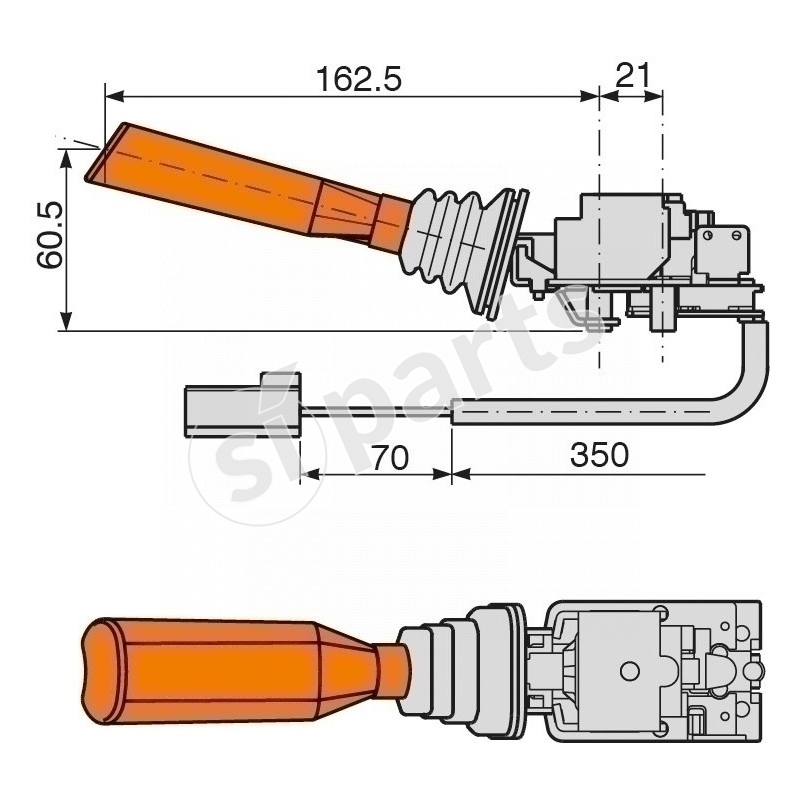

length lever mm detail
162
steering height mm detail
60
connection length mm detail
420
model type
serie 316
function - forward gear
attivo
function - neutral
attivo
function - reverse gear
attivo
function - block
attivo
