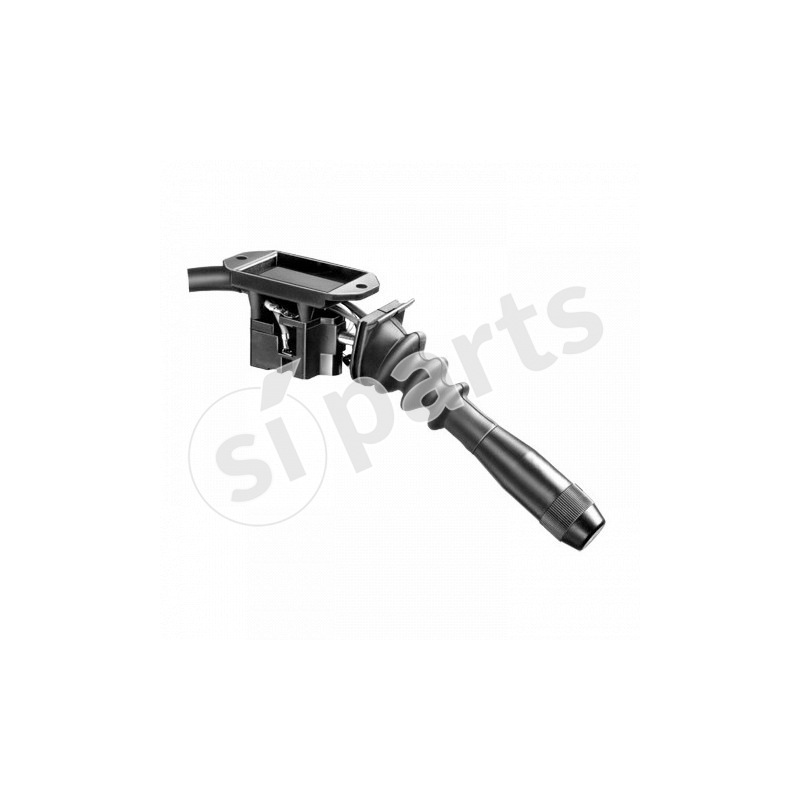

The image shown here is for illustrative purposes only.
SHIFTERS
Code: 01.547.000.01
Doc. Code: 01-547-000-01
€122.47
Tax excluded
(149.41 € Tasse incluse)
Quantity
- SSL 100% secure website
- Fast shipping with national and international couriers
description

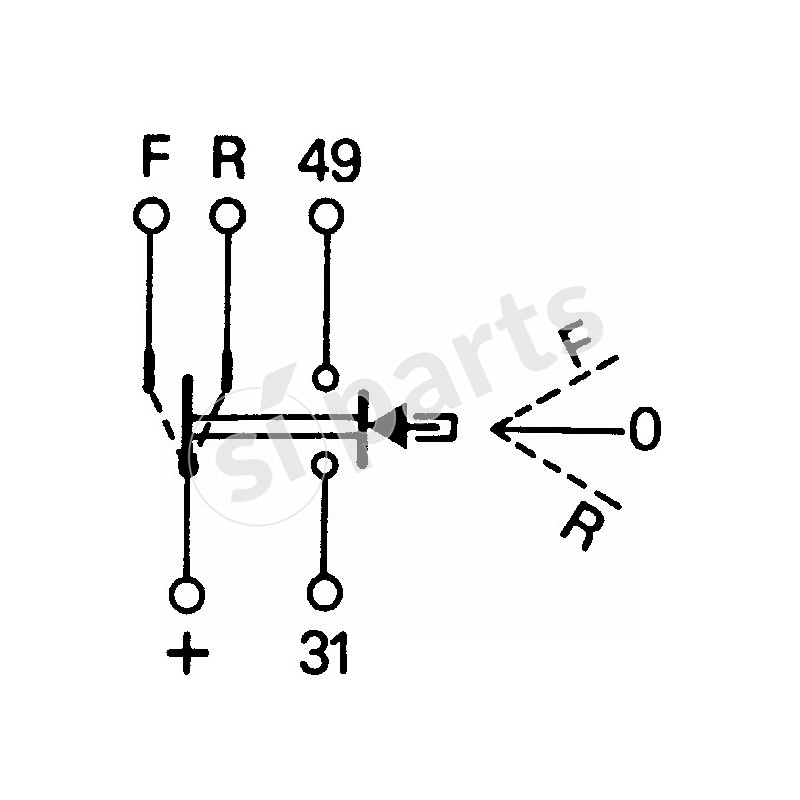

| function | peak load 12v | peak load 24v |
|---|---|---|
| forward gear | 8a | 5a |
| neutral | 8a | 5a |
| reverse gear | 8a | 5a |
| low gear | 8a | 5a |
| fast gear | 8a | 5a |
| speed 1 | 3a | 2a |

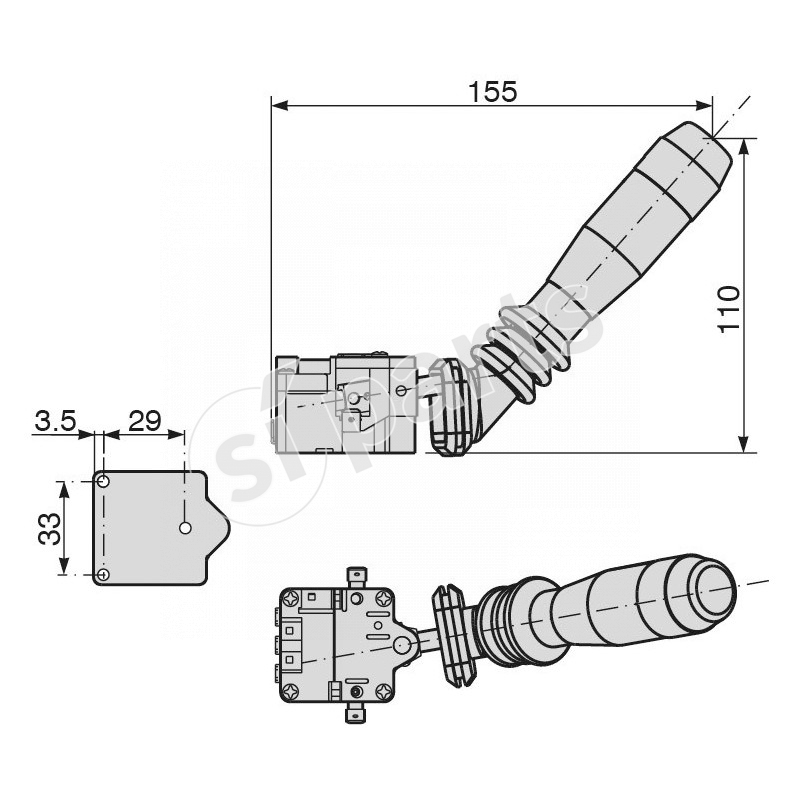

length lever mm
101-200
steering height mm
101-200
fixing
dashboard
type
single
fitting position
rh
technology
frontali in aria
length lever mm detail
155
steering height mm detail
110
model type
serie 203
function - horn
attivo
function - forward gear
attivo
function - reverse gear
attivo
