The image shown here is for illustrative purposes only.
REVERSE SWITCH
Code: 01.551.500.01
€355.40
Tax excluded
(433.59 € Tasse incluse)
Quantity
- SSL 100% secure website
- Fast shipping with national and international couriers
description

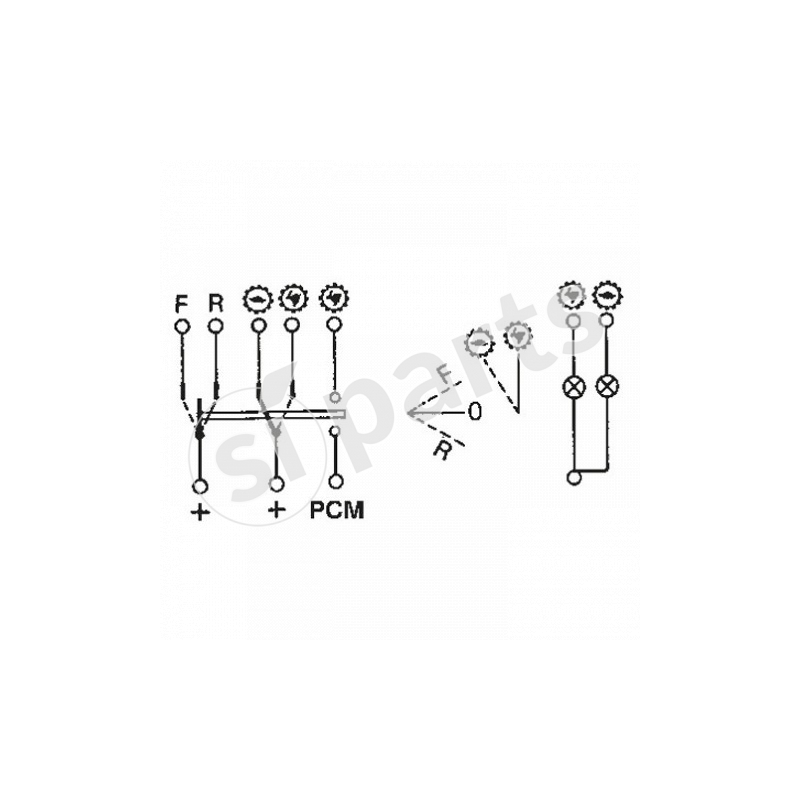

| function | peak load 12v | peak load 24v |
|---|---|---|
| forward gear | 8a | 4a |
| neutral | 8a | 4a |
| reverse gear | 8a | 4a |
| low gear | 8a | 4a |
| fast gear | 8a | 4a |
| gear speed | 3a | 1,5a |

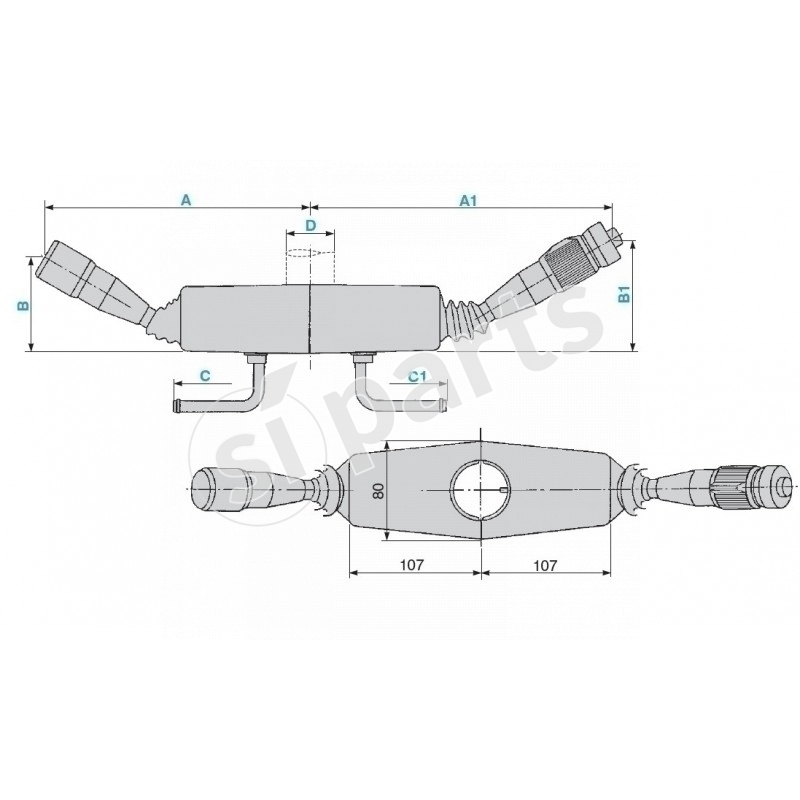

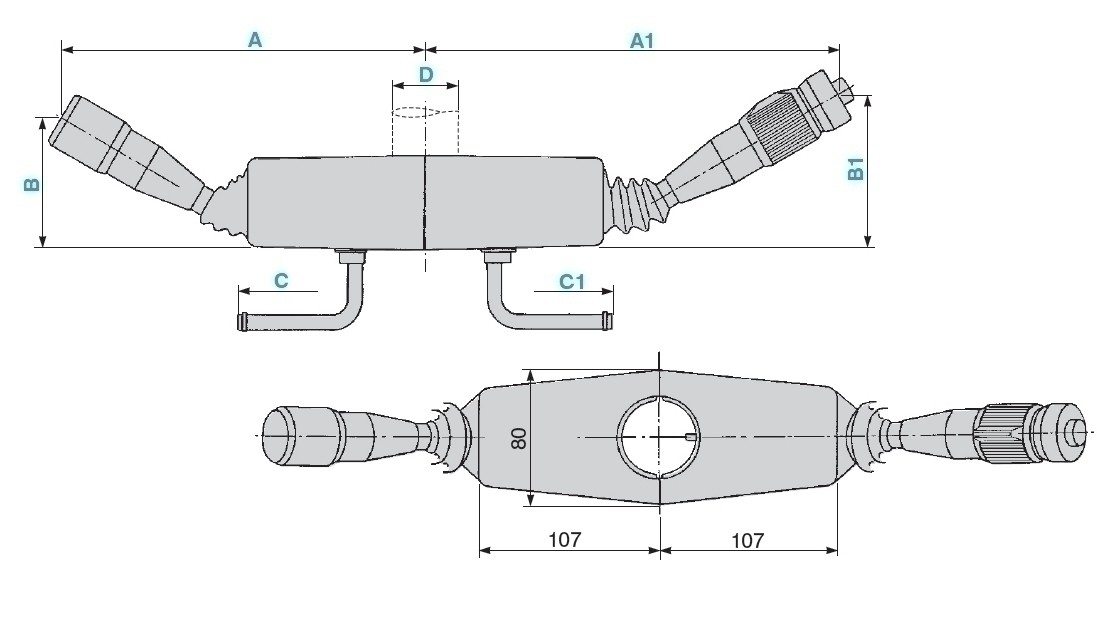

length lever mm
201-300
steering height mm
0-100
connection length mm
801-900
type
single
fitting position
lh
technology
frontali in aria
length lever mm detail
256
steering height mm detail
95
connection length mm detail
900
model type
serie 240
function - fast gear
attivo
function - low gear
attivo
function - gear speed
attivo
function - forward gear
attivo
function - reverse gear
attivo
