The image shown here is for illustrative purposes only.

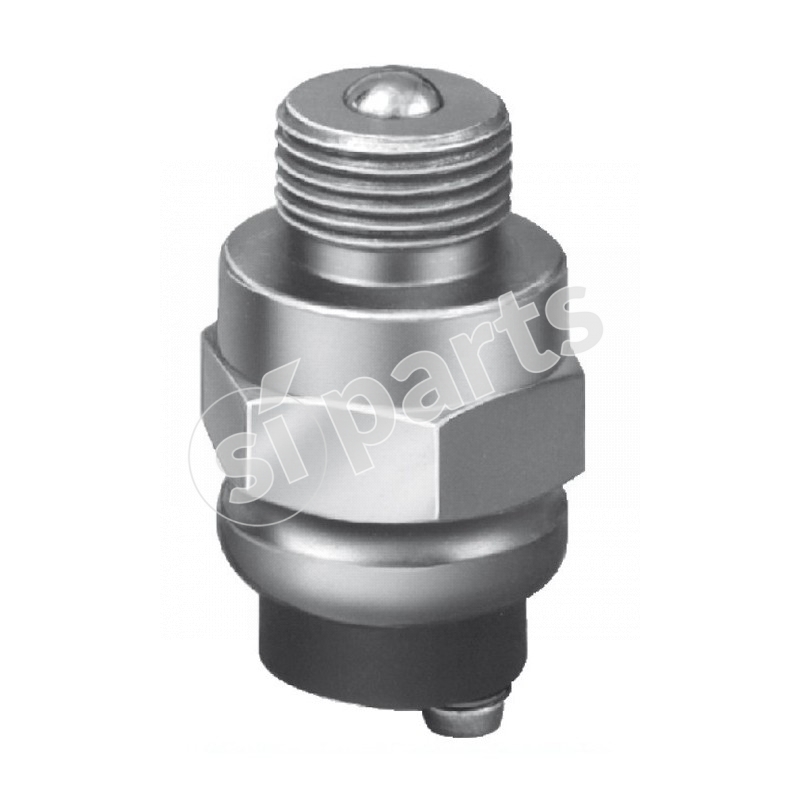

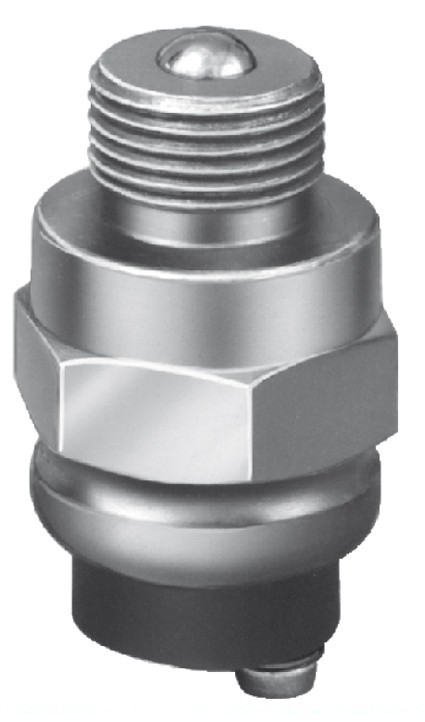

NORMALLY OPEN BALL PUSH BUTTON SWITCH
Code: 17.230.000.01
Doc. Code: 17-230-000-01
Pack 5 pieces.
€305.50
(€61.10 Cad.)
Tax excluded
(372.71 € Tasse incluse)
Quantity
- SSL 100% secure website
- Fast shipping with national and international couriers
description
| rated voltage | max direct current (a) | peak current 5" (a) | sealing (iec 529) | operating temperature (°c) | n° life cycles |
|---|---|---|---|---|---|
| 12 v | 20 a resistivi/resitive | 30 a | ip 67 | -20° ÷ +40° | 100.000 |
| 24 v | 10 a resistivi/resistive | 20 a | ip 67 | -20° ÷ +40° | 100.000 |
type of button
ball
switch mode
normally open

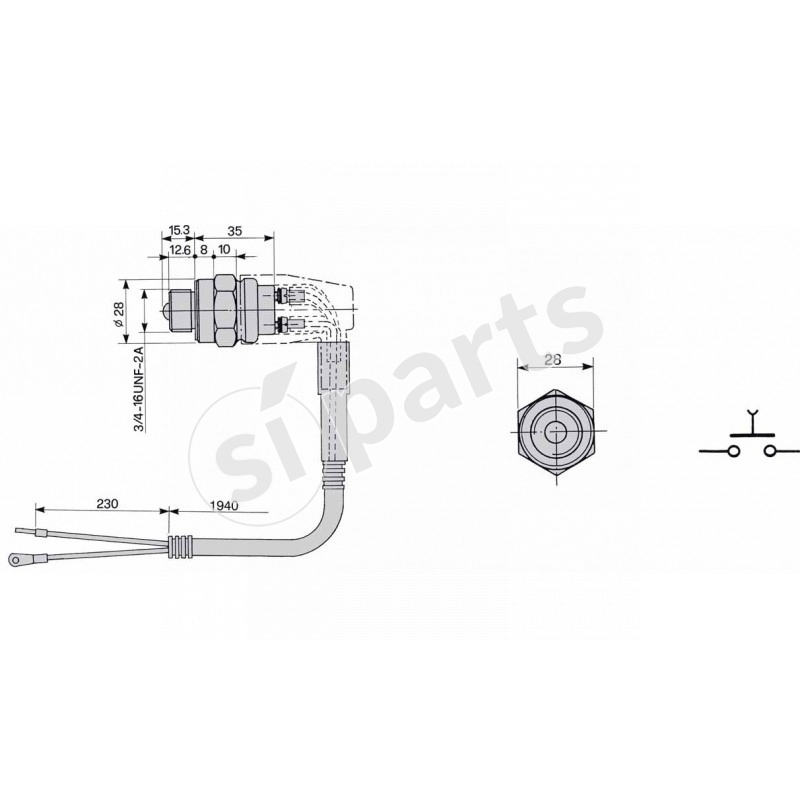

thread size
3/4 - 16 unf-2a+
