The image shown here is for illustrative purposes only.

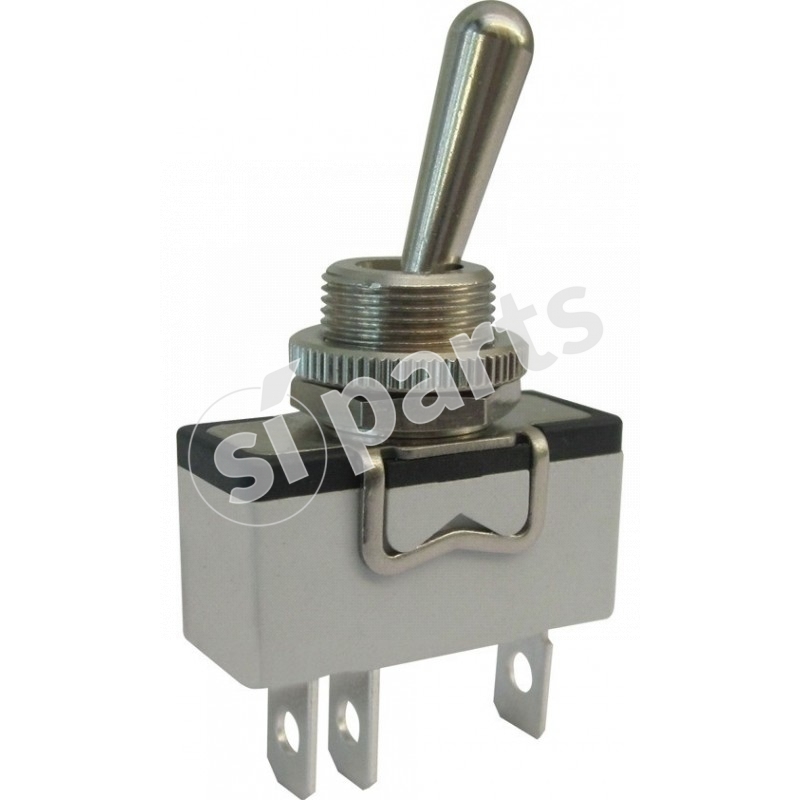

ON-OFF-ON SWITCH 2 MOMENTARY POSITIONS 3 BLADE TERMINAL
Code: 30.34.08957.01
€10.85
Tax excluded
(13.24 € Tasse incluse)
Quantity
- SSL 100% secure website
- Fast shipping with national and international couriers
description
| rated voltage | max direct current (a) | peak current 5" (a) | sealing (iec 529) | operating temperature (°c) | n° life cycles |
|---|---|---|---|---|---|
| 12v | 10a resistivi/resistive | ip53 | - 20°c ÷ + 55°c | 10.000 | |
| 24v | 5a resistivi/resistive | ip53 | - 20°c ÷ + 55°c | 10.000 |
terminals
3 blade terminals 6.35x0.8 mm.
nr. position
2 momentary positions
