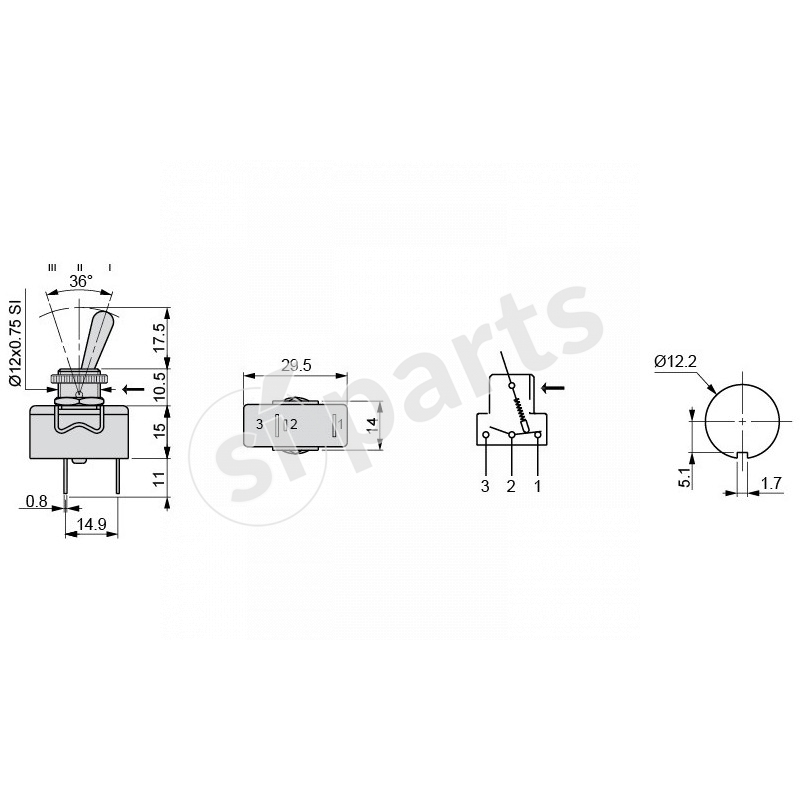

The image shown here is for illustrative purposes only.
SWITCH
Code: 30.34.10300.01
€13.00
Tax excluded
(15.86 € Tasse incluse)
Quantity
- SSL 100% secure website
- Fast shipping with national and international couriers
description
| rated voltage | max direct current (a) | peak current 5" (a) | sealing (iec 529) | operating temperature (°c) | n° life cycles |
|---|---|---|---|---|---|
| 12v | 10 a resistivi/resistive | ip53 | - 20°c ÷ + 55°c | 10.000 | |
| 24v | 5 a resistivi/resistive | ip53 | - 20°c ÷ + 55°c | 10.000 |
terminals
2 blade terminals 6.35x0.8 mm.
nr. position
1 momentary position
tighten torque
1,50 nm
max panel thickness
4,5 mm
