The image shown here is for illustrative purposes only.

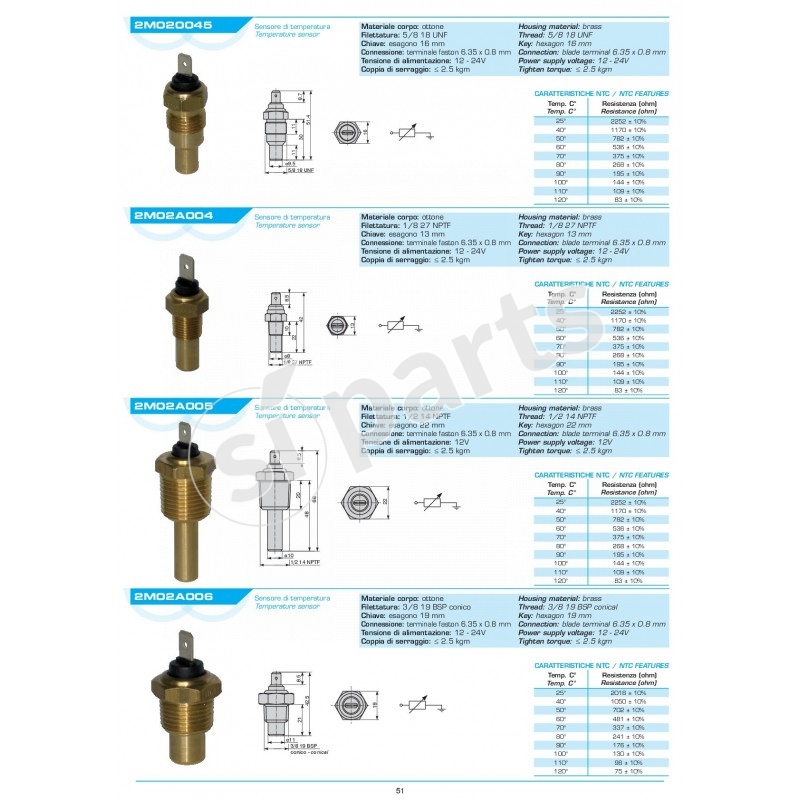

TEMPERATURE SENDER
Code: 2m02a005.01
Doc. Code: 2M02A005
€21.95
Tax excluded
(26.78 € Tasse incluse)
Quantity
- SSL 100% secure website
- Fast shipping with national and international couriers
description

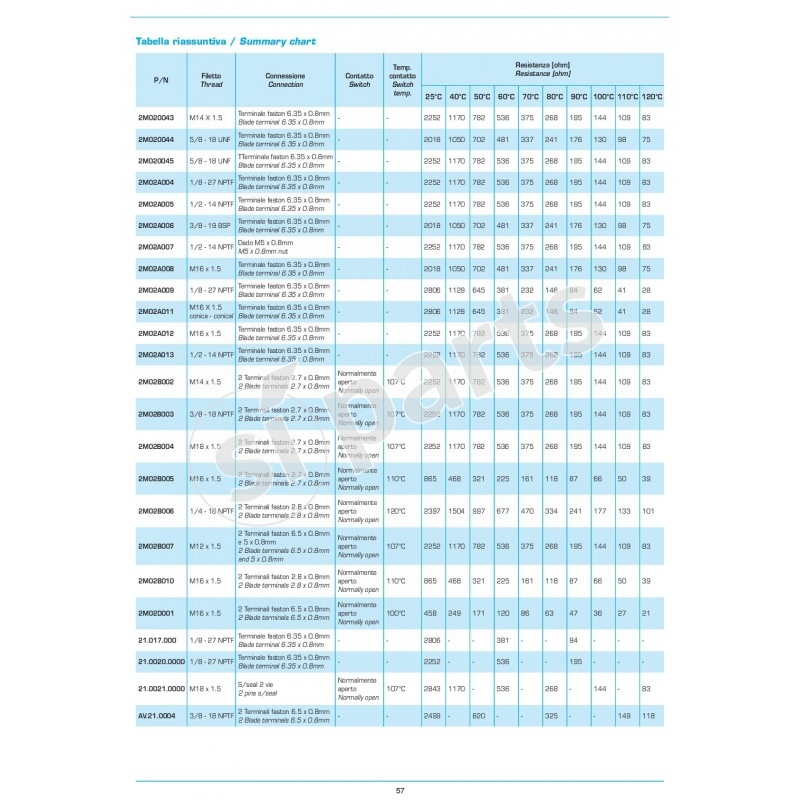

| temperature (°c) | resistance (ohm) |
|---|---|
| 25° | 2252 ± 10% |
| 40° | 1170 ± 10% |
| 0° | 782 ± 10% |
| 60° | 536 ± 10% |
| 70° | 375 ± 10% |
| 80° | 268 ± 10% |
| 90° | 195 ± 10% |
| 100° | 144 ± 10% |
| 110° | 109 ± 10% |
| 120° | 83 ± 10% |
housing material
brass
thread
1/2 14 nptf
key
exagon 22 mm.
connection
blade terminal 6.35x0.8 mm.
power supply voltage v
12-24v
tighten torque
<=2.5 kgm
