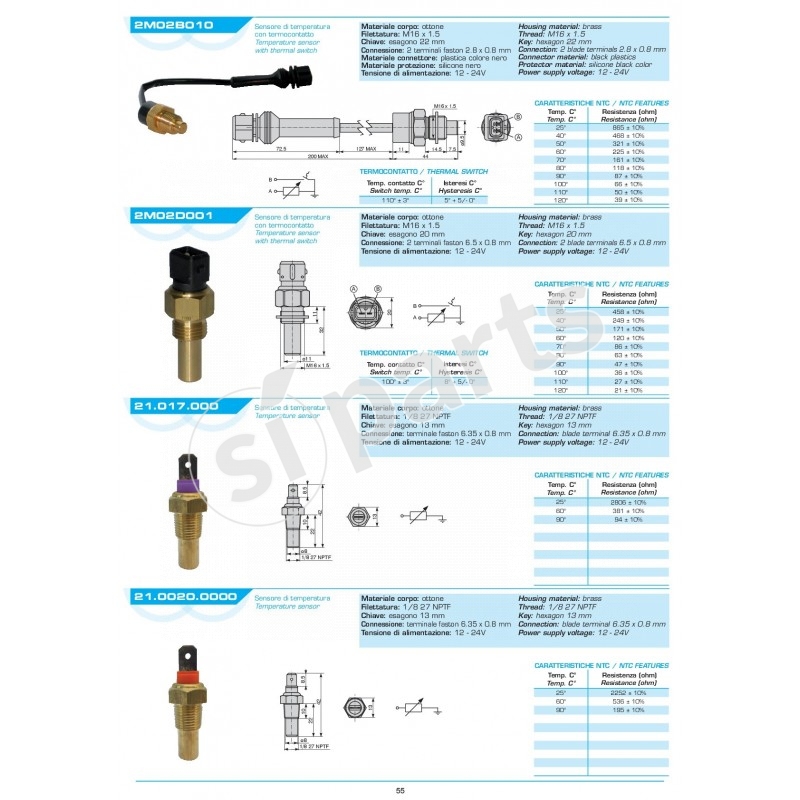

TERMIST+THERMO CONT 110 M16X1,5 SHEATH
Code: 2M02B01000.02
Doc. Code: 2M02B010-02
€70.35
Tax excluded
(85.83 € Tasse incluse)
Quantity
- SSL 100% secure website
- Fast shipping with national and international couriers
description

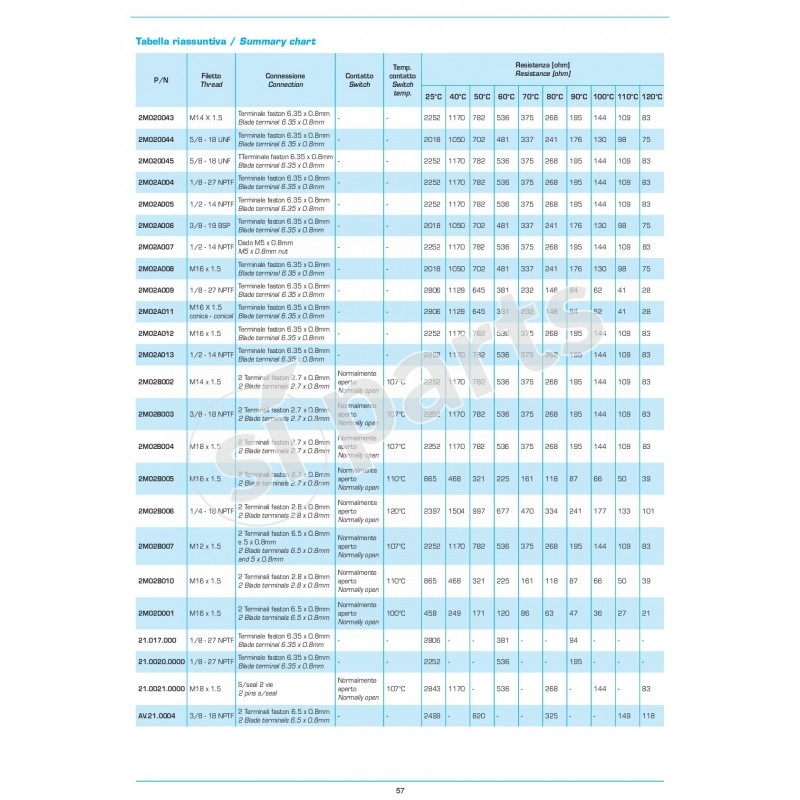

| temperature (°c) | resistance (ohm) |
|---|---|
| 25° | 865 ± 10% |
| 40° | 468 ± 10% |
| 50° | 321 ± 10% |
| 60° | 225 ± 10% |
| 70° | 161 ± 10% |
| 80° | 118 ± 10% |
| 90° | 87 ± 10% |
| 100° | 66 ± 10% |
| 110° | 50 ± 10% |
| 120° | 39 ± 10% |
housing material
brass
thread
m16 x 1.5
key
exagon 22 mm.
connection
2 blade terminals 2.8x0.8 mm
power supply voltage v
12-24v
temp. contatto °c
110° ± 3°
esis
5° + 5/- 0°
connector material
black plastic
protector material
silicone black color
