TERA 7 FLEX DISPLAY

tera.7.flex

Code: tera.7.flex

CONTACT US FOR MORE INFORMATION

  • SSL 100% secure website SSL 100% secure website
  • Fast shipping with national and international couriers Fast shipping with national and international couriers
Sito sicuro | Pagamento sicuro

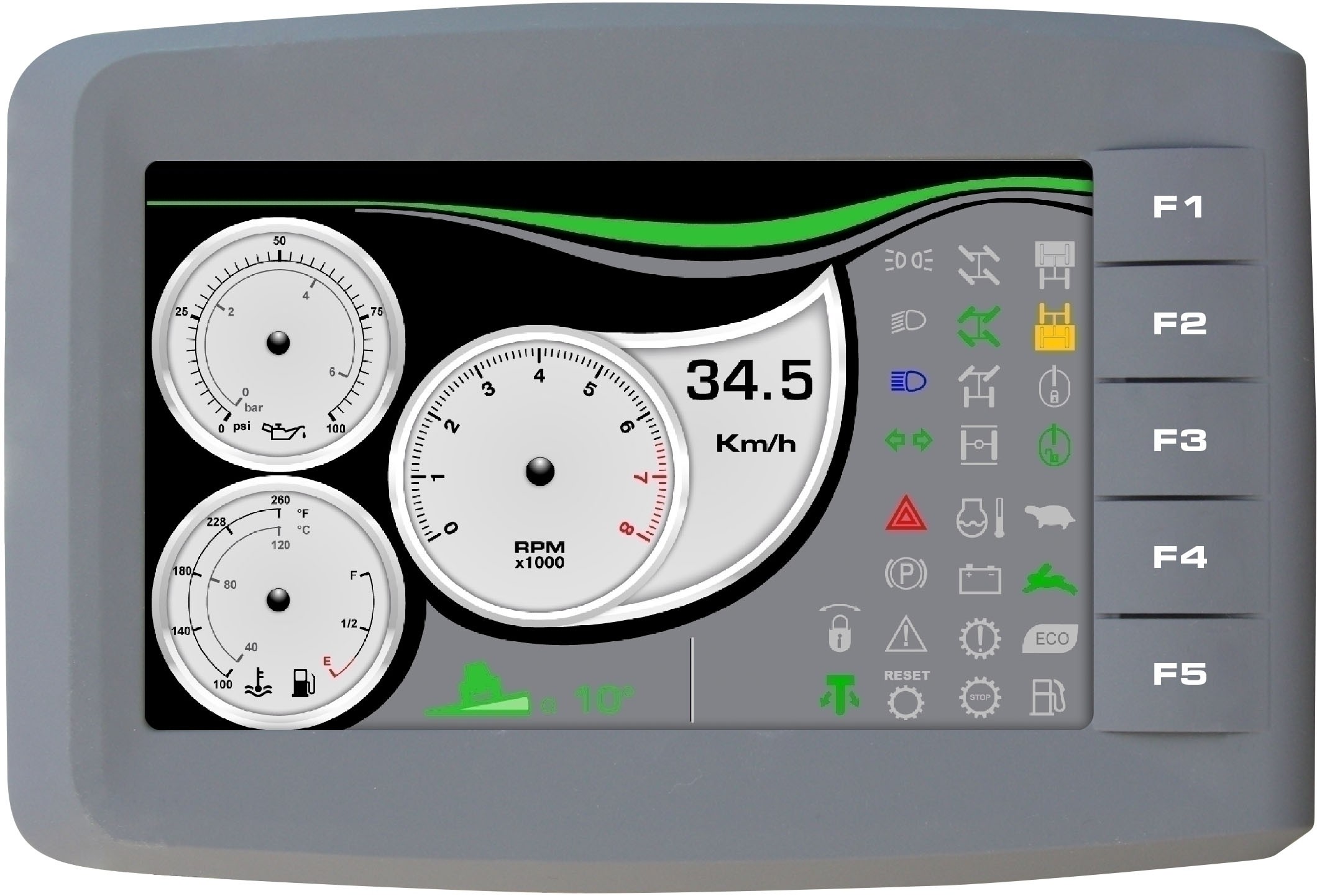

Description TERA 7" FLEX is a monitor with a 7" (WVGA 800x480) display with LED technology and 32 bit ARM processor.
It could be installed both horizontally and vertically depending on the customer needs. It is equipped with 5 keys or without any key and it is provided with a waterproof glass-on-glass scratchproof touch-screen as optional. It has been designed to meet the harsh environment requests of any mobile machines. Based on Linux OS, TERA 7" Flex is the ideal HMI solution for any middle-high end application. It is provided with two PAL/NTSC video camera input, USB port, and two CAN-bus.
TERA 7" Flex is fully programmableusing VT3 software development tool, COBO proprietary IDE, that combines intuitive WYSIWYG graphic programming with IEC61131 standard for I/O management.

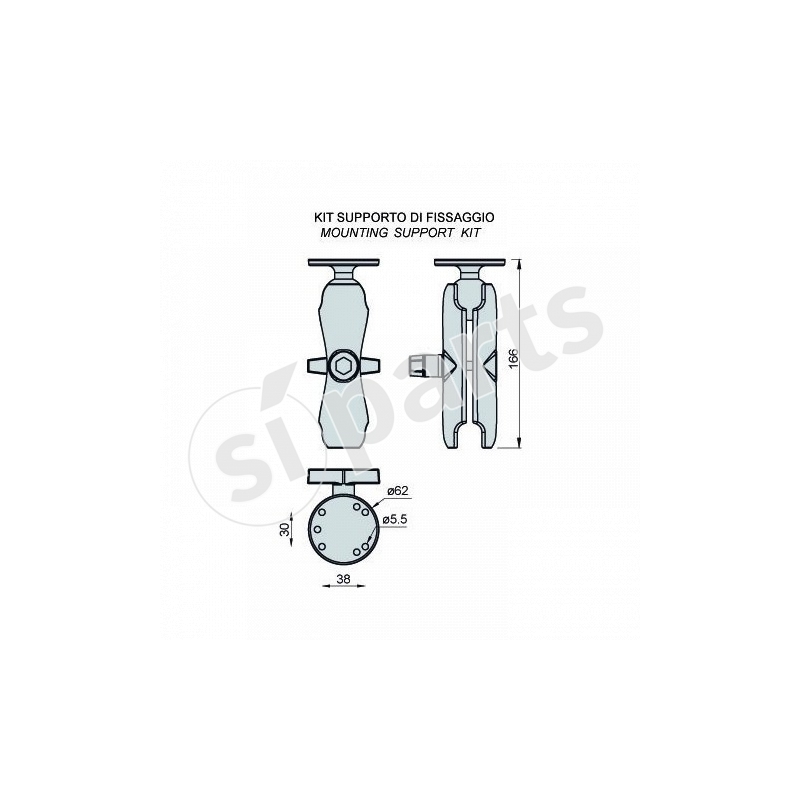

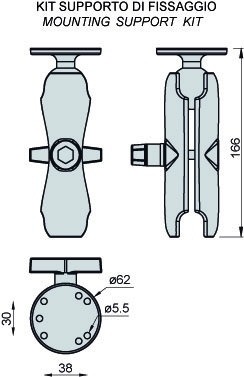

TERA 7" Flex can be installed out-dash with its specific articulated supports.

APPLICATIONS

- Excavators

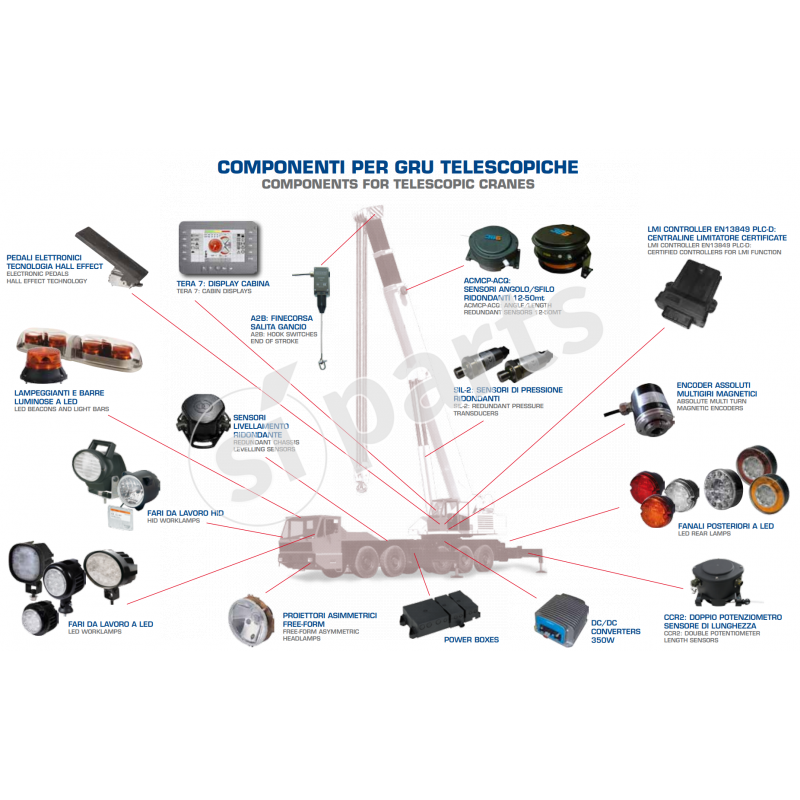

- Telescopic cranes
- Front loaders
- Foundation machines
KEYS
5 KEYS IN THE RIGHT SIDE
WITHOUT KEYS
POWER SUPPLY VOLTAGE V
8 - 32V
OPERATING TEMPERATURE
- 40°C ÷ + 80°C
STORAGE TEMPERATURE
- 40°C ÷ + 85°C
DISPLAY
TFT ACTIVE MATRIX COLOR DISPLAY, STANDARD WVGA
DIAGONAL SIZE: 7
RESOLUTION 800 X 480 PIXEL
ACTIVE AREA 152,4 X 91,4 MM
BACKLIGHT WHITE LED
CONTRAST RATIO: 500
- VIEWING ANGLE HORIZONTAL: 60
VIEWING ANGLE VERTICAL: 50
CONTROL SYSTEM
Microprocessor 32 bit Freescale ARM11, 532MHz
Ram memory DDR2 128 Mb
Nand flash memory 256 Mb
Internal Watchdog
Real time clock
Operating system Linux embedded
CONNECTIVITY
2 CAN-bus
1 USB port on rear connector
2 video input PAL/NTSC individually activated
Resistive touch-screen glass on glass technology optional
Internal SD Card reader optional
1 buzzer
CONNECTOR
2 off M12, 8 poles
APPLICATIONS
Components for access platforms telescopic - cranes
Telehandlers
Forklift trucks
Earth moving machines
Trucks tractors - trailers
Agricultural vehicles
Combines
Mixer wagons
Fire fighting - rescue vehicles
Camper & caravan
Motorcycles - quad components
Electric vehicles - golf cart
Can-bus boat global control system

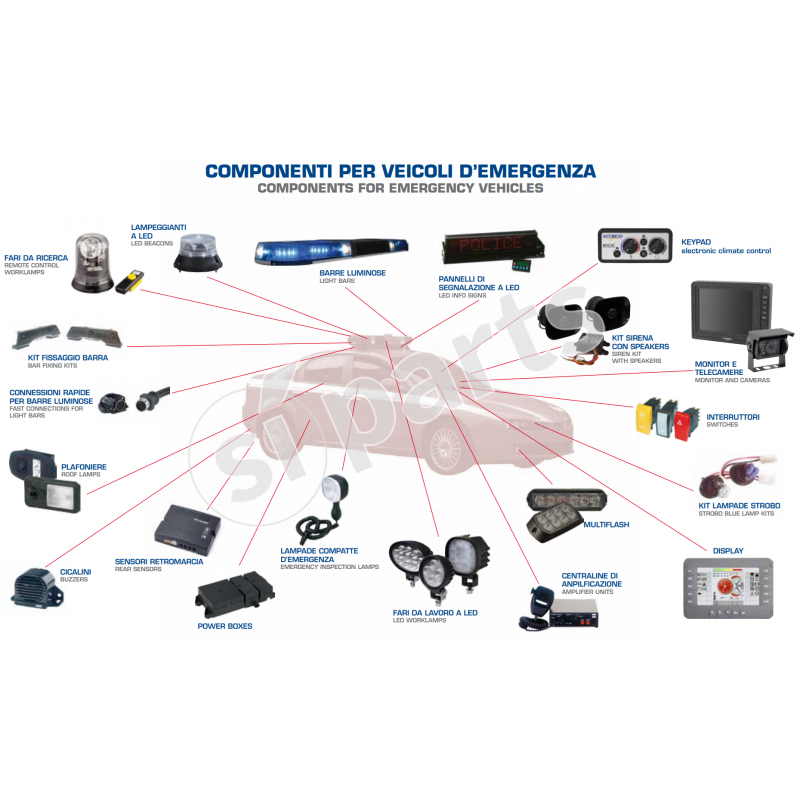

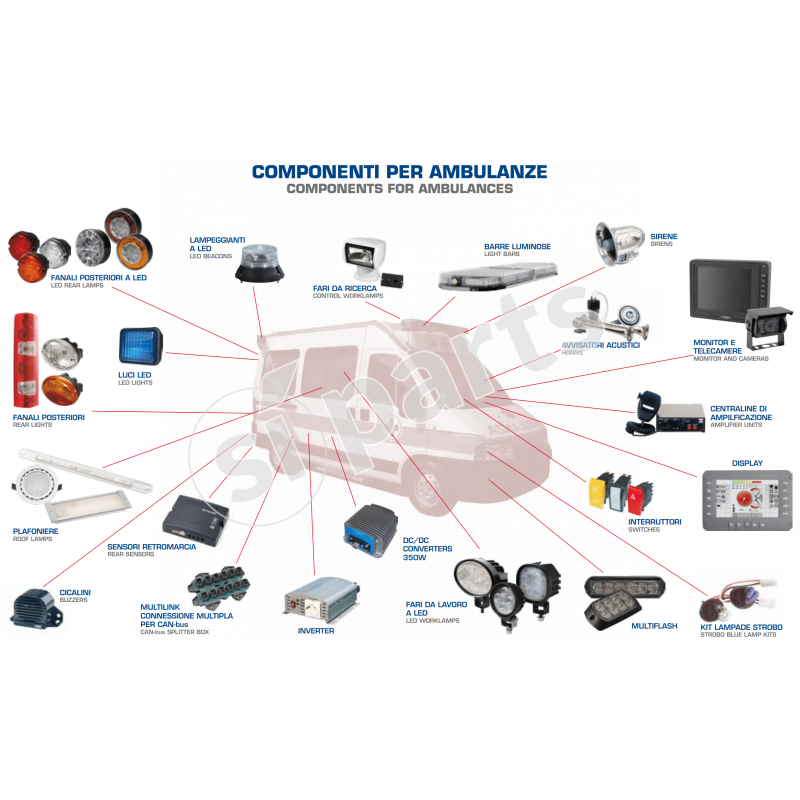

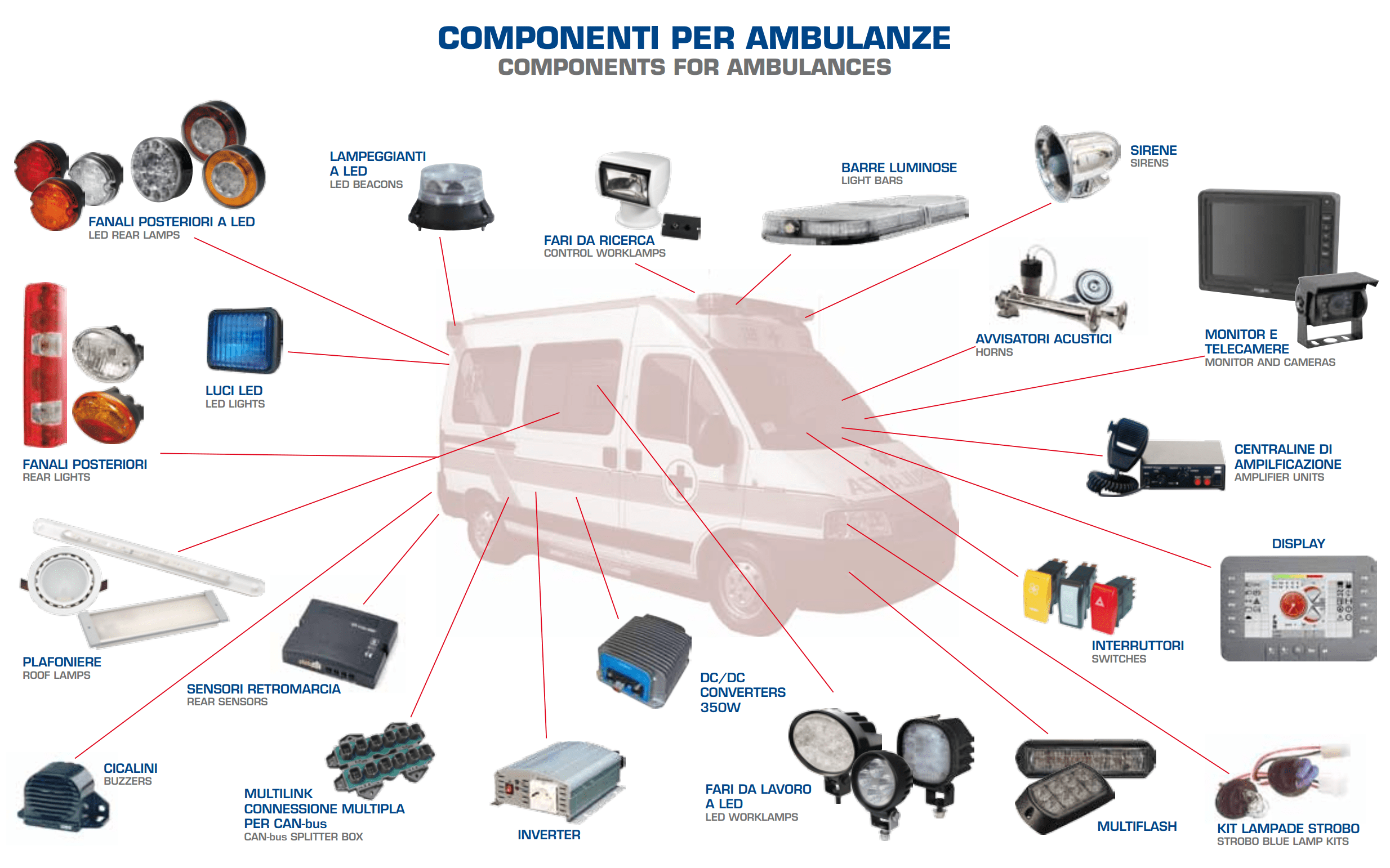

Ambulances - emergency vehicles
Defense vehicles
