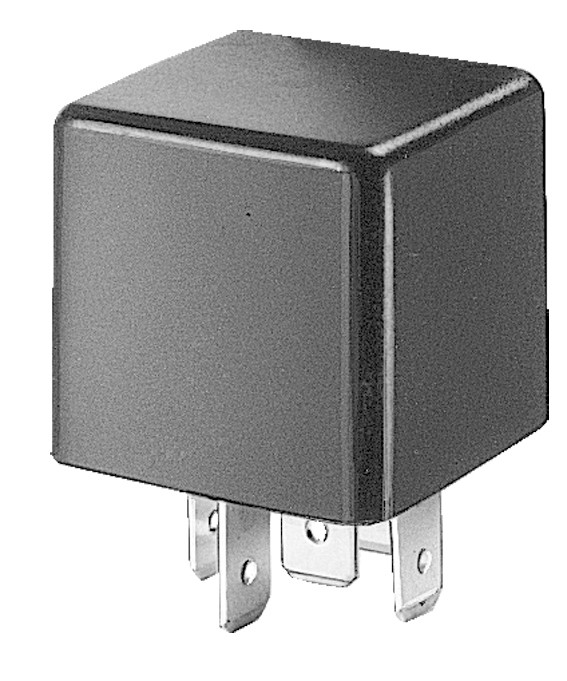

CIAM PRODUCTS- Original product
description
working
- when the control unit switches on, the output (pin 53s) is open.
- when the input is activated (pin t=+24v), the relay is energized
and the output is activated at +24v.
- after 15 min the output is deactivated. if during this 15-min time
other pulses get to the input, these are ignored.
- when the control unit switches on, the output (pin 53s) is open.
- when the input is activated (pin t=+24v), the relay is energized
and the output is activated at +24v.
- after 15 min the output is deactivated. if during this 15-min time
other pulses get to the input, these are ignored.
power supply voltage v
24v
delay
15m
APPLICATIONS
Components for access platforms telescopic - cranes
Telehandlers
Forklift trucks
Earth moving machines
Trucks tractors - trailers
Agricultural vehicles
Combines
Mixer wagons
Fire fighting - rescue vehicles
Camper & caravan
Motorcycles - quad components
Electric vehicles - golf cart
Can-bus boat global control system
Ambulances - emergency vehicles
Defense vehicles
1006038
Code: 00117134.01
Doc. Code: 00117134_$2
