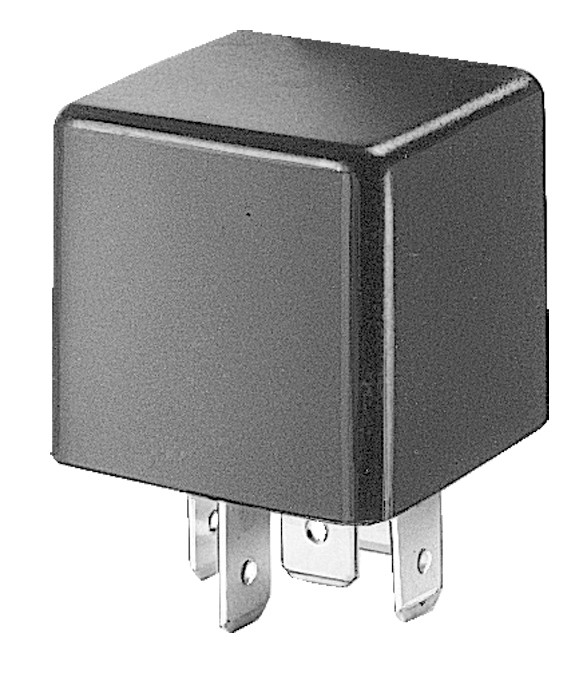

CIAM PRODUCTS- Original product
description working
- switching the control unit on, the relay is de-energized and the outputs are:
no contact (pin 53s) open, nc contact (pin 31) +12v.
- activating the input on pin t (+12v), the relay is energized and the outputs are:
no contact (pin 53s), nc contact (pin 31) open.
- after 10 seconds the relay is de-energized and the input is deactivated.
if during this 10-sec time other pulses get to the input, these are ignored.
- switching the control unit on, the relay is de-energized and the outputs are:
no contact (pin 53s) open, nc contact (pin 31) +12v.
- activating the input on pin t (+12v), the relay is energized and the outputs are:
no contact (pin 53s), nc contact (pin 31) open.
- after 10 seconds the relay is de-energized and the input is deactivated.
if during this 10-sec time other pulses get to the input, these are ignored.
power supply voltage v
12v
max load
5 a
delay
10s
APPLICATIONS
Components for access platforms telescopic - cranes
Telehandlers
Forklift trucks
Earth moving machines
Trucks tractors - trailers
Agricultural vehicles
Combines
Mixer wagons
Fire fighting - rescue vehicles
Camper & caravan
Motorcycles - quad components
Electric vehicles - golf cart
Can-bus boat global control system
Ambulances - emergency vehicles
Defense vehicles
1006040
Code: 00117136.02
Doc. Code: 00117136_$2
Pack 15 pieces.
