CIAM PRODUCTS- Original product

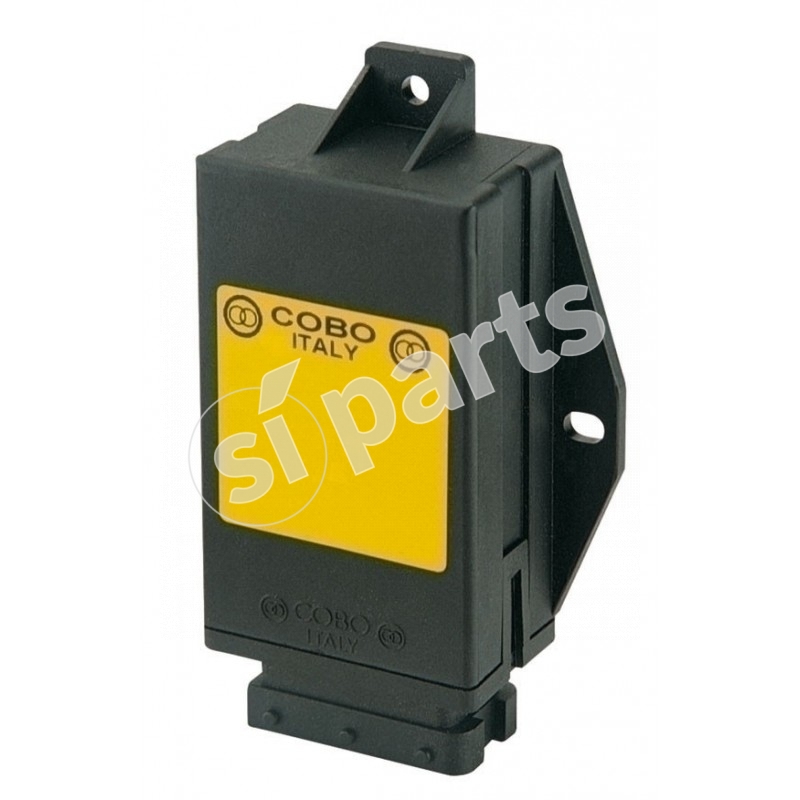

CONTROL UNIT
description
working
- in1 = on => out = +12v for 5 sec then out = open.
- in2 = on => out = square wave (+12v/open)
with ton=5s, toff=5s (f=0,1hz, dc 50%).
- in3 = on => out = square wave (+12v/open)
with ton=5s, toff=10s (f=0,066hz, dc 33%).
- in4 = on => out = square wave (+12v/open)
with ton=5s, toff=15s (f=0,05hz, dc 25%).
- in5 = on => out = square wave (+12v/open)
with ton=5s, toff=20s (f=0,04hz, dc 20%).
- in1 = on => out = +12v for 5 sec then out = open.
- in2 = on => out = square wave (+12v/open)
with ton=5s, toff=5s (f=0,1hz, dc 50%).
- in3 = on => out = square wave (+12v/open)
with ton=5s, toff=10s (f=0,066hz, dc 33%).
- in4 = on => out = square wave (+12v/open)
with ton=5s, toff=15s (f=0,05hz, dc 25%).
- in5 = on => out = square wave (+12v/open)
with ton=5s, toff=20s (f=0,04hz, dc 20%).
power supply voltage v
12v
max load
2 a
relay type
cycle
APPLICATIONS
Components for access platforms telescopic - cranes
Telehandlers
Forklift trucks
Earth moving machines
Trucks tractors - trailers
Agricultural vehicles
Combines
Mixer wagons
Fire fighting - rescue vehicles
Camper & caravan
Motorcycles - quad components
Electric vehicles - golf cart
Can-bus boat global control system
Ambulances - emergency vehicles
Defense vehicles
1027041
Code: 18.0126.0000.02
Doc. Code: 18-0126-0000-02
Pack 50 pieces.
