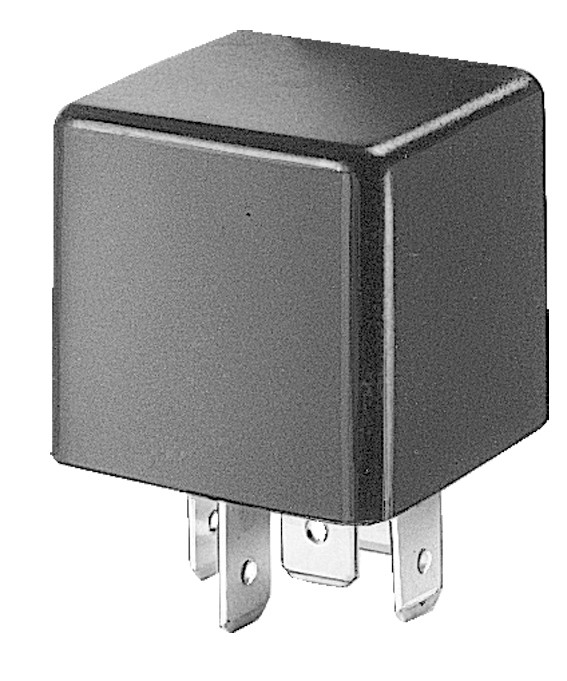

The image shown here is for illustrative purposes only.
RELAY
Code: 18.0208.0000.02
Doc. Code: 18-0208-0000-02
Pack 5 pieces.
€358.75
(€71.75 Cad.)
Tax excluded
(437.68 € Tasse incluse)
Quantity
- SSL 100% secure website
- Fast shipping with national and international couriers
description
working
- switching the control unit on, with no input (pin t=open), the relay is de-energized:
no contact (53s) open, nc contact (pin 31) + 12v (device without memory).
- activating the input on pin t (+12v), the relay is energized, and the outputs are:
no contact (pin 53s) + 12v, nc contact (pin 31) open.
- after 60 seconds, the relay is de-energized and the input is deactivated: no contact
(pin 53s) open, nc contact (pin 31) + 12v until a new input activation.
if during this 60-sec time other pulses get to the input, the output follows the input.
- switching the control unit on, with no input (pin t=open), the relay is de-energized:
no contact (53s) open, nc contact (pin 31) + 12v (device without memory).
- activating the input on pin t (+12v), the relay is energized, and the outputs are:
no contact (pin 53s) + 12v, nc contact (pin 31) open.
- after 60 seconds, the relay is de-energized and the input is deactivated: no contact
(pin 53s) open, nc contact (pin 31) + 12v until a new input activation.
if during this 60-sec time other pulses get to the input, the output follows the input.
power supply voltage v
12v
max load
5 a
delay
60s
