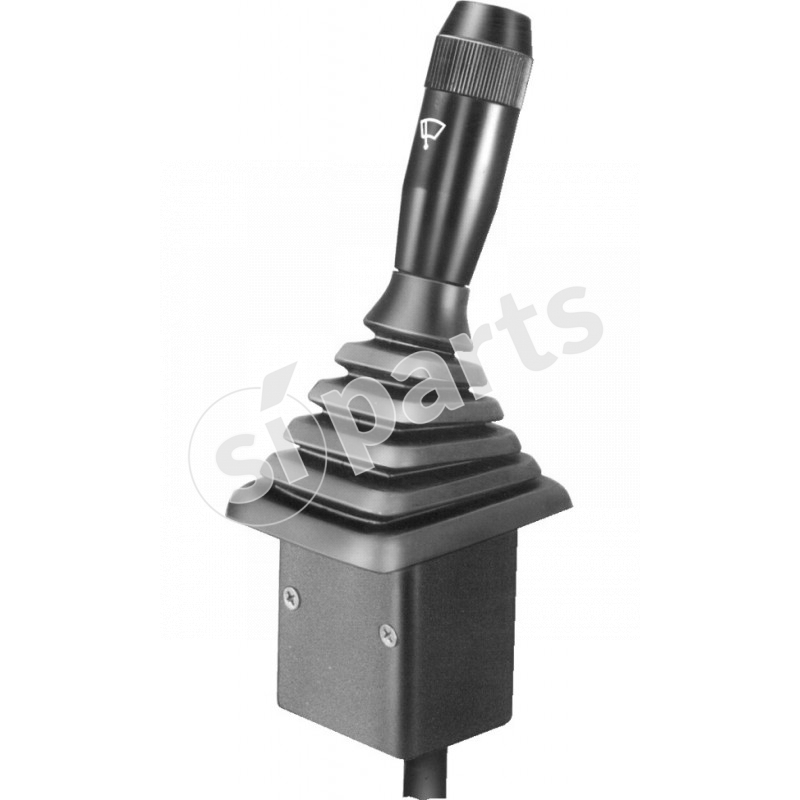

The image shown here is for illustrative purposes only.
STEERING COLUMN SWITCH
Code: 01.0766.0000.01
Doc. Code: 01-0766-0000-01
€127.30
Tax excluded
(155.31 € Tasse incluse)
Quantity
- SSL 100% secure website
- Fast shipping with national and international couriers
description
| function | peak load 12v | peak load 24v |
|---|---|---|
| windscreen washer | 5a | 3a |
| windscreen 1 | 8a | 5a |
| windscreen 2 | 9a | 6a |
| windscreen 3 | 5a | 3a |
| intermittent s | 8a | 5a |
length lever mm
0-100
steering height mm
0-100
connection length mm
701-800
fixing
dashboard
type
single
fitting position
rh
technology
frontali in aria

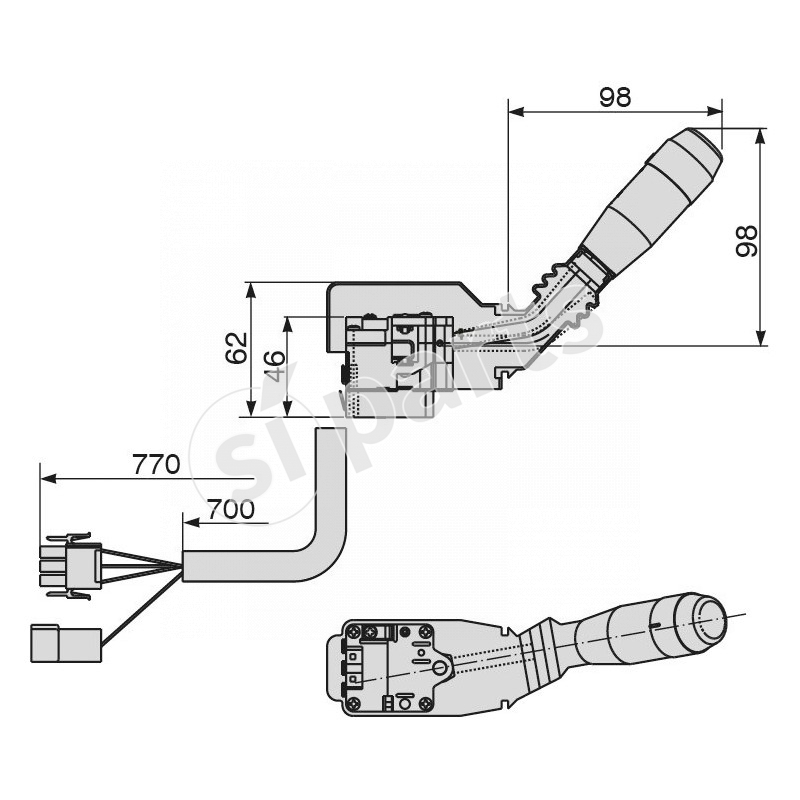

length lever mm detail
98
steering height mm detail
98
connection length mm detail
770
type of interior lever
metallic
lever covering
polyamide + functions symbols
type of cap
neoprene rubber
color of cap
black
protection housing
polyamide
model type
serie 190
function - windscreen washer
attivo
function - intermittent s
attivo
function - windscreen 1
attivo
function - windscreen 2
attivo
function - tergilunotto
attivo
function - tergilava lunotto
attivo
