The image shown here is for illustrative purposes only.
STEERING COLUMN SWITCH
Code: 01.276.600.01
Doc. Code: 01-276-600-01
€116.75
Tax excluded
(142.44 € Tasse incluse)
Quantity
- SSL 100% secure website
- Fast shipping with national and international couriers
description
| function | peak load 12v | peak load 24v |
|---|---|---|
| windscreen washer | 18a | 3a |
| windscreen 1 | 8a | 5a |
| windscreen 2 | 9a | 6a |
| windscreen 3 | 9a | 6a |

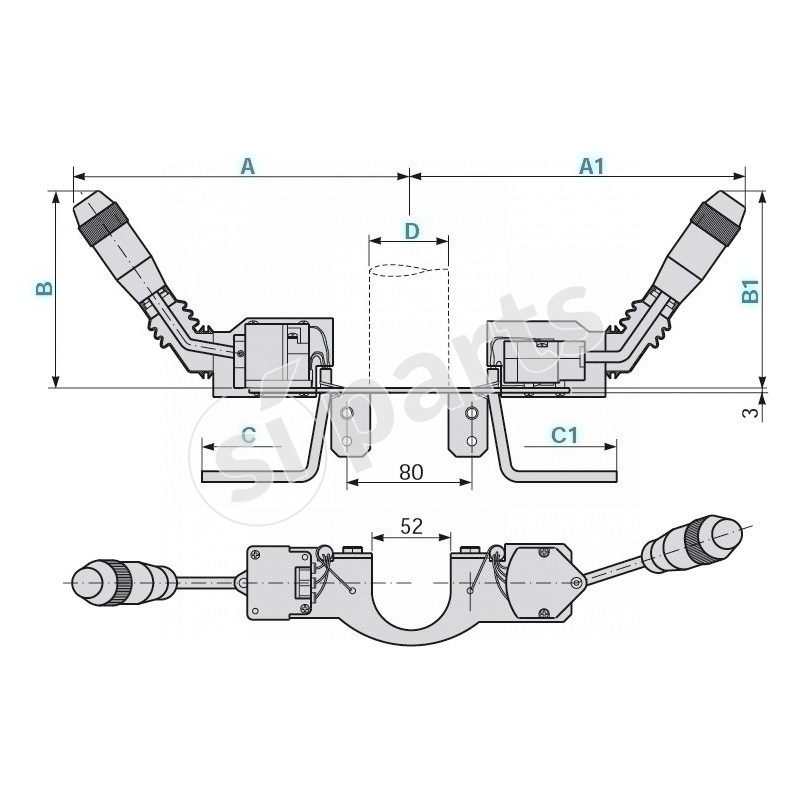

length lever mm
201-300
steering height mm
101-200
connection length mm
701-800
type
single
fitting position
rh
technology
frontali in aria
length lever mm detail
210
steering height mm detail
128

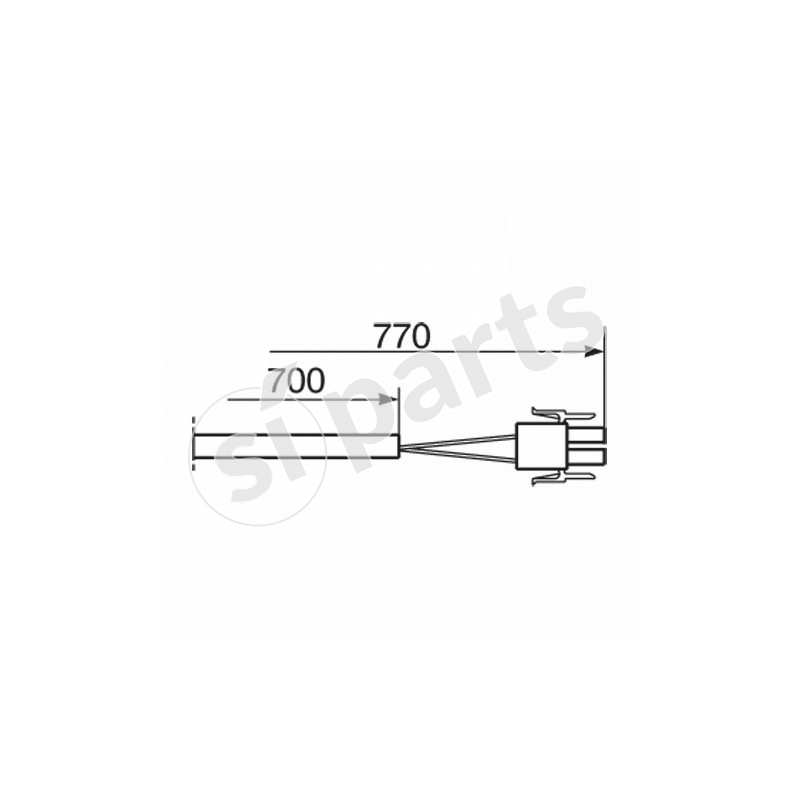

connection length mm detail
770
model type
serie 190
type of interior lever
metallic
lever covering
polyamide + functions symbols
type of cap
neoprene rubber
color of cap
black
protection housing
polyamide
rest bracket
zinc-plated steel

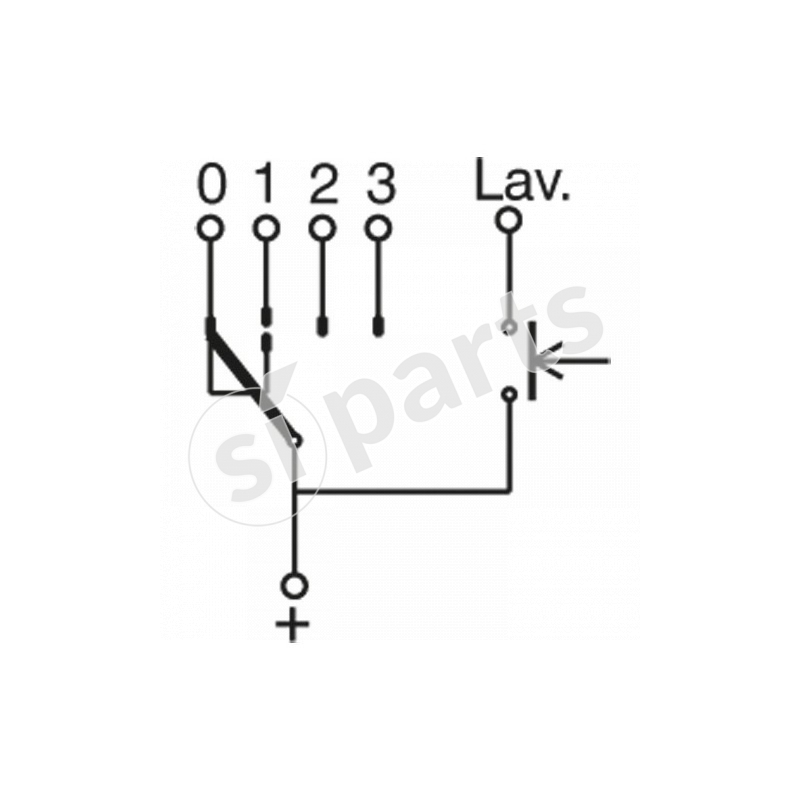

function - windscreen washer
attivo
function - windscreen 1
attivo
function - windscreen 2
attivo
function - windscreen 3
attivo
